Remove/Install Wi-Fi Antenna In Left Of Instrument Panel - AR82.85-P-0012ME
Model 167 With Code 549 (Connect 20 HIGH (NTG6))
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove trim at bottom for instrument panel or driver's side. | AR68.10-P-1501ME | |

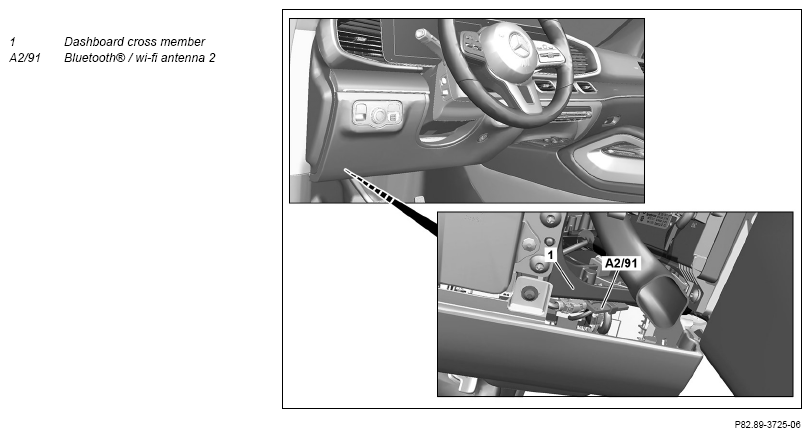

| 2 | Unclip Bluetooth® antenna 2 (A2/91) from instrument panel crossmember (1). | Fig 1 | |
| 3 | Release and disconnect electrical connector from Bluetooth® antenna 2 (A2/91). | ||
| 4 | Install in the reverse order. |
