Remove/Install Seat Ventilation Motors On Front Seat Cushion - AR91.30-P-1952ME

Model 167

With Code 401 (Climatised Front Seats)

Shown on driver seat

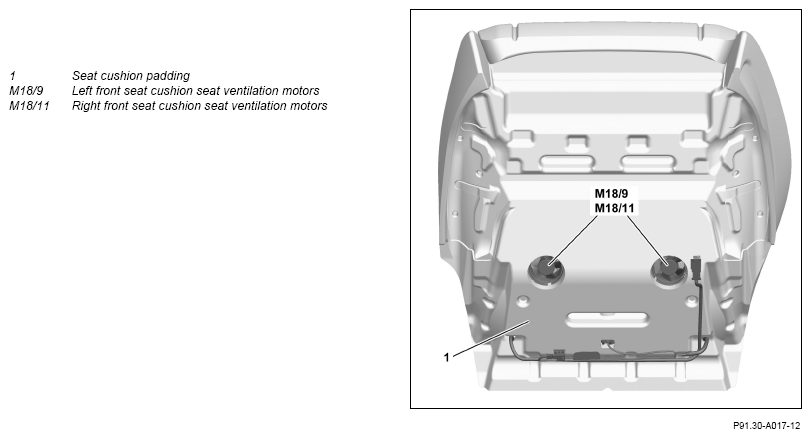

Fig 1: Seat Ventilation Motors On Front Seat Cushion Components Location - Model 167 With Code 401 (Shown On Driver Seat)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove seat cushion cover from seat cushion padding (1).	The front seat cushion seat ventilation motors (M18/9, M18/11) are integrated in the seat cushion padding (1) and can only be replaced together with the seat cushion padding (1).	AR91.18-P-1801ME
2	Install in the reverse order.
