Remove/Install Rear Side Airbag Unit - AR91.60-P-0694MEM

Model 167.9

With Code M036 (Maybach Version)

Shown on left side of vehicle

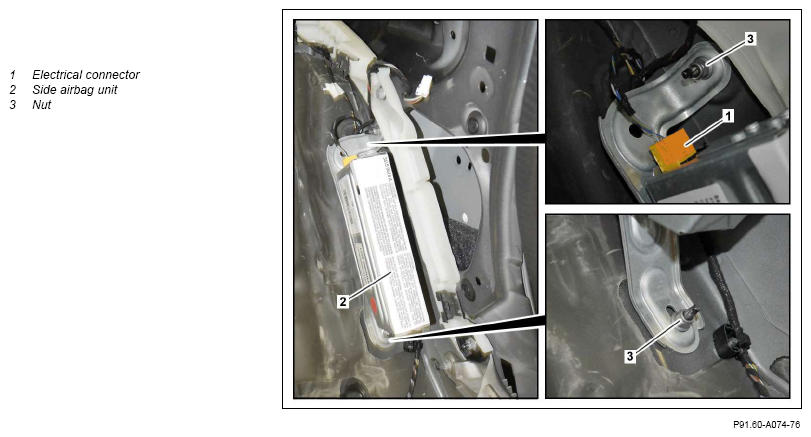

Fig 1: Rear Side Airbag Unit Components Location - Model 167.9 With Code M036 (Shown On Left Side Of Vehicle)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Remove rear passenger compartment side trim.		AR68.30-P-4780MEM
2	Disconnect ground line from battery.		AR54.10-P-0003ME
3	Release and disconnect electrical connector (1) from side airbag unit (2).	Check for correct engagement of electrical connector (1) on side airbag unit (2). Removal lever	Fig 2
4	Remove nuts (3).	Nut, rear sidebag unit to body	*BA91.60-P-1008-01R
5	Remove side airbag unit (2) from vehicle.
6	Install in the reverse order.
	Check
7	Check Supplemental Restraint System (SRS) using vehicle diagnosis system.
			AD00.00-P-2000-06ME
