Remove/Install Heat Mat On Seat Cushion In 3rd Seat Row - AR91.30-P-0025MEX
Model 167.9
with code 845 (Electrically folding 3rd seat row)
with code 886 (Seat heater for 3rd seat row)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove | |||
| 1 | Remove seat cushion cover. | AR91.18-P-0001MEX | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |

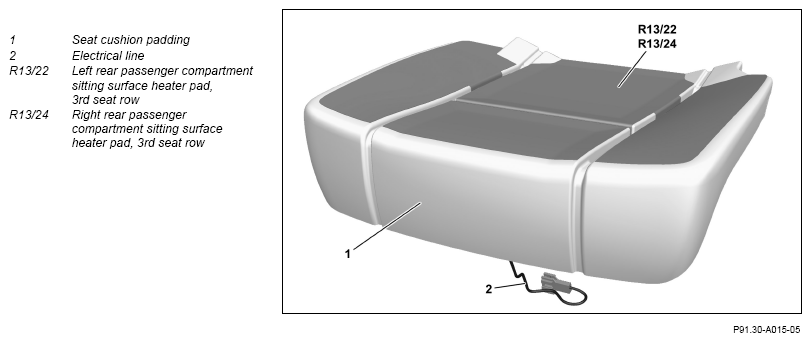

| 2 | Heat rear passenger compartment sitting surface heater pad (R13/22, R13/24) using heat gun and detach from seat cushion padding (1). | Ensure that the seat cushion padding (1) is not damaged. Otherwise the seat cushion padding (1) must be replaced. |
|
| 3 | Guide out electric line (2) through seat cushion padding (1) and remove rear passenger compartment sitting surface heater pad (R13/22, R13/24). | ||
| Install | |||
| 4 | Guide out electric line (2) through seat cushion padding (1) and align rear passenger compartment sitting surface heater pad (R13/22, R13/24) on seat cushion padding (1). | ||
| 5 | Glue on rear passenger compartment sitting surface heater pad (R13/22, R13/24) evenly starting on one side. | Do not expose the rear passenger compartment sitting surface heater pad (R13/22, R13/24) to any tension force. Otherwise the rear passenger compartment sitting surface heater pad (R13/22, R13/24) will be damaged and will malfunction. |
|
| 6 | Install seat cushion cover. | AR91.18-P-0001MEX |
