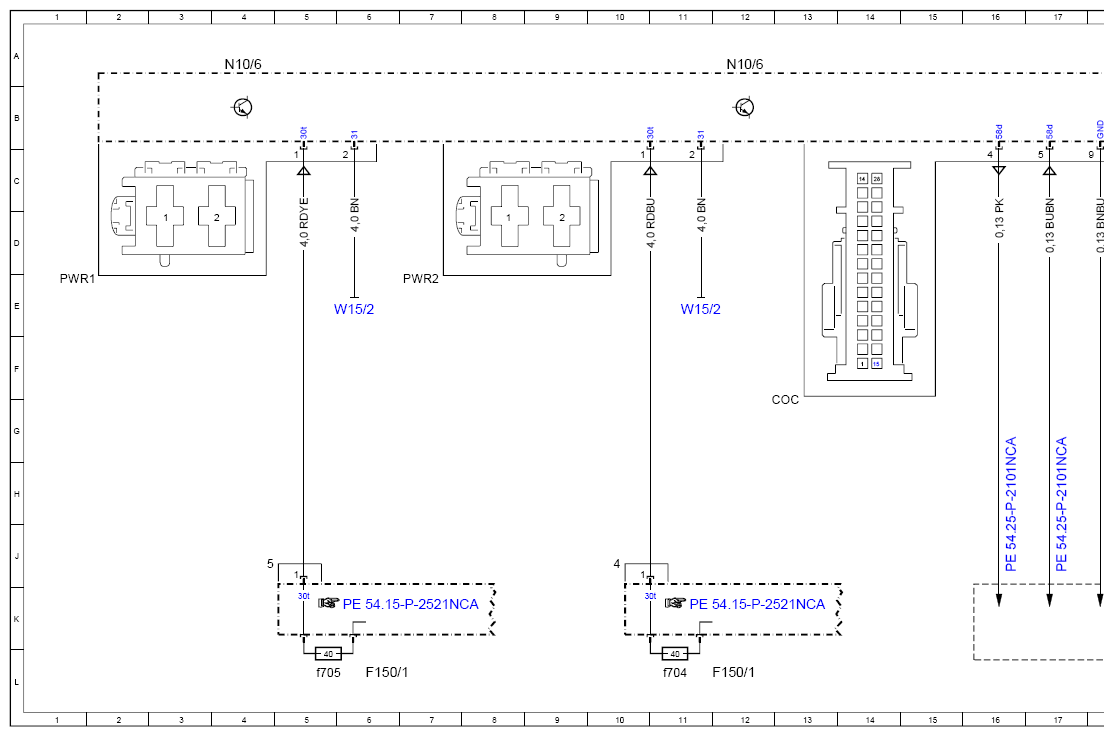

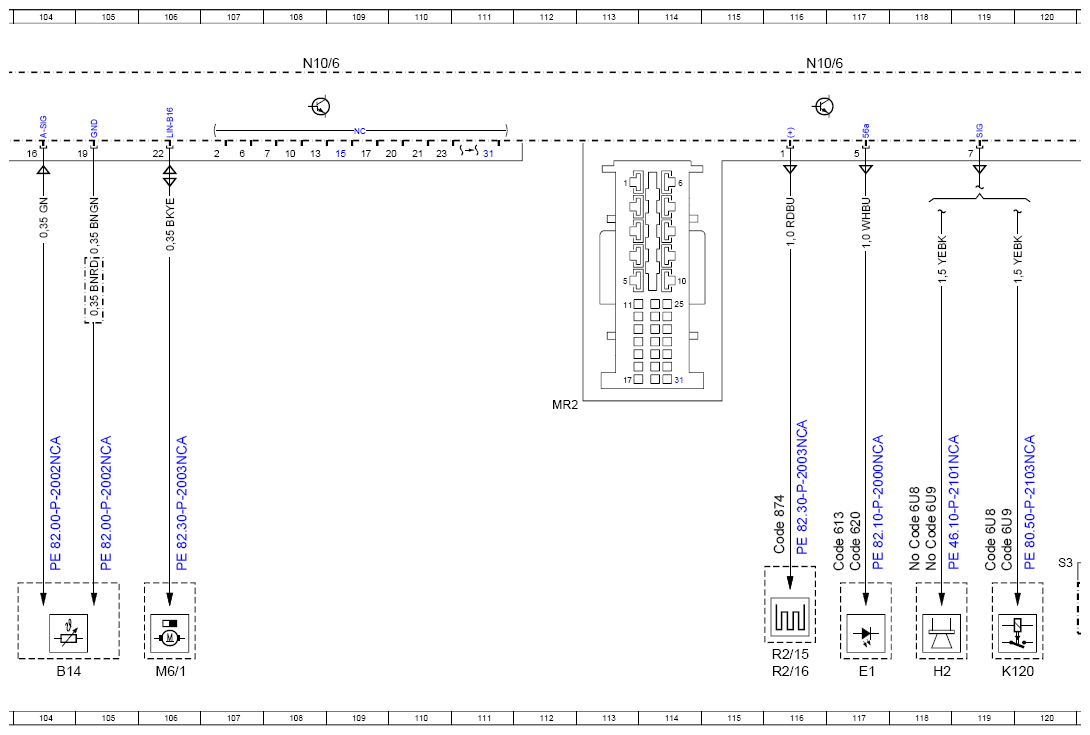

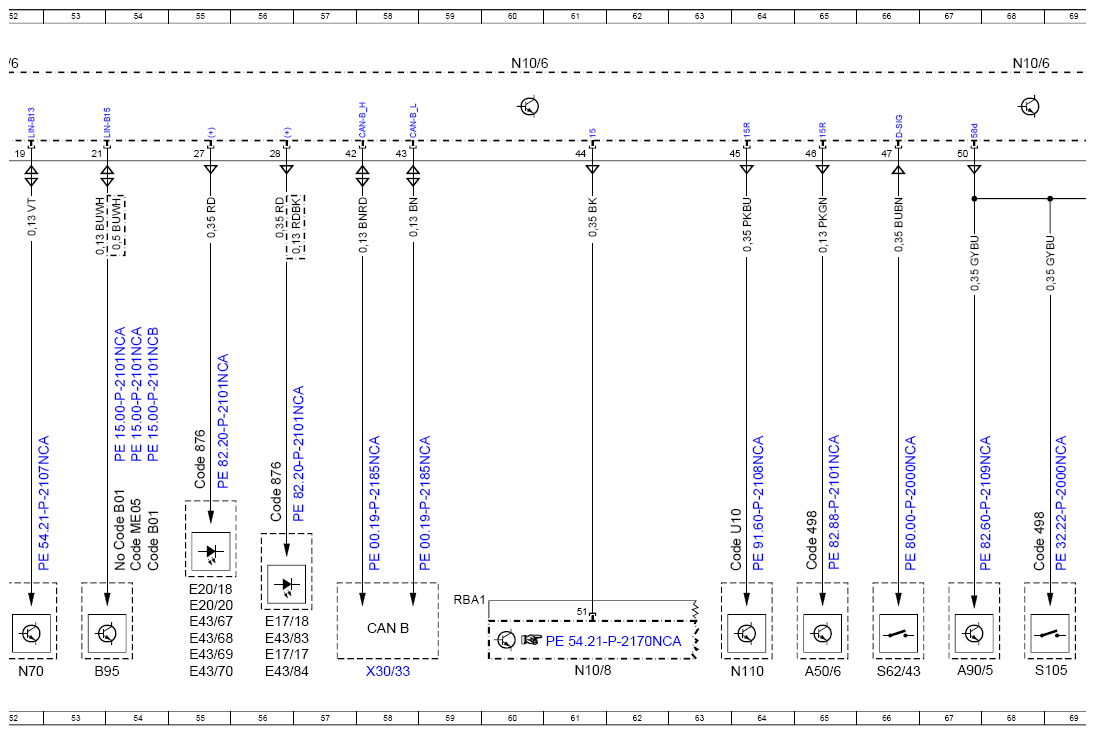

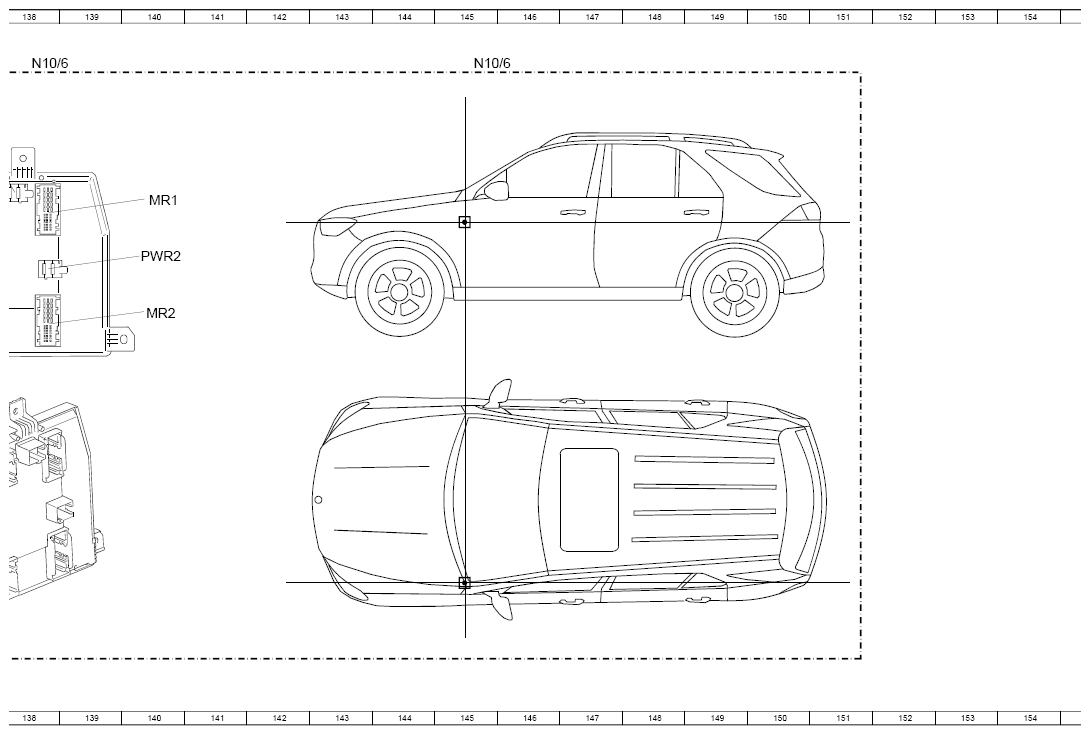

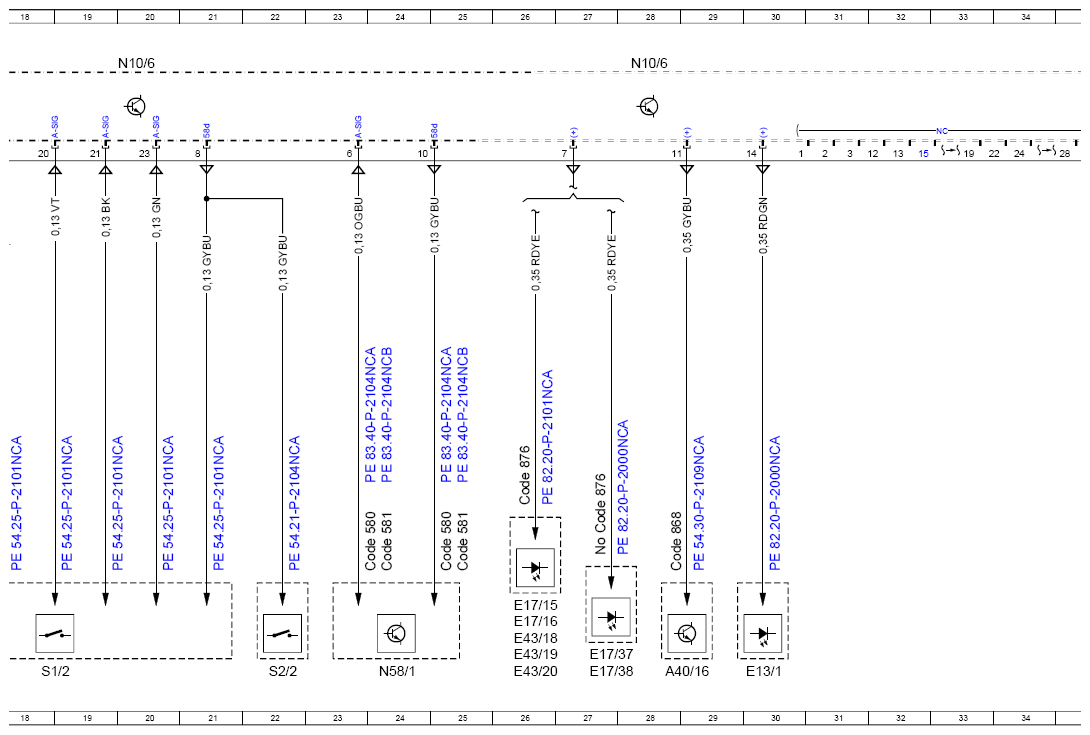

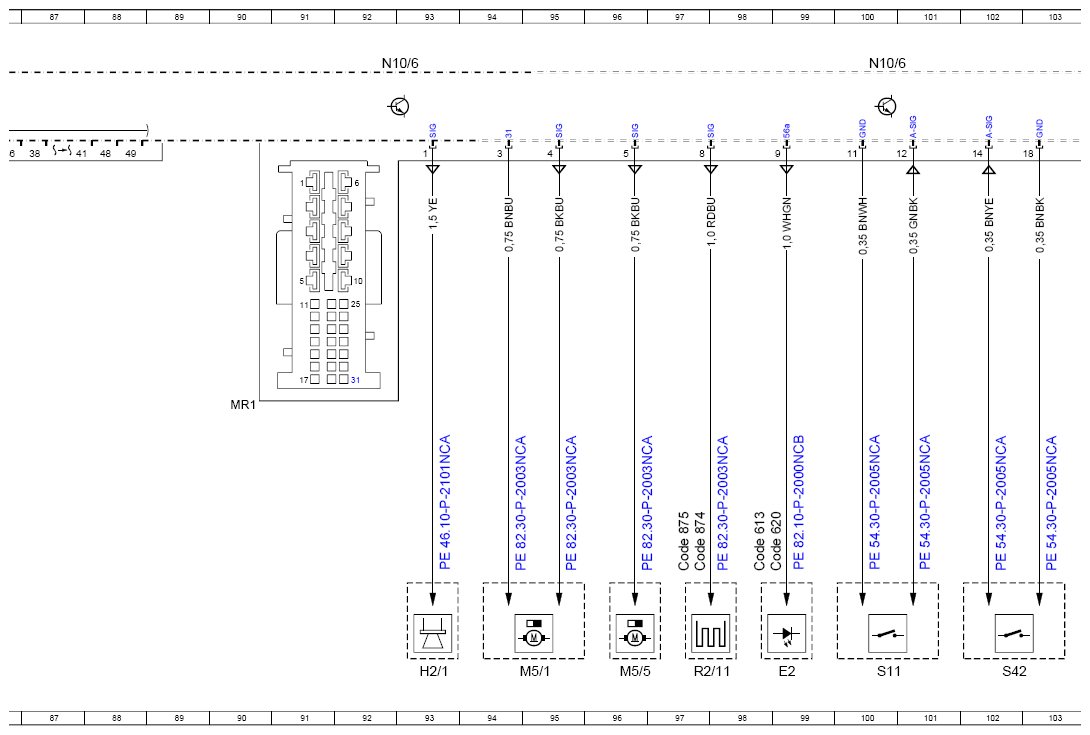

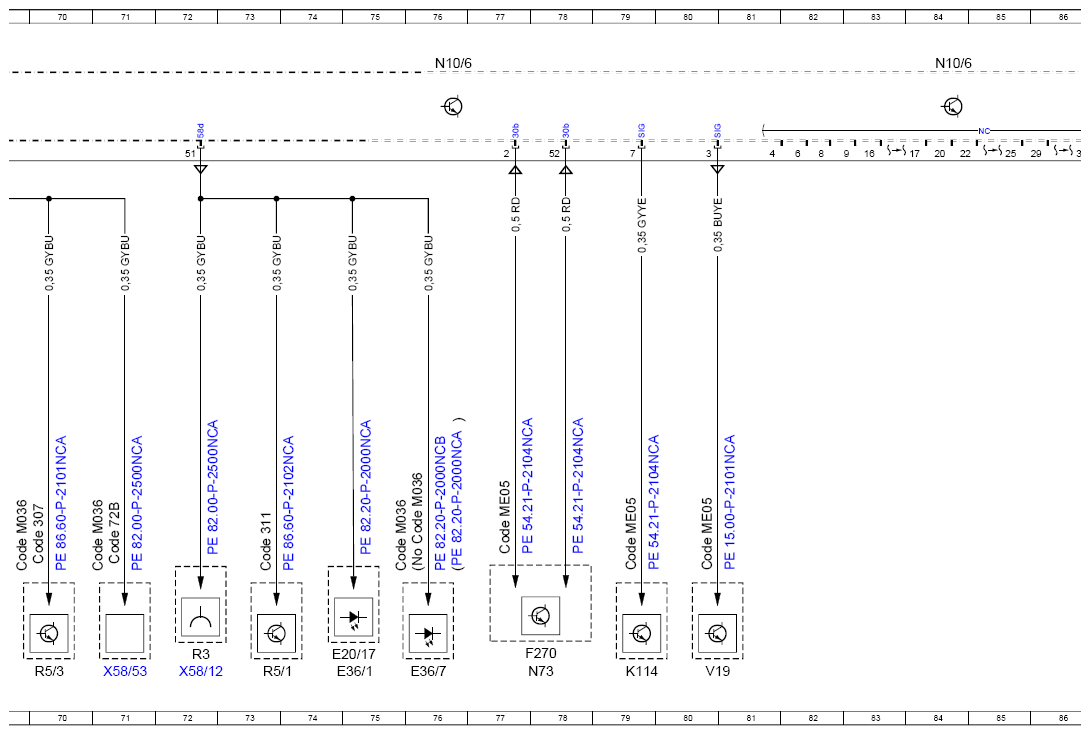

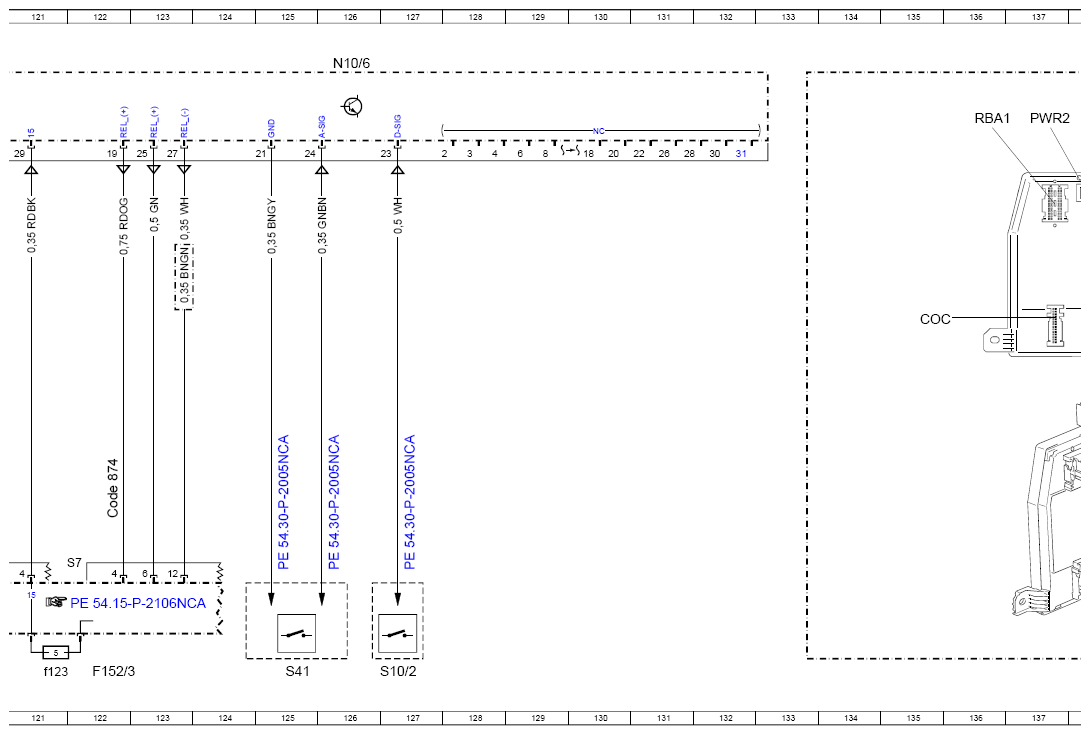

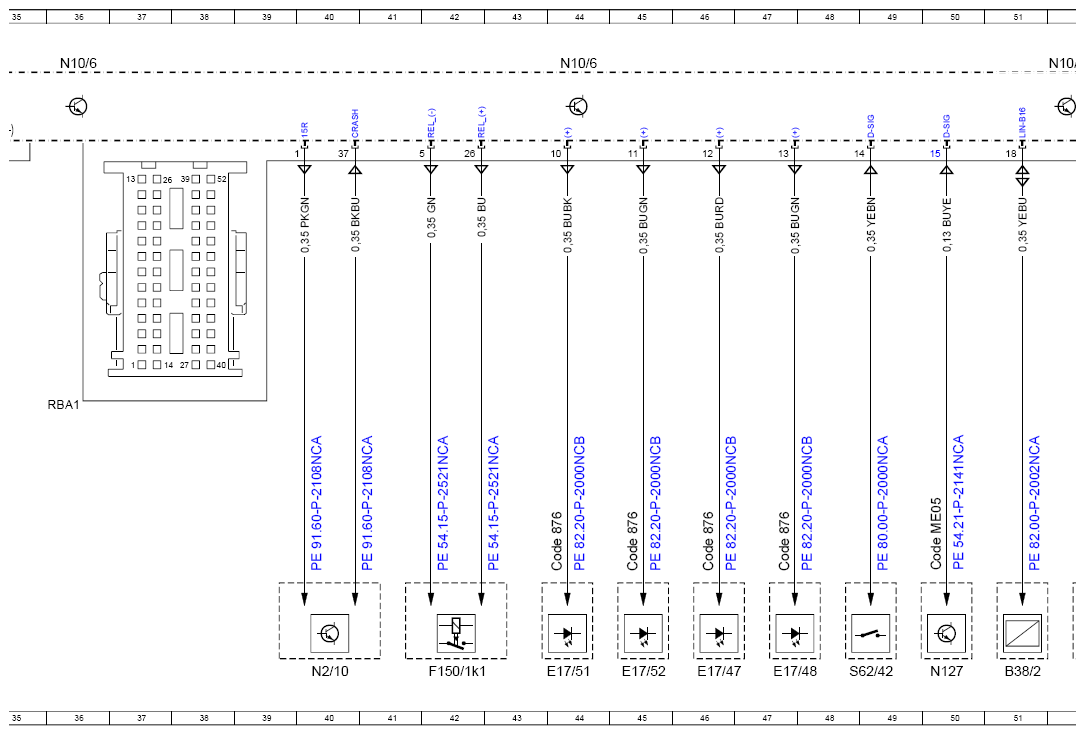

Wiring Diagram For Front Central Control Unit - PE54.21-P-2169-97NCA
Model 167 Front central control unit N10/6
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 160L |
| A40/16 | Head unit/instrument cluster display cluster | 28L |
| A50/6 | Dedicated Short-Range Communications control unit | 65L |
| A90/5 | Multimedia connection unit | 67L |
| B14 | Outside temperature sensor | 104L |
| B38/2 | Rain/light sensor with additional functions | 51L |
| B95 | Battery sensor | 53L |
| CAN B | Interior CAN | 58K |
| Code 307 | Temperature-controlled cup holder in rear passenger compartment | 70J |
| Code 311 | Temperature-controlled cup holder | 73J |
| Code 498 | Japan version | 65J |
| Code 498 | Japan version | 69J |
| Code 580 | Air conditioning | 24J |
| Code 580 | Air conditioning | 25J |
| Code 581 | Automatic air conditioning | 24J |
| Code 581 | Automatic air conditioning | 25J |
| Code 613 | Left-hand traffic headlamps | 98J |
| Code 613 | Left-hand traffic headlamps | 117J |
| Code 620 | Right-hand traffic headlamps | 99J |
| Code 620 | Right-hand traffic headlamps | 117J |
| Code 6U8 | POSITIONING AND TRACKING SYSTEM | 118J |
| Code 6U8 | POSITIONING AND TRACKING SYSTEM | 119J |
| Code 6U9 | Positioning and tracking system subharness pre-installation | 118J |
| Code 6U9 | Positioning and tracking system subharness pre-installation | 119J |
| Code 72B | Additional USB interfaces | 71J |
| Code 868 | Large display for Audio 20 | 29J |
| Code 874 | MAGIC VISION CONTROL, heated | 97J |
| Code 874 | MAGIC VISION CONTROL, heated | 122H |
| Code 874 | MAGIC VISION CONTROL, heated | 116J |
| Code 875 | Heated windshield washer system | 97J |
| Code 876 | Interior 1ights package | 55H |
| Code 876 | Interior 1ights package | 56H |
| Code 876 | Interior 1ights package | 26H |
| Code 876 | Interior 1ights package | 27J |
| Code 876 | Interior 1ights package | 47J |
| Code 876 | Interior 1ights package | 46J |
| Code 876 | Interior 1ights package | 45J |
| Code 876 | Interior lights package | 44J |
| Code B01 | 48V technology | 54J |
| Code B01 | 48V technology | 54J |
| Code M036 | Maybach version | 69J |
| Code M036 | Maybach version | 71J |
| Code M036 | Maybach version | 76J |
| Code M036 | Maybach version | 76J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 50J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 54J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 77J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 79J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 80J |
| Code U10 | Automatic front passenger airbag shutoff | 64J |
| E1 | Left front lamp unit | 117L |
| E13/1 | Glove box lamp | 30L |
| E17/15 | Right front footwell lamp | 26K |
| E17/16 | Left front footwell lamp | 26K |
| E17/17 | Right rear footwell lamp | 56L |
| E17/18 | Left rear footwell lamp | 56K |
| E17/37 | Left front footwell lamp | 27L |
| E17/38 | Right front footwell lamp | 27L |
| E17/47 | Left front illuminated door sill molding | 46L |
| E17/48 | Right front illuminated door sill molding | 47L |
| E17/51 | Left rear illuminated door sill molding | 44L |
| E17/52 | Right rear illuminated door sill molding | 45L |
| E2 | Right front lamp unit | 99L |
| E20/17 | Center console cup holder illumination | 75L |
| E20/18 | Front center console cup holder ambiance illumination | 55K |
| E20/20 | Rear center console cup holder illumination | 55K |
| E36/1 | Center console armrest stowage compartment switch and controls illumination | 75L |
| E36/7 | Rear armrest folding compartment illumination | 76L |
| E43/18 | Driver-side outside ambient lighting | 26K |
| E43/19 | Passenger-side interior ambiance illumination | 26L |
| E43/20 | Passenger-side exterior ambiance illumination | 26L |
| E43/67 | Left front center console grab handle ambient lighting | 55K |
| E43/68 | Right front center console grab handle ambient lighting | 55K |
| E43/69 | Left rear center console grab handle ambient lighting | 55L |
| E43/70 | Right rear center console grab handle ambient lighting | 55L |
| E43/83 | Inner left front seat trim element ambient lighting | 56K |
| E43/84 | Inner right front seat trim element ambient lighting | 56L |
| F150/1 | Starter battery prefuse box | 6L |
| F150/1 | Starter battery prefuse box | 12L |
| F150/1f704 | Electrical fuse 704 | 11L |
| F150/1f705 | Electrical fuse 705 | 5L |
| F150/1k1 | Battery disconnect switch relay | 42L |
| F152/3 | Engine compartment fuse and relay module | 122L |
| F152/3f123 | Fuse 123 | 121L |
| F270 | Buffer battery fuse | 78L |
| H2 | Left fanfare horn | 118L |
| H2/1 | Right fanfare horn | 93L |
| K114 | ECO start/stop function additional battery relay | 79L |
| K120 | Theft detection system horn relay | 119L |
| M5/1 | Windshield washer system pump | 95L |
| M5/5 | Liftgate windshield washer system pump | 96L |
| M6/1 | Wiper motor | 106L |
| N10/6 | Front central control unit | 4A |
| N10/6 | Front central control unit | 12A |
| N10/6 | Front central control unit | 20A |
| N10/6 | Front central control unit | 28A |
| N10/6 | Front central control unit | 36A |
| N10/6 | Front central control unit | 52A |
| N10/6 | Front central control unit | 68A |
| N10/6 | Front central control unit | 76A |
| N10/6 | Front central control unit | 108A |
| N10/6 | Front central control unit | 138A |
| N10/6 | Front central control unit | 145A |
| N10/6 | Front central control unit | 100A |
| N10/6 | Front central control unit | 60A |
| N10/6 | Front central control unit | 44A |
| N10/6 | Front central control unit | 116A |
| N10/6 | Front central control unit | 126A |
| N10/6 | Front central control unit | 84A |
| N10/6 | Front central control unit | 92A |
| N10/8 | Rear central control unit | 61L |
| N110 | Weight Sensing System (WSS) control unit | 64L |
| N127 | Drivetrain control unit | 50L |
| N2/10 | Supplemental restraint system control unit | 40L |
| N58/1 | Climate control operating unit | 24L |
| N70 | Overhead control panel control unit | 52L |
| N73 | Electronic ignition switch control unit | 78L |
| R2/11 | Spray nozzle hose heater | 97L |
| R2/15 | Left windshield wiper heater | 116L |
| R2/16 | Right windshield wiper heater | 116L |
| R3 | Front cigarette lighter with ashtray illumination | 72L |
| R5/1 | Front temperature-controlled cup holder | 73L |
| R5/3 | Rear cup holder | 70L |
| S1/2 | Exterior lights and electric parking brake switch group | 18L |
| S10/2 | Right front brake wear sensor | 127L |
| S105 | Rear-end lowering switch | 68L |
| S11 | Brake fluid level switch | 100L |
| S2/2 | Engine start/stop button | 22L |
| S41 | Coolant level switch | 125L |
| S42 | Windshield washer fluid level indicator switch | 102L |
| S62/42 | Right engine hood contact switch | 49L |
| S62/43 | Left engine hood contact switch | 66L |
| V19 | ECO start/stop function diode | 80L |
| W15/2 | Left footwell ground point | 6E |
| W15/2 | Left footwell ground point | 11E |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 58L |
| X58/12 | Luggage compartment socket | 72L |
| X58/53 | Rear passenger compartment center console USB port | 71L |
