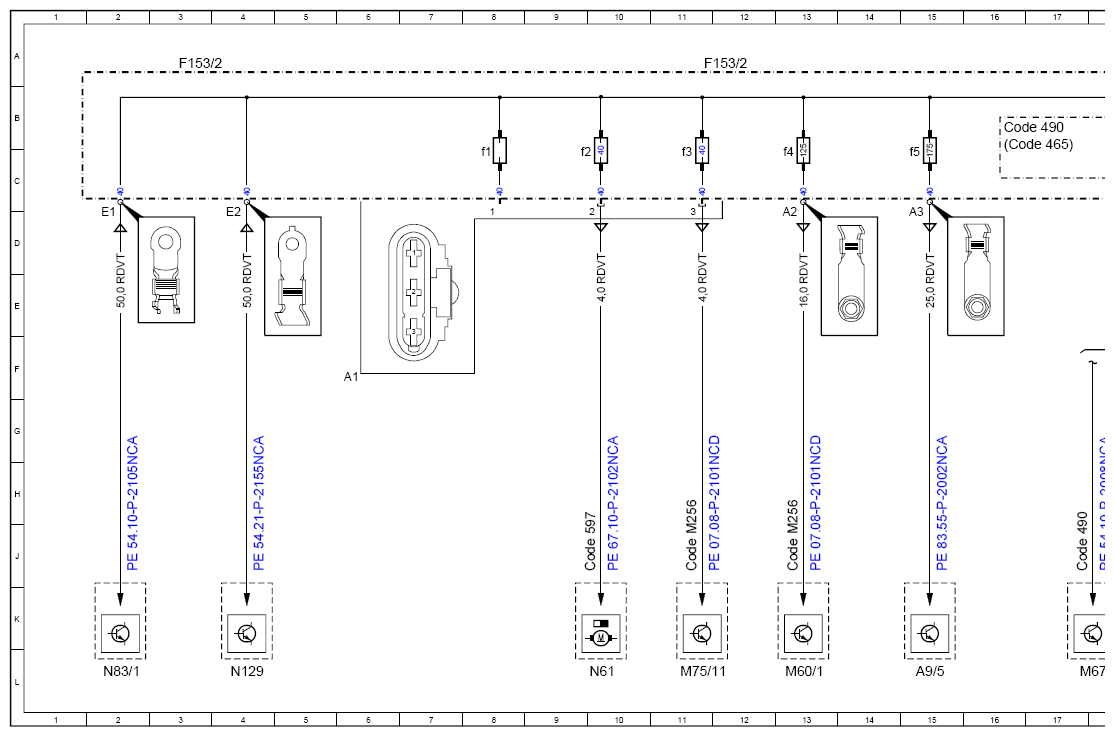

Wiring Diagram For 48 V On-Board Electrical System Engine Compartment Fuse Box - PE54.15-P-2518-97NCA
Model 167
with code B01 (48V technology)
Fuse box F153/2
| Code: | Designation: | Position: |
|---|---|---|

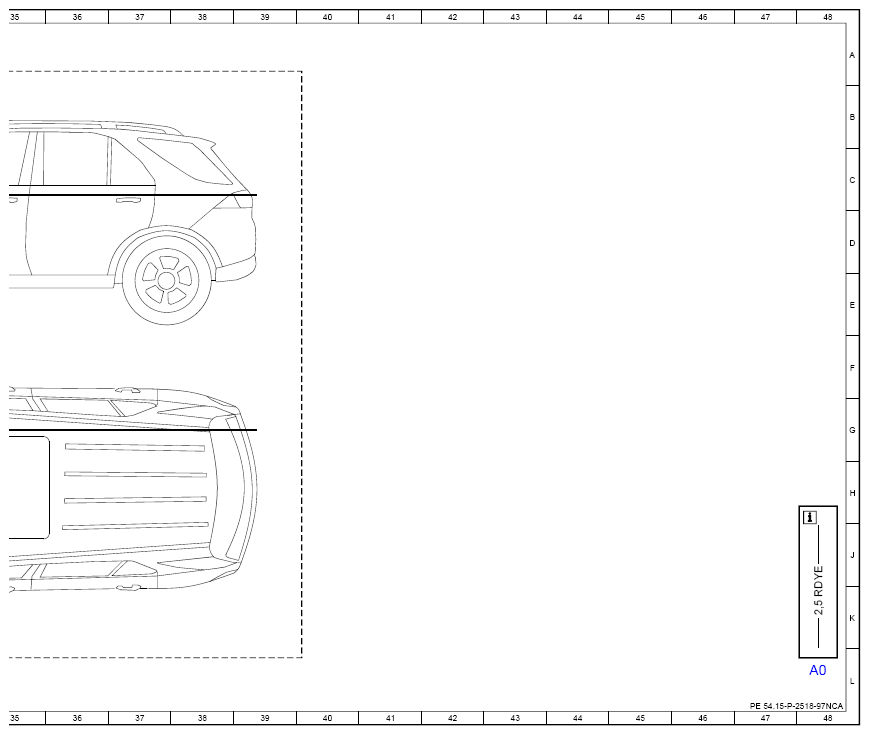

| A0 | Use of wiring diagrams | 48L |
| A108/2 | Front active roll stabilization electric controller unit | 19L |
| A9/5 | Electric refrigerant compressor | 15L |
| Code 465 | Electric active roll stabilization (EARS) | 16B |
| Code 465 | Electric active roll stabilization (EARS) | 19J |
| Code 490 | ElectrohydrauIic suspension | 16B |
| Code 490 | ElectrohydrauIic suspension | 17J |
| Code 597 | Heated windshield | 10J |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 13J |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 11J |

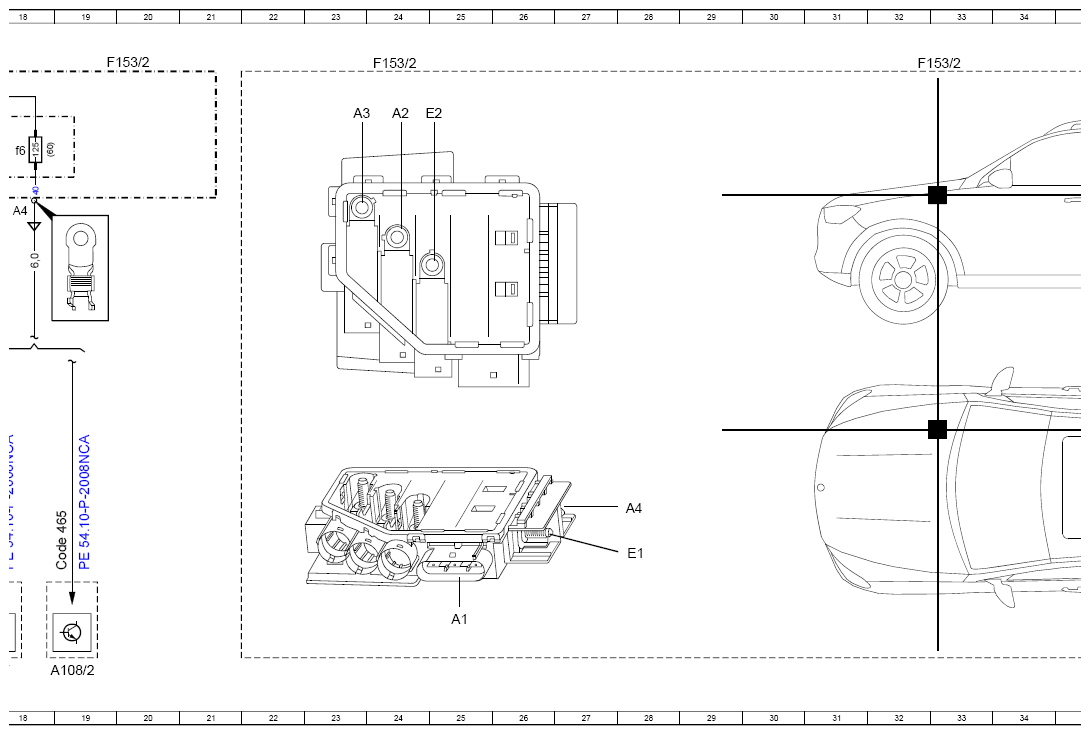

| F153/2 | Engine compartment 48V fuse box | 3A |
| F153/2 | Engine compartment 48V fuse box | 12A |
| F153/2 | Engine compartment 48V fuse box | 24A |
| F153/2 | Engine compartment 48V fuse box | 32A |
| F153/2 | Engine compartment 48V fuse box | 20A |
| F153/2f1 | Fuse 1 | 8C |
| F153/2f2 | Fuse 2 | 9C |
| F153/2f3 | Fuse 3 | 11C |
| F153/2f4 | Fuse 4 | 13C |
| F153/2f5 | Fuse 5 | 15C |
| F153/2f6 | Fuse 6 | 18C |
| M60/1 | Electric additional compressor | 13L |
| M67 | 17L | |
| M75/11 | Electric coolant pump | 11L |
| N129 | Starter generator control unit | 4L |
| N61 | Windshield heater control unit | 10L |
| N83/1 | DC/DC converter control unit | 2L |
