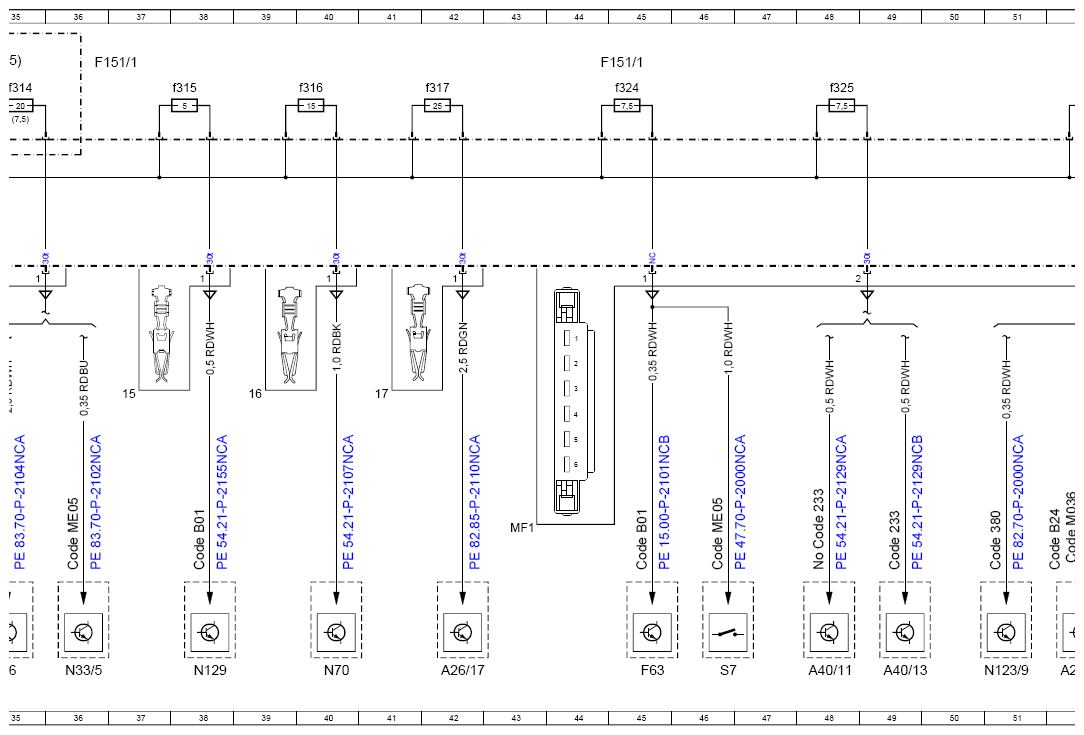

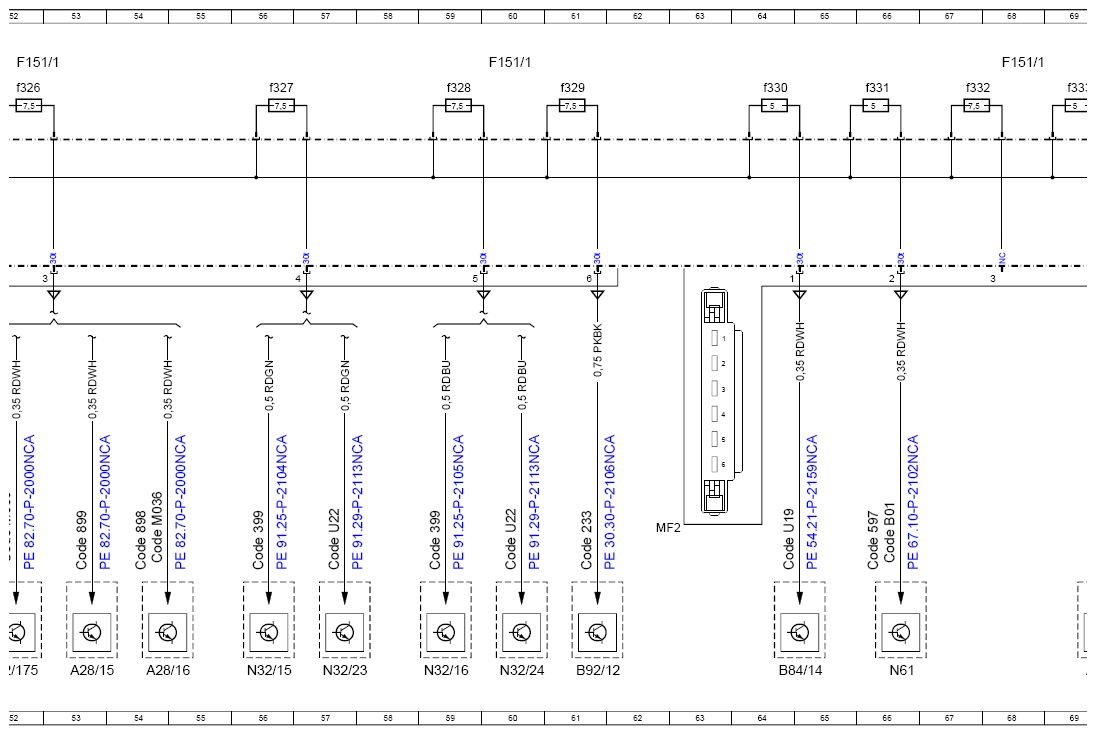

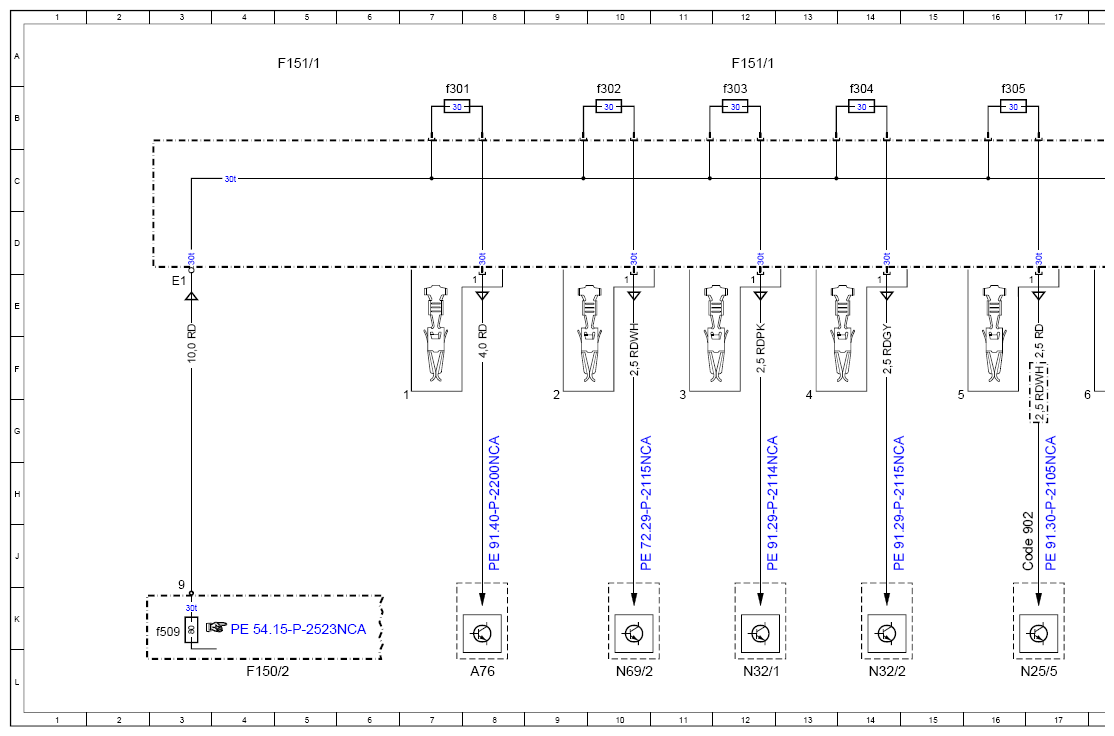

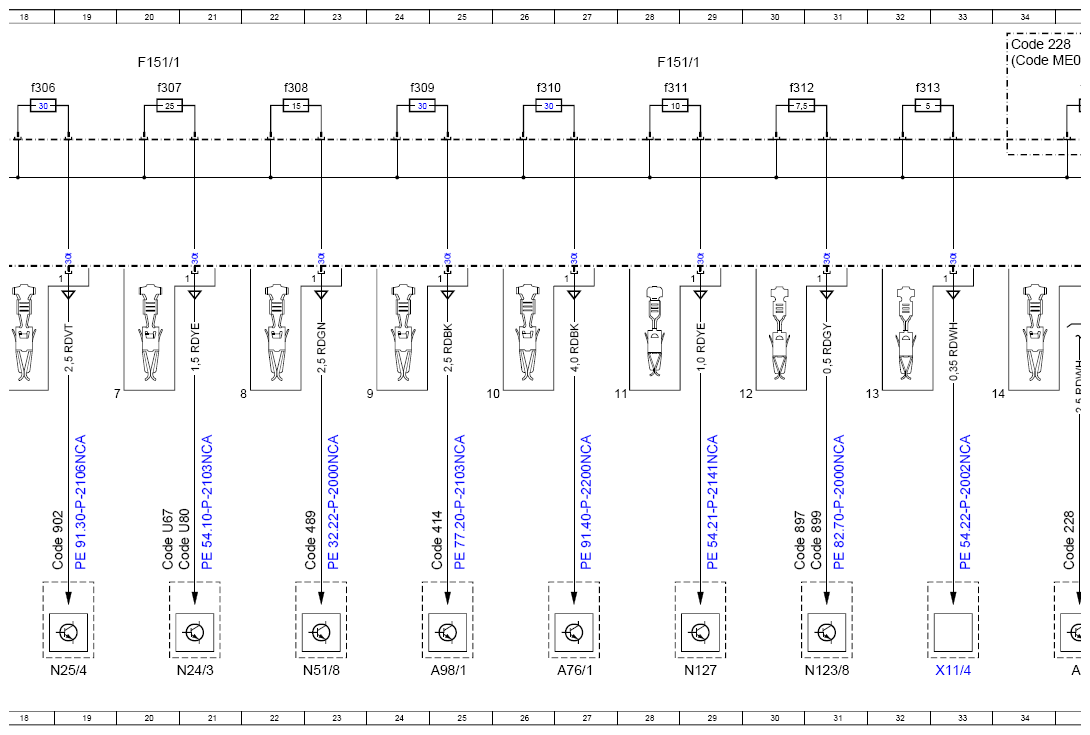

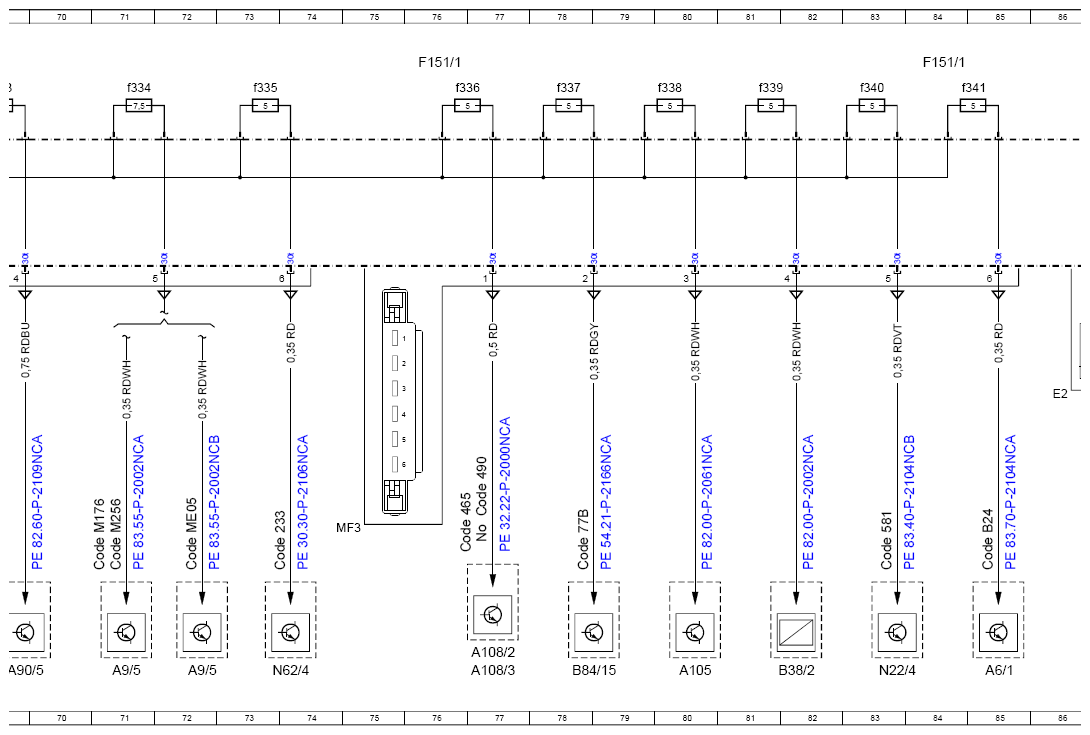

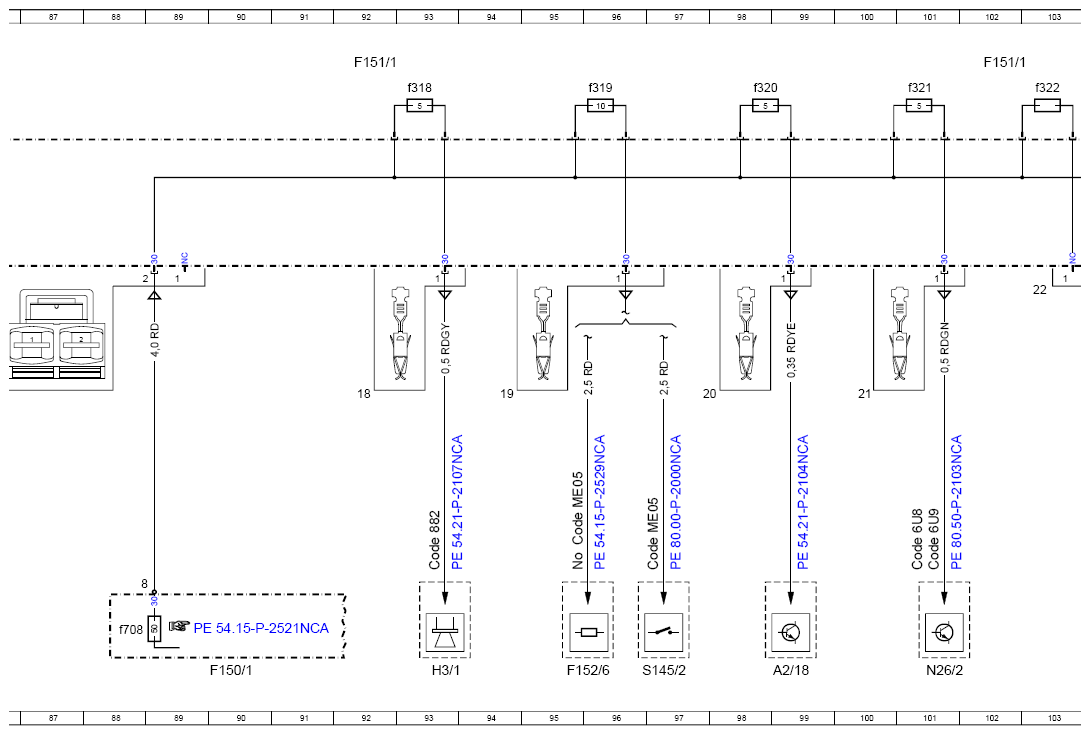

Wiring Diagram Of Passenger-Side A-Pillar Fuse Box - PE54.15-P-2519-97NCA
Model 167

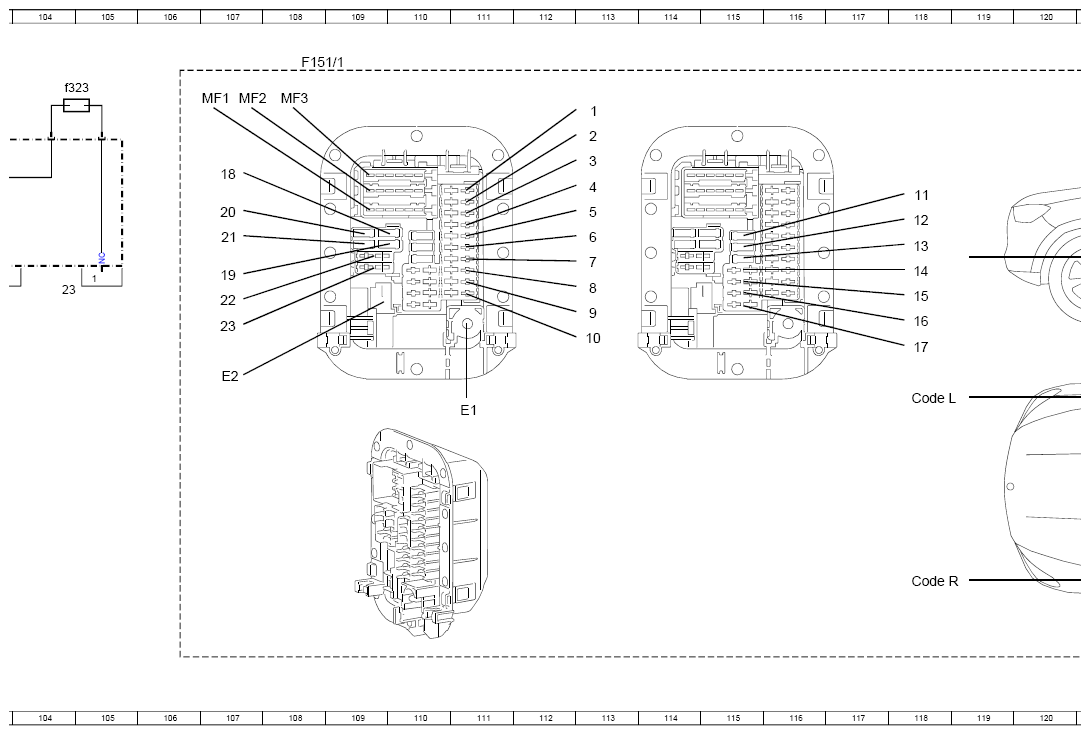

Fuse box F151/1
| Code: | Designation: | Position: |
|---|---|---|

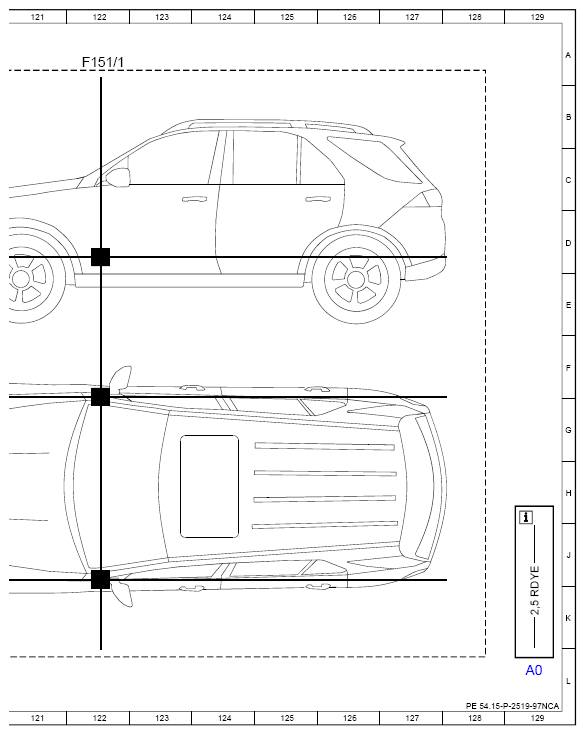

| A0 | Use of wiring diagrams | 129L |
| A105 | Touchpad | 80L |
| A108/2 | Front active roll stabilization electric controller unit | 77L |
| A108/3 | Rear active roll stabilization electric controller unit | 77L |
| A2/175 | Antenna changeover switch for car telephony/stationary heater and Remote Parking Package | 52L |
| A2/18 | FM, AM, CL [ZV] and KEYLESS GO antenna amplifier | 99L |
| A26/17 | Head unit | 42L |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 53L |
| A28/16 | Rear passenger compartment mobile phone network antenna amplifier/compensator | 54L |
| A40/11 | Mono multifunction camera | 48L |
| A40/13 | Stereo multifunction camera | 49L |
| A6 | Stationary heater unit | 35L |
| A6/1 | Stationary heater radio remote control receiver | 85L |
| A76 | Left front reversible emergency tensioning retractor | 8L |
| A76/1 | Right front reversible emergency tensioning retractor | 27L |
| A9/5 | Electric refrigerant compressor | 72L |
| A9/5 | Electric refrigerant compressor | 71L |
| A90/5 | Multimedia connection unit | 69L |
| A98/1 | Sliding roof control module | 25L |
| B38/2 | Rain/light sensor with additional functions | 82L |
| B84/14 | Augmented reality camera | 64L |
| B84/15 | Hand motion sensor | 78L |
| B92/12 | Short and long-range radar sensor | 61L |
| Code 228 | Stationary heater | 35J |
| Code 228 | Stationary heater | 34A |
| Code 233 | DISTRONIC PLUS | 48J |
| Code 233 | DISTRONIC PLUS | 49J |
| Code 233 | DISTRONIC PLUS | 61J |
| Code 233 | DISTRONIC PLUS | 74J |
| Code 380 | Car telephony package | 51J |
| Code 399 | Front multicontour seats with massage function | 56J |
| Code 399 | Front multicontour seats with massage function | 59J |
| Code 414 | Sliding roof | 25J |
| Code 465 | Electric active roll stabilization (EARS) | 77J |
| Code 489 | AIRMATIC | 23J |
| Code 490 | Electrohydraulic suspension | 77H |
| Code 581 | Automatic air conditioning | 83J |
| Code 597 | Heated windshield | 66J |
| Code 6U8 | POSITIONING AND TRACKING SYSTEM | 101J |
| Code 6U9 | Positioning and tracking system subharness pre-installation | 101J |
| Code 77B | Contact less gesture control at front | 78J |
| Code 882 | Interior monitoring | 93J |
| Code 897 | Wireless mobile phone charging | 31J |
| Code 898 | Wireless charging in rear passenger compartment | 54J |
| Code 899 | Wireless phone charging at front and antenna | 31J |
| Code 899 | Wireless phone charging at front and antenna | 53J |
| Code 902 | Seat heater Plus for driver and front passenger | 19J |
| Code 902 | Seat heater Plus for driver and front passenger | 17J |
| Code B01 | 48V technology | 38J |
| Code B01 | 48V technology | 45J |
| Code B01 | 48V technology | 66J |
| Code B24 | Remote control for auxiliary heating | 52J |
| Code B24 | Remote control for auxiliary heating | 85J |
| Code L | LEFT-HAND DRIVE | 118G |
| Code M036 | Maybach version | 54J |
| Code M036 | Maybach version | 52J |
| Code M176 | V8-SPARK-IGNITION ENGINE M176 | 71J |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 71J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 36J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 46J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 72J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 34A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 95J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 97J |
| Code R | RIGHT-HAND DRIVE | 118J |
| Code U19 | Augmented Reality | 64J |
| Code U22 | 4-way lumbar support | 57J |
| Code U22 | 4-way lumbar support | 60J |
| Code U67 | 230 volt socket in interior compartment | 20J |
| Code U80 | 115 V socket | 21J |
| F150/1 | Starter battery prefuse box | 90L |
| F150/1f708 | Electrical fuse 708 | 88K |
| F150/2 | Vehicle interior prefuse box | 4L |
| F150/2f509 | Electrical fuse 509 | 3K |
| F151/1 | Passenger-side A-pillar fuse box | 5A |
| F151/1 | Passenger-side A-pillar fuse box | 12A |
| F151/1 | Passenger-side A-pillar fuse box | 20A |
| F151/1 | Passenger-side A-pillar fuse box | 28A |
| F151/1 | Passenger-side A-pillar fuse box | 36A |
| F151/1 | Passenger-side A-pillar fuse box | 45A |
| F151/1 | Passenger-side A-pillar fuse box | 52A |
| F151/1 | Passenger-side A-pillar fuse box | 60A |
| F151/1 | Passenger-side A-pillar fuse box | 68A |
| F151/1 | Passenger-side A-pillar fuse box | 76A |
| F151/1 | Passenger-side A-pillar fuse box | 84A |
| F151/1 | Passenger-side A-pillar fuse box | 92A |
| F151/1 | Passenger-side A-pillar fuse box | 102A |
| F151/1 | Passenger-side A-pillar fuse box | 108A |
| F151/1 | Passenger-side A-pillar fuse box | 122A |
| F151/1f301 | Fuse 301 | 7B |
| F151/1f302 | Fuse 302 | 10B |
| F151/1f303 | Fuse 303 | 12B |
| F151/1f304 | Fuse 304 | 14B |
| F151/1f305 | Fuse 305 | 16B |
| F151/1f306 | Fuse 306 | 18B |
| F151/1f307 | Fuse 307 | 20B |
| F151/1f308 | Fuse 308 | 22B |
| F151/1f309 | Fuse 309 | 24B |
| F151/1f310 | Fuse 310 | 26B |
| F151/1f311 | Fuse 311 | 28B |
| F151/1f312 | Fuse 312 | 30B |
| F151/1f313 | Fuse 313 | 32B |
| F151/1f314 | Fuse 314 | 35B |
| F151/1f315 | Fuse 315 | 38B |
| F151/1f316 | Fuse 316 | 40B |
| F151/1f317 | Fuse 317 | 42B |
| F151/1f318 | Fuse 318 | 93B |
| F151/1f319 | Fuse 319 | 96B |
| F151/1f320 | Fuse 320 | 98B |
| F151/1f321 | Fuse 321 | 101B |
| F151/1f322 | Fuse 322 | 103B |
| F151/1f323 | Electrical fuse 323 | 104B |
| F151/1f324 | Fuse 324 | 45B |
| F151/1f325 | Fuse 325 | 48B |
| F151/1f326 | Fuse 326 | 52B |
| F151/1f327 | Fuse 327 | 56B |
| F151/1f328 | Fuse 328 | 59B |
| F151/1f329 | Electrical fuse 329 | 61B |
| F151/1f330 | Fuse 330 | 64B |
| F151/1f331 | Fuse 331 | 66B |
| F151/1f332 | Fuse 332 | 67B |
| F151/1f333 | Fuse 333 | 69B |
| F151/1f334 | Fuse 334 | 71B |
| F151/1f335 | Fuse 335 | 73B |
| F151/1f336 | Fuse 336 | 76B |
| F151/1f337 | Fuse 337 | 78B |
| F151/1f338 | Fuse 338 | 80B |
| F151/1f339 | Fuse 339 | 81B |
| F151/1f340 | Fuse 340 | 83B |
| F151/1f341 | Fuse 341 | 84B |
| F152/6 | Jump start fuse box | 95L |
| F63 | Pyrofuse | 45L |
| H3/1 | Alarm siren | 93L |
| N123/8 | Front mobile phone cradle control unit | 31L |
| N123/9 | Telephone control unit | 51L |
| N127 | Drivetrain control unit | 29L |
| N129 | Starter generator control unit | 38L |
| N22/4 | Rear air conditioning operating unit | 83L |
| N24/3 | DC/AC converter control unit | 21L |
| N25/4 | Front passenger seat heater control unit | 19L |
| N25/5 | Driver seat heater control unit | 17L |
| N26/2 | Theft detection system control unit | 101L |
| N32/1 | Driver seat control unit | 12L |
| N32/15 | Driver multicontour seat control unit | 56L |
| N32/16 | Front passenger multicontour seat control unit | 59L |
| N32/2 | Front passenger seat control unit | 14L |
| N32/23 | Driver's seat lumbar support electropneumatic controller unit | 57L |
| N32/24 | Front passenger seat lumbar support electropneumatic controller unit | 60L |
| N33/5 | High-voltage PTC heater | 36L |
| N51/8 | Suspension and damping system control unit | 23L |
| N61 | Windshield heater control unit | 66L |
| N62/4 | Mercedes-Benz Intelligent Drive control unit | 74L |
| N69/2 | Front passenger door control unit | 10L |
| N70 | Overhead control panel control unit | 40L |
| S145/2 | Charging interruption button | 97L |
| S7 | High-voltage disconnect device | 46L |
| X11/4 | Diagnostic connector | 33L |
