Rear Roof Panel Section Removal - Ar65.10-P-5760-01MEX

Model 167.9

with code 413 (Automatic panoramic sliding sunroof)

Fig 1: Set Of Spacer Blocks (216 589 02 23 00)

Courtesy of MERCEDES-BENZ USA

The higher-level service document as well as the safety information in the service document must be observed.

Fig 2: Rear Roof Panel Component Location (Model 167.9) (W/ Code 413 (Automatic Panoramic Sliding Sunroof))

Courtesy of MERCEDES-BENZ USA

1. Insert set of spacer blocks on undamaged side between roof paneling rear section (1) and side roof paneling and adjust dimension.

   During installation, the roof paneling rear section (1) can be fitted with the adjusted set of spacer blocks.

2. Mark positions of the set of spacer blocks on the vehicle and write down dimensions.
3. Determine dimensions from outer edge of roof paneling rear section (1) to outer edges of rear roof rack.
4. Mark positions of measuring points on vehicle and note dimensions.

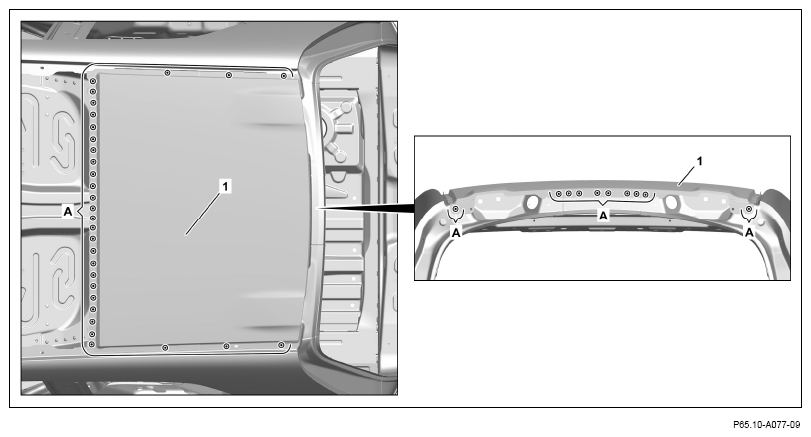

5. Expose spot welds on roof paneling rear section (1) and cut out (areas A).

   Courtesy of MERCEDES-BENZ USA

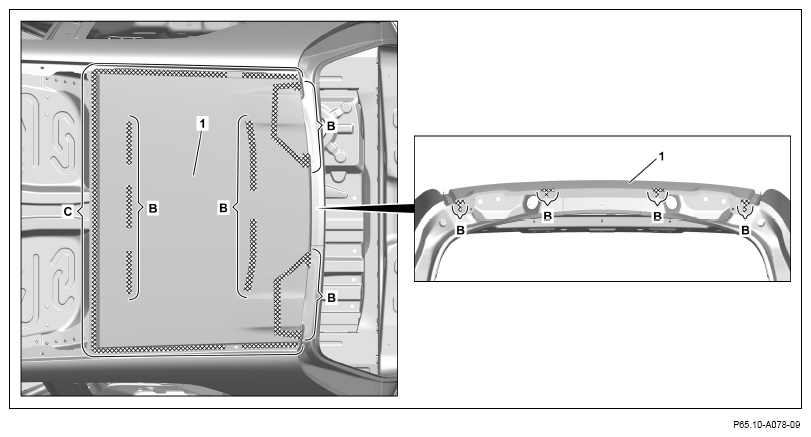

6. Disconnect bondings of roof paneling rear section (1) in cross-hatched areas (areas B).

   Cross-hatched areas are bonded with adhesive.

7. Heat roof paneling rear section (1) in cross-hatched areas (area C).

   Do not exceed temperature of 120°C. Otherwise the structure of the adhesive areas below can change.

   Cross-hatched areas are bonded with adhesive.

8. Remove roof paneling rear section (1).

   Courtesy of MERCEDES-BENZ USA

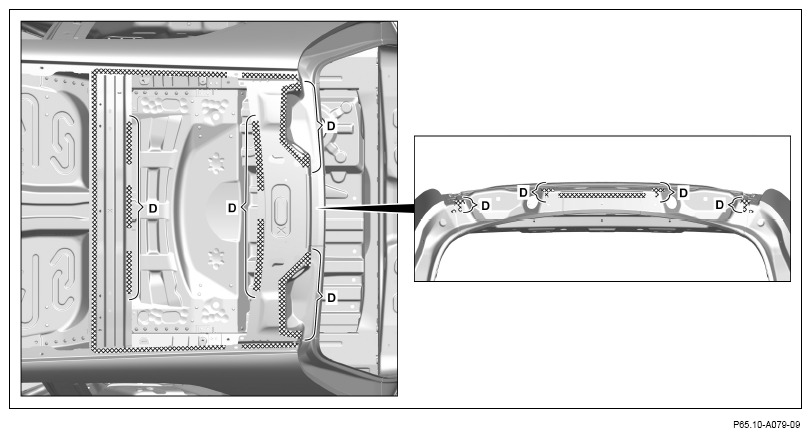

9. Remove residual adhesive material from roof frame (areas D).

   Observe pretreatment of bonding surfaces.

10. Coat damaged points with primer.
11. Grind mating surfaces down to bare metal in remaining crosshatched areas.

    Grind spot weld flanges down to bare metal on both sides.

12. Remove grinding dust and drill chips.
