Remove/Install Rear Door Lower Hinge - AR72.12-P-2663ME
Model 167
Shown on left side of vehicle
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||

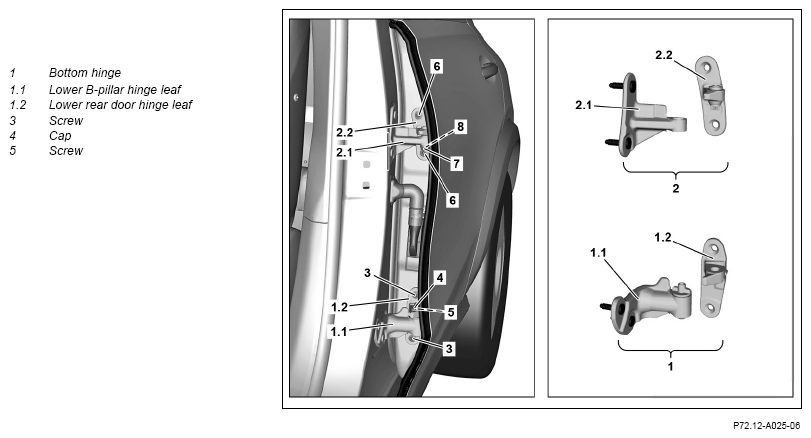

| 1 | Mark installation position of the bottom B-pillar hinge leaf (1.1) and bottom rear door hinge leaf (1.2) on the left and right side of the vehicle using suitable means. | ||
| 2 | Remove front reversible emergency tensioning retractor (A76 or A76/1) from the B-pillar. | AR91.40-P-1010ME | |
| 3 | Support rear door using suitable means and fix in place. | Support rear door and fix in place. Otherwise the rear door can be damaged. |
|
| 4 | Remove cover (4). | ||
| 5 | Remove screw (5). | *BA72.12-P-1005-01K | |
| 6 | Remove screws (3) and remove bottom rear door hinge leaf (1.2). | *BA72.12-P-1002-01K | |

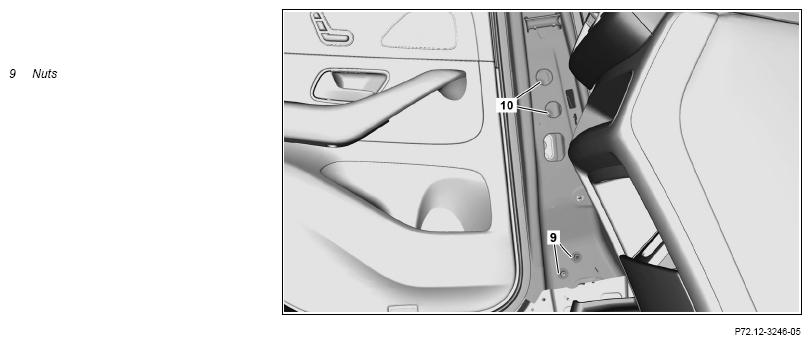

| 7 | Remove nuts (9) and remove bottom B-pillar hinge leaf (1.1). | *BA72.12-P-1003-01K | |
| 8 | Install in the reverse order. | ||
| Check | |||
| 9 | Check gap dimensions of rear door; adjust rear door if necessary. | AR72.12-P-0650ME | |
| 10 | Repair paint damage at respective bolt heads. | Overview of MB materials and how they are processed | AR98.00-P-0150CW |
| Risk of explosion and poisoning caused by solvent vapors and gasses. Risk of injury to skin and eyes when working with anticorrosion agents | Never spray corrosion protection on flames or hot, glowing objects and keep them well away from all potential sources of ignition. Use them only in well-ventilated rooms; wear respiratory protection. | AS97.00-Z-0001-01A | |
| 11 | Protect rear door and B-pillar in area of lower B-pillar hinge leaf (1.1) and lower rear door hinge leaf (1.2) against corrosion; remove excessive wax. | Wax for engine compartment (400 ml spray can) | *BR00.45-Z-1018-05A |
REAR DOOR
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA72.12-P-1002-01K | Screw/bolt, hinge to rear door | Nm | 32 |
REAR DOOR
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA72.12-P-1003-01K | Bolt/nut, hinge to B-pillar | Nm | 32 |
REAR DOOR
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA72.12-P-1005-01K | Bolt at hinge leaf connection | Nm | 32 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1018-05A | Wax for engine compartment (400 ml spray can) | A 000 986 33 70 10 |
