Disconnect/Connect Automatic Transmission Oil Line - AR27.10-P-0501-03LF
Transmission 700.4 in model 190
Transmission 722.9 in model 217, 222
Transmission 724.2 in model 166, 205, 222, 253
Transmission 725.0 in model 166, 167, 205, 213, 217, 222, 223, 232, 238, 253, 257, 290, 292
Transmission 725.163 in model 290
| Number | Designation Order | number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
Remove oil line
- Clean separating point and surrounding area thoroughly.
Ensure scrupulous cleanliness.
Even the smallest dirt particles can lead to malfunctions in the hydraulic components and to total failure of the hydraulic system.

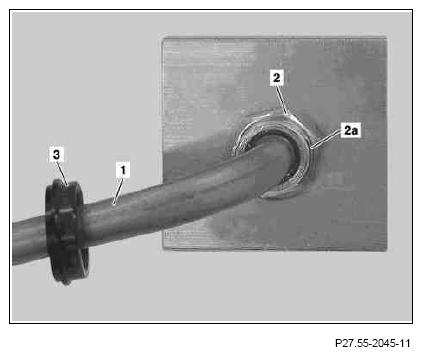

- Release dust cap (3) and push back along oil line (1) until the connector (2) is accessible.
- Position a suitable tool (e.g. hook) at one end of the safety clip (2a) and detach safety clip (2a) from connector (2).
- Pull oil line (1) out of connector (2) and seal connections with suitable
stop plugs.
- Detach dust cap (3) from oil line (1).
Attach oil line

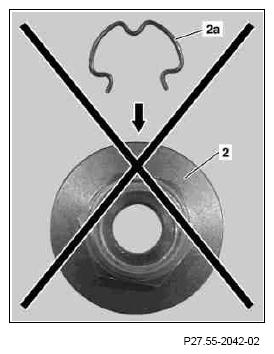

Replace safety clip (2a) each time an oil line (1) is detached.
Otherwise, the safety clip (2a) is overstretched and correct sealing of the line connection is no longer be guaranteed.
- Insert one end of new safety clip (2a) into a cutout (2b) of connector (2).
- Slide safety clip (2a) in direction of arrow until it fully engages in the connector (2).
- Push dust cap (3) onto oil line (1).
- Remove
- Insert oil line (1) straight into connector (2) until it audibly and noticeable latches.
- Slide dust cap (3) onto connector (2) until it latches and can turn freely.
