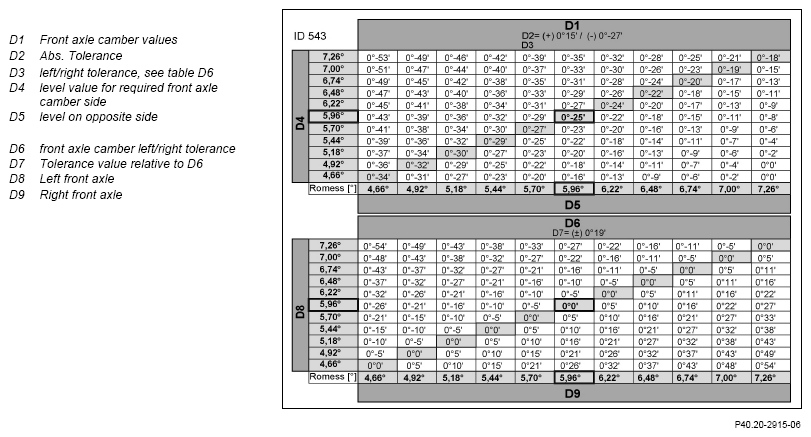

Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01MED
Model 167.1 (except 167.161/188/189)
with code 460 (Canada version)
except code 489 (AMG RIDE CONTROL)
except code 490 (Electrohydraulic suspension)
except code 491 (Lowered suspension with steel springs)
except code 9U4 (Control code, wheel diameter, standard (size 750/760))
except code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
Model 167.1 (except 167.161/188/189)
with code 494 (US version)
except code 489 (AMG RIDE CONTROL)
except code 490 (Electrohydraulic suspension)
except code 491 (Lowered suspension with steel springs)
except code 9U4 (Control code, wheel diameter, standard (size 750/760))
except code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
Model 167.1 (except 167.161/188/189)
with code 830 (China version)
except code 489 (AMG RIDE CONTROL)
except code 490 (Electrohydraulic suspension)
except code 491 (Lowered suspension with steel springs)
except code 9U4 (Control code, wheel diameter, standard (size 750/760))
except code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
