Check Condition Of Front Axle And Control Arms - AP33.10-P-3358E
Model 166, 167, 292

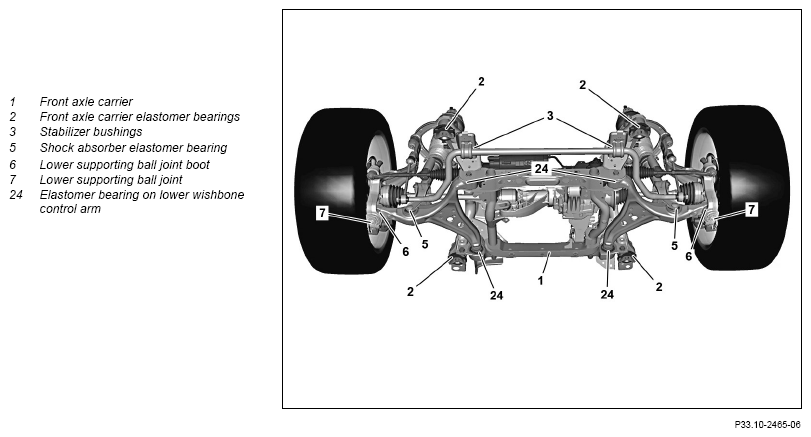

Shown on model 166.003

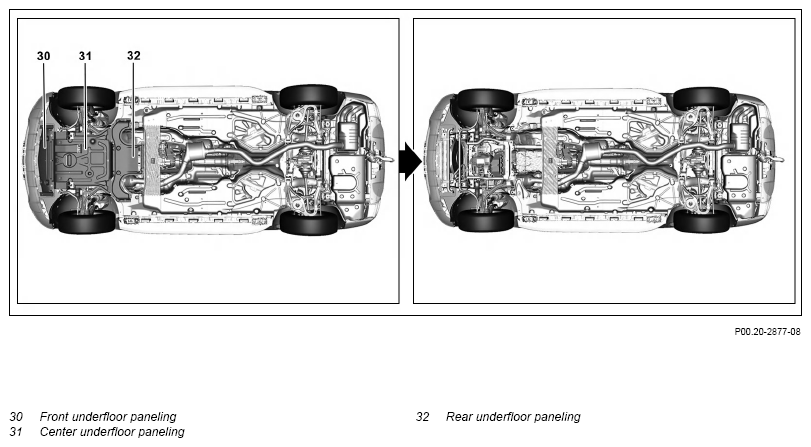

Shown on model 292 with code 489 (AIRMATIC) without code 468 (ACTIVE CURVE SYSTEM)

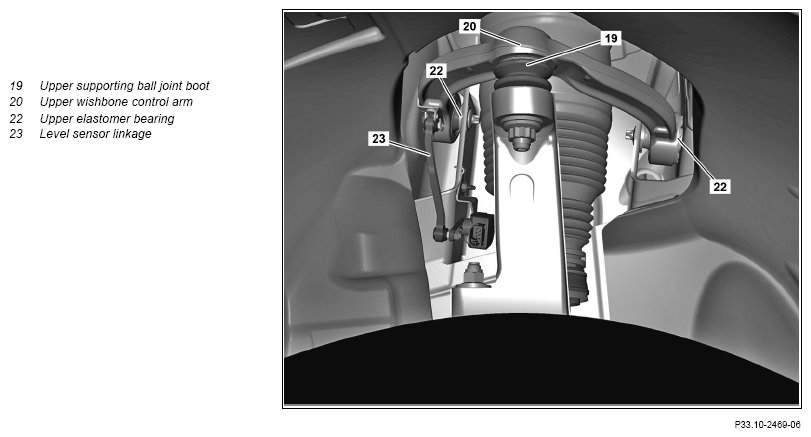

Shown on model 292 with code 489 (AIRMATIC)

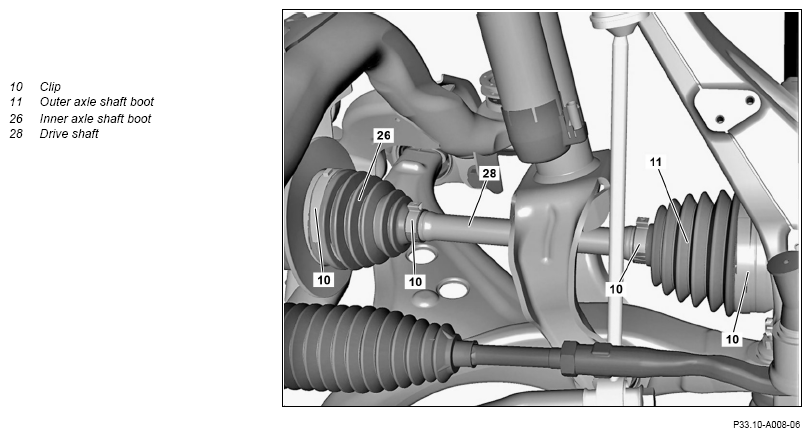

Shown on model 292 with code 489 (AIRMATIC)

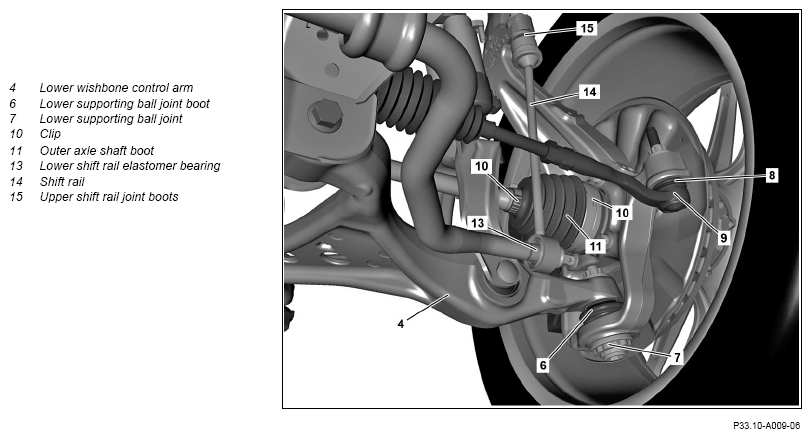

Shown on model 292 with code 489 (AIRMATIC)
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | AH00.00-Z-0300-01A | |
| Preparatory activity | |||
| 1 | Lift vehicle with lifting platform. | ||
| AR00.60-P-1006A | |||
| Check | |||
| 2 | Check underfloor paneling for evidence of damage caused by driving over obstacles or bottoming. | If the underfloor paneling exhibits any signs of damage, ↓ rectify the problems. |
|
| Remove | |||
| 3.1 | Remove front underfloor paneling (30), center underfloor paneling (31) and rear underfloor paneling (32). | Model 166, 292 | |
| AR61.30-P-1001GQ | |||
| 3.2 | Install front engine compartment lining, center engine compartment lining, rear engine compartment lining. | Model 167 | |
| AR61.20-P-1105ME | |||
| Check | |||
| 4 | Assess the wheel bearings by firmly tugging, pushing and turning at the wheels. | If problems occur, ↓ rectify the problems. |
|
| 5 | Check front axle carrier (1) for cracks, deformation and corrosion. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If problems occur, ↓ rectify the problems. |
|
| 6 | Check front axle carrier elastomer bearings (2) for cracks, deformation and wear, also check for play by firmly pulling and pushing. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If problems occur, ↓ rectify the problems. |
|
| 7 | Check stabilizer bar for cracks, deformation and corrosion. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If problems occur, ↓ rectify the problems. |
|
| 8 | Check stabilizer bar bushings (3) for cracks, deformation and wear, also check for play by firmly pulling and pushing on stabilizer bar. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If problems occur, ↓ rectify the problems. |
|
| 9 | Check shock absorber elastomer bearings (5) for cracks, deformation and wear, also check for play by firmly pulling and pushing. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If problems occur, ↓ rectify the problems. |
|
| 10 | Check lower wishbone control arm elastomer bearings (24) for cracks, deformation and wear, also check for play by firmly pulling and pushing. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If problems occur, ↓ rectify the problems. |
|
| 11 | Check outer drive shaft boots (11) for condition, leak tightness and correct seating. | Model 166 (except 166.006/058), 167 (except 167.148), 292 Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If problems occur, ↓ rectify the problems. |
|
| 12 | Check clamps (10) of outer drive shaft boots (11) for cracks, deformation, corrosion and correct seating. | Model 166 (except 166.006/058), 167 (except 167.148), 292 Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If problems occur, ↓ rectify the problems. |
|
| 13 | Check inner drive shaft boots (26) for condition, leak tightness and correct seating. | Model 166 (except 166.006/058), 167 (except 167.148), 292 Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If problems occur, ↓ rectify the problems. |
|
| 14 | Check clamps (10) of inner drive shaft boots (26) for cracks, deformation, corrosion and correct seating. | Model 166 (except 166.006/058), 167 (except 167.148), 292 Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If problems occur, ↓ rectify the problems. |
|
| 15 | Check drive shafts (28) for cracks, deformation, corrosion and play by pulling and pushing. | Model 166 (except 166.006/058), 167 (except 167.148), 292 Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If problems occur, ↓ rectify the problems. |
|
| 16 | Check lower supporting joint boots (6) for condition, leak tightness and correct seating. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If problems occur, ↓ rectify the problems. |
|
| 17 | Check lower supporting joints (7) for play by firmly pushing and pulling lower wishbone control arms (4). | If problems occur, ↓ rectify the problems. |
|
| 18 | Check upper shift rail joint boots (15) for condition, leak tightness and correct seating. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If problems occur, ↓ rectify the problems. |
|
| 19 | Check shift rail joints for play by firmly pulling and pushing on shift rails (14). | If problems occur, ↓ rectify the problems. |
|
| 20 | Check lower shift rail elastomer bearings (13) for play by firmly pulling and pressing on shift rails (14). | If problems occur, ↓ rectify the problems. |
|
| 21 | Check shift rails (14) for cracks, deformation and corrosion. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If problems occur, ↓ rectify the problems. |
|
| 22 | Check upper elastomer bearings (22) of upper wishbone control arms (20) for cracks, deformation and wear, also check for play by firmly pulling and pushing. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If problems occur, ↓ rectify the problems. |
|
| 23 | Check upper supporting joint boots (19) for condition, leak tightness and correct seating. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If problems occur, ↓ rectify the problems. |
|
| 24 | Check upper supporting joints for play by firmly pulling and pushing upper wishbone control arms (20). | If problems occur, ↓ rectify the problems. |
|
| 25 | Check level sensor linkage (23) for correct seating, cracks, deformation, corrosion and play. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If problems occur, ↓ rectify the problems. |
|
| Install | |||
| 26.1 | Install front underfloor paneling (30), center underfloor paneling (31) and rear underfloor paneling (32). | Model 166, 292 | |
| AR61.30-P-1001GQ | |||
| 26.2 | Install front engine compartment lining, center engine compartment lining, rear engine compartment lining. | Model 167 | |
| AR61.20-P-1105ME |
