Wiring Diagram For Control Unit Of Seat Heating For 3rd Seat Row - PE91.30-P-2109-97NCA
Model 167 with code 886 (Seat heater for 3rd seat row) Control unit N25/16
| Code: | Designation: | Position: |
|---|---|---|

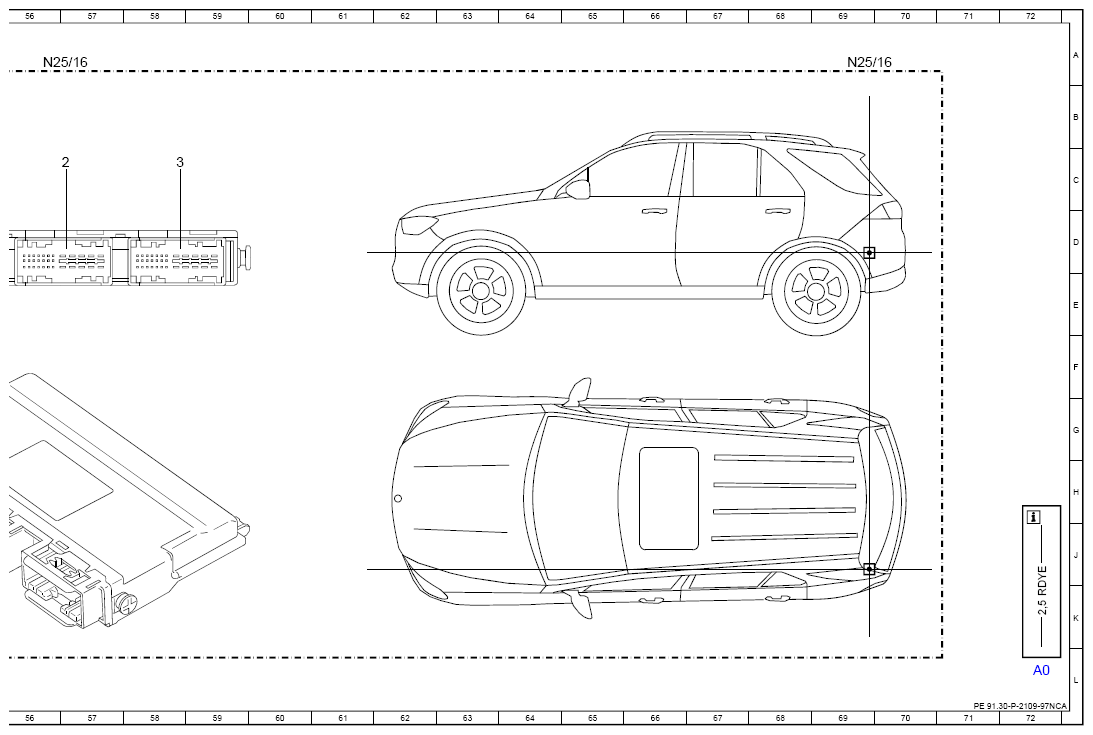

| A0 | Use of wiring diagrams | 72L |
| CAN B | Interior CAN | 12K |

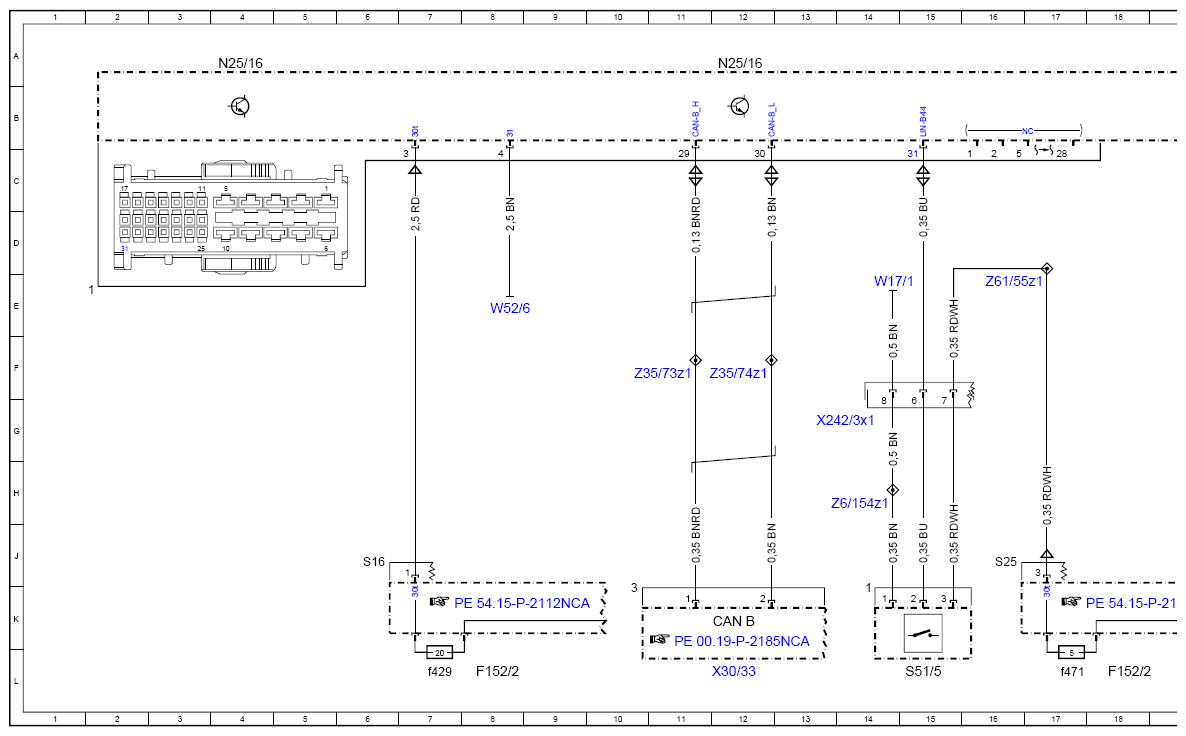

| F152/2 | Rear fuse and relay module | 8L |
| F152/2 | Rear fuse and relay module | 18L |
| F152/2f429 | Fuse 429 | 7L |
| F152/2f471 | Fuse 471 | 17L |
| N25/16 | 3rd seat row seat heating control unit | 4A |
| N25/16 | 3rd seat row seat heating control unit | 56A |
| N25/16 | 3rd seat row seat heating control unit | 69A |
| N25/16 | 3rd seat row seat heating control unit | 12A |
| N25/16 | 3rd seat row seat heating control unit | 36A |
| N25/16 | 3rd seat row seat heating control unit | 20A |
| N25/16 | 3rd seat row seat heating control unit | 28A |
| N25/16 | 3rd seat row seat heating control unit | 44A |

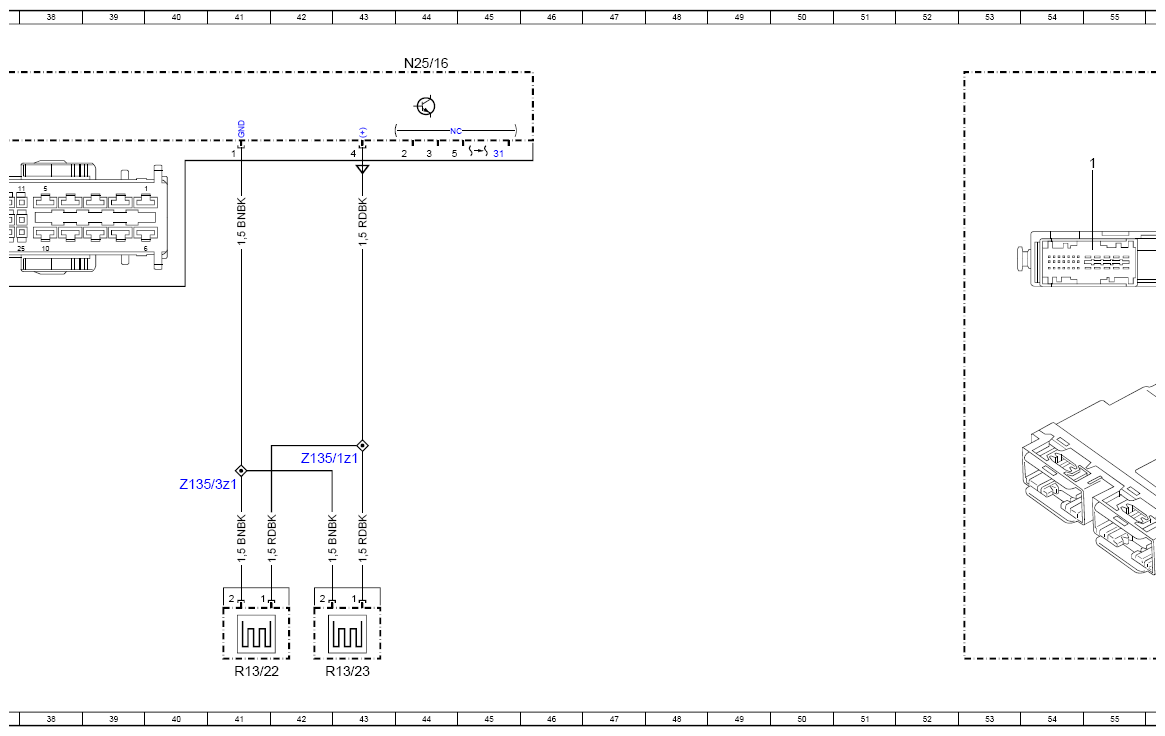

| R13/22 | Left rear passenger compartment sitting surface heater pad, 3rd seat row | 41L |
| R13/23 | Left rear passenger compartment seat backrest heater pad, 3rd seat row | 43L |
| R13/24 | Right rear passenger compartment sitting surface heater pad, 3rd seat row | 29L |
| R13/25 | Right rear passenger compartment seat backrest heater pad, 3rd seat row | 30L |
| S51/5 | Left 3rd seat row seat heating switch | 15L |

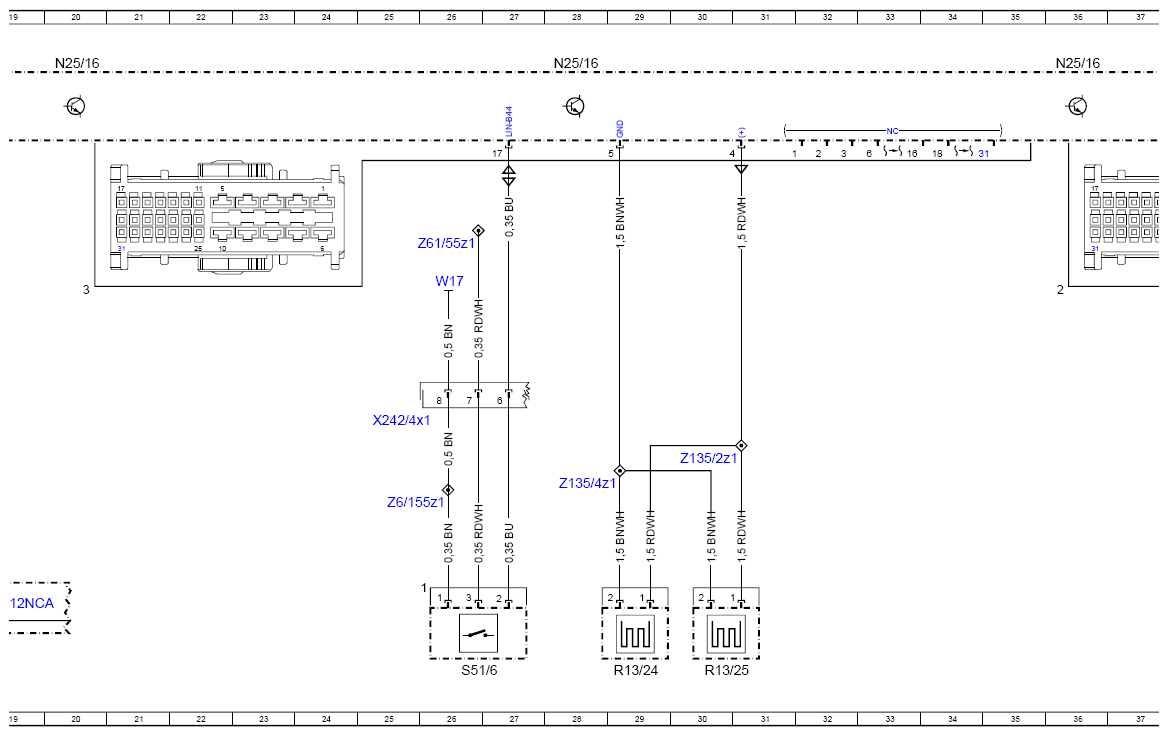

| S51/6 | Right 3rd seat row seat heating switch | 26L |
| W17 | Right rear seat ground point | 26E |
| W17/1 | Left rear seat ground point | 14E |
| W52/6 | Right center longitudinal member ground point | 8E |
| X242/3x1 | Left load compartment electrical connector | 14G |
| X242/4x1 | Right load compartment electrical connector | 25G |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 12L |
| Z135/1z1 | Left rear seat heater pad circuit 30 connector sleeve | 42H |
| Z135/2z1 | Right rear seat heater pad circuit 30 connector sleeve | 30H |
| Z135/3z1 | Left rear seat heater pad circuit 31 connector sleeve | 41H |
| Z135/4z1 | Right rear seat heater pad circuit 31 connector sleeve | 28H |
| Z35/73z1 | Interior CAN (CAN B) High connector sleeve | 11F |
| Z35/74z1 | Interior CAN (CAN B) low connector sleeve | 12F |
| Z6/154z1 | Left engine ground connection connector sleeve | 14H |
| Z6/155z1 | Ground connection connector sleeve | 25H |
| Z61/55z1 | 3rd seat row supply end sleeve | 16E |
| Z61/55z1 | 3rd seat row supply end sleeve | 26D |
