Remove/Install Engine Management (MCM) Control Unit Holder - AR07.08-P-7016MNP

Engine 177 In Model 167

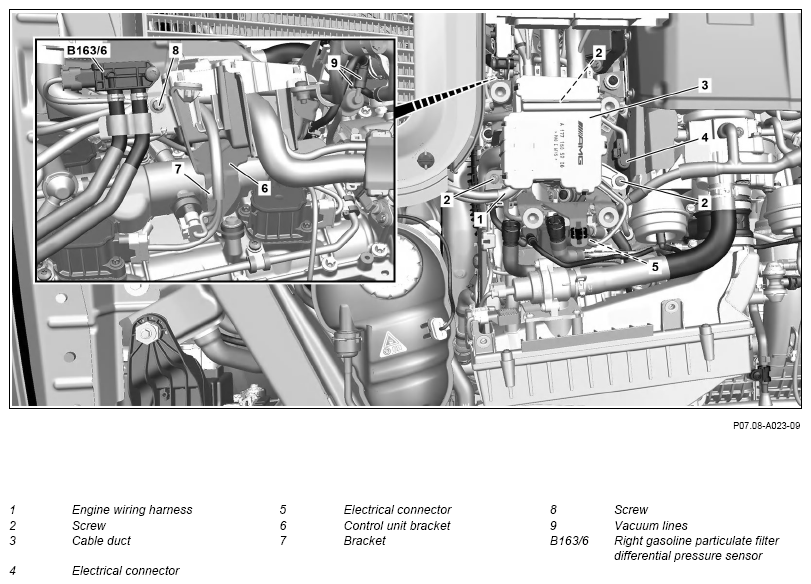

G15031700Courtesy of MERCEDES-BENZ USA

Shown with code 961 (exhaust system with OPF Generation 2.0)

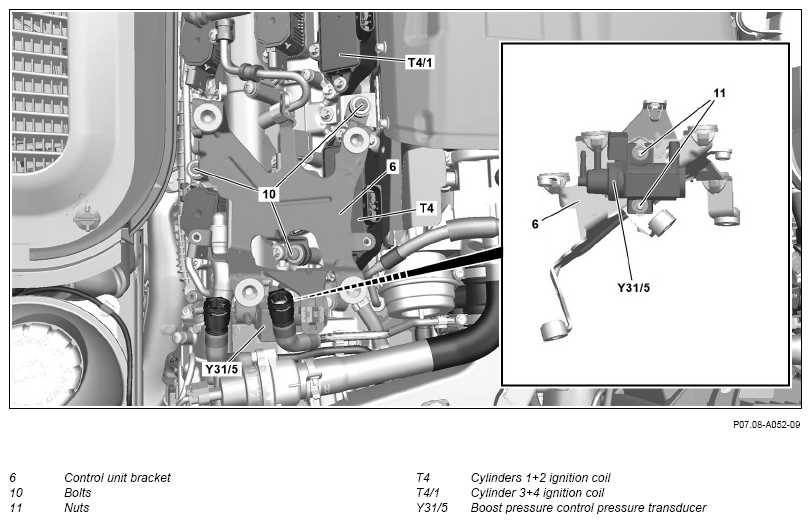

G15031701Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
Topical note  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
REMOVINGINSTALLING Remove/install
1 Remove right air filter housing.   AR09.10-P-1152MNP
2 Remove ME-SFI [ME] control unit (N3/10).   AR07.08-P-7013MNO
3 Release and disconnect electrical connector of ignition coil for cylinders 1+2 (T4) and ignition coil for cylinders 3+4 (T4/1).
4 Unscrew screw (8) and remove the differential pressure sensor for the right gasoline particulate filter (B163/6) with the bracket from the control unit bracket (6). Engine 177 in model 167
with code 961 (Exhaust system with OPF, generation 2.0)
TORQUE SPECIFICATION Bolt, differential pressure sensor/holder to holder for pressure hoses
*BA07.04-P-1004-01Q
5 Remove screws (2).
6 Unclip holder (7). SPECIAL TOOL Dismantling tool Fig 1
7 Remove engine wiring harness (1) with cable duct (3) from control unit bracket (6). SPECIAL TOOL Dismantling tool Fig 1
8 Open cable duct (3) and disconnect cable ties of engine wiring harness and/or cable duct. INSTALLATION IMPORTANT Replace cable tie.
9 Remove cable duct (3).
10 Remove vacuum lines (9) from boost pressure control pressure transducer (Y31/5) and from control unit bracket (6). SPECIAL TOOL Dismantling tool Fig 1
11 Unscrew screws (10) and remove control unit bracket (6). TORQUE SPECIFICATION Screw/bolt, control unit bracket to engine support/belt tensioner carrier/alternator bracket *BA07.08-P-1001-01G
12 Remove nuts (11) and remove boost pressure control pressure transducer (Y31/5) from control unit bracket (6). When control unit bracket (6) is replaced.
TORQUE SPECIFICATION Bolt/nut, pressure transducer to bracket/charge air cooler
*BA09.41-P-1009-01X
13 Install in the reverse order.
SENSORS

Number Designation Engine 177
BA07.04-P-1004-01Q Bolt, differential pressure sensor/holder to holder for pressure hoses M6 Nm 8
CONTROL UNIT

Number Designation Engine 177
BA07.08-P-1001-01G Screw/bolt, control unit bracket to engine support/belt tensioner carrier/alternator bracket Nm 9
CHARGE AIR LINE/CHARGE AIR COOLING

Number Designation Engine 177
BA09.41-P-1009-01X Bolt/nut, pressure transducer to bracket/charge air cooler Nm 6
Fig 1: Identifying Dismantling Tool (000 589 95 63 00)
G12619044Courtesy of MERCEDES-BENZ USA
