Remove/Install Additional Radiator For Low Temperature Circuit On Wheel Arch At Right - AR09.41-P-6950MSC
Engine 256.9 In Model 167

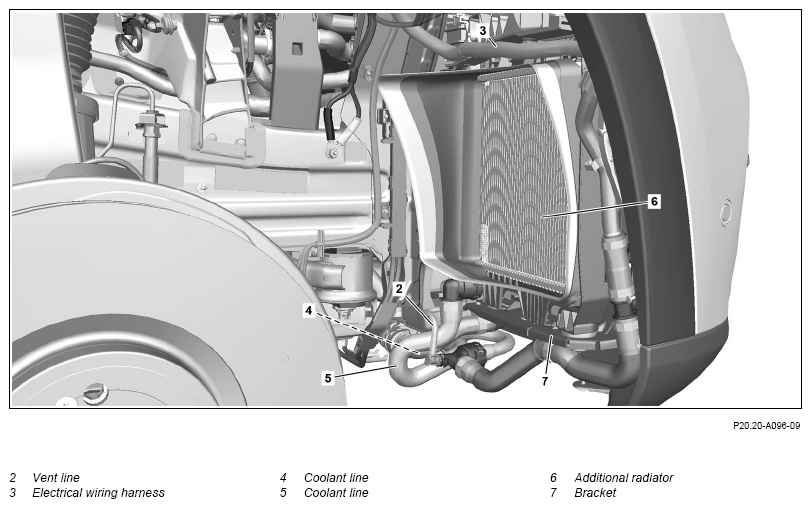

Fig 1: Additional Radiator For Low Temperature Circuit On Wheel Arch At Right Components Location - Engine 256.9 In Model 167
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. | AS20.00-Z-0001-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Drain coolant of the engine cooling circuit. | AR20.00-P-1142MSC | |
| 2 | Remove right front wheel and tire assembly. | AR40.10-P-1102ME | |
| 3 | Remove front section of the front right fender liner. | AR88.10-P-1301ME | |
| 4 | Remove front bumper. | AR88.20-P-2000ME | |
| 5 | Remove nut (1). | *BA20.20-P-1005-02MRT | |
| 6 | Unclip bleed line (2) and place to one side. | ||

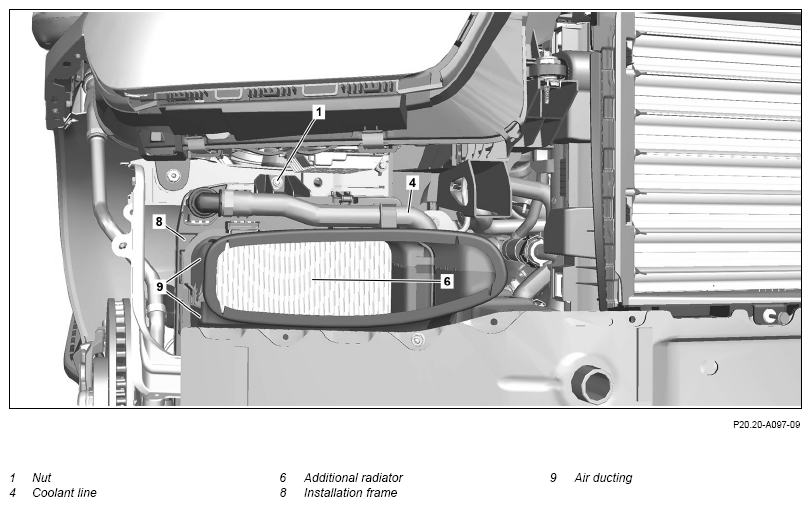

| 7 | Unclip electrical wiring harness (3) from the carrier. | Fig 2 | |
| 8 | Remove coolant line (4) at the separating point from the additional cooler (6). | AR20.20-P-7441-01RQ | |
| 9 | Remove coolant line (5) from the additional cooler (6). | AR20.20-P-7441-01RQ | |
| 10 | Remove additional cooler (6) from the stud bolt of the nut (1) and remove from the bracket (7) using a suitable tool. | ||
| 11 | Swivel out additional cooler (6) in the bottom area toward the rear and remove. | *BR00.45-Z-1010-06A | |
| Check | |||
| 12 | Check elastomer bearings of the installation frame (8) for damage. | If damage is present, ↓ replace elastomer bearings of the installation frame (8). |
|
| 13 | Remove air ducting (9) from the additional cooler (6). | When installing a new additional cooler (6). | |
| 14 | Remove additional cooler (6) from the installation frame (8). | When installing a new additional cooler (6). | |
| 15 | Install in the reverse order. | ||
| Check | |||
| Risk of burn injuries, suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 16 | Perform engine test run. While doing so, check engine for proper operation and leak tightness |
ENGINE RADIATOR, COOLANT HOSES AND LINES
| Number | Designation | Engine 256 | |
|---|---|---|---|
| BA20.20-P-1005-02MRT | Bolt/nut, wheel arch radiator to bracket | Nm | 8 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-06A | Lubricant, rubber assembly 1 L | A 000 989 03 67 |
