Remove/Install Charge Air Pressure And Temperature Sensor Downstream Of Throttle Valve - AR09.41-P-2012MSC
Engine 256.9 In Model 167

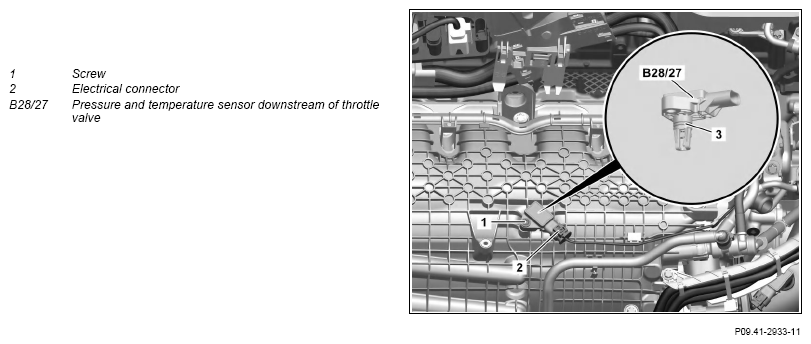

Fig 1: Charge Air Pressure And Temperature Sensor Downstream Of Throttle Valve Components Location - Engine 256.9 In Model 167
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove air filter housing. | AR09.10-P-1150MSC | |
| 2 | Release and disconnect electrical connector (2). | ||
| 3 | Remove screw (1). | *BA09.41-P-1012-01MRT | |
| 4 | Remove pressure and temperature sensor downstream of throttle valve (B28/27). | ||
| 5 | Install in the reverse order. | ||
| 6 | Read out and delete fault memory. | ||
| AD00.00-P-2000-06ME | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Carry out engine test run and check engine for proper leaktightness and leaktightness. |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 256.9 | |
|---|---|---|---|
| BA09.41-P-1012-01MRT | Bolt, pressure sensor to charge air distributor | Nm | 6 |
