Remove/Install Radiator - AR20.20-P-3865MRK
Engine 264, 274 In Model 167
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Remove/install | |||
| 1 | Remove the radiator unit. | Engine 264 in model 167 | AR20.20-P-3871MRK |
| Engine 274.9 in model 167 | AR20.20-P-3871MRM | ||

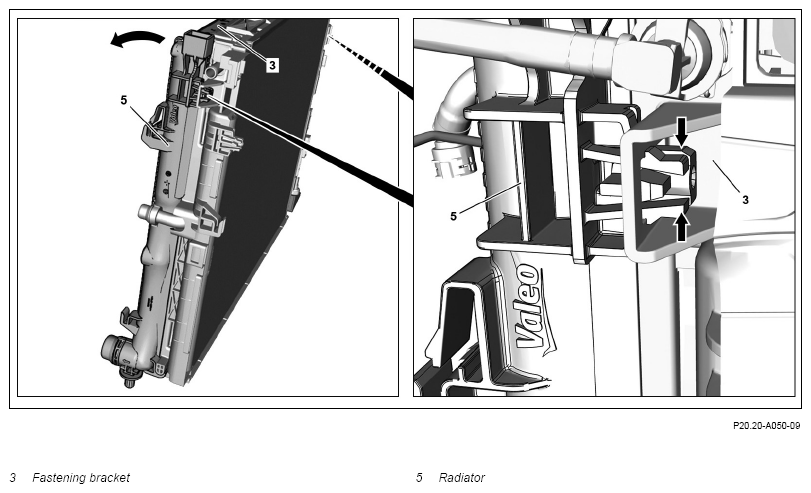

| 2 | Release catch hooks (arrows) on left and right and remove cooler (5) from mounting support (3). | ||
| 3 | Install in the reverse order. |
