Remove/Install Charge Air Pressure And Temperature Sensor Downstream Of Throttle Valve - AR09.41-P-2012MRK
Engine 264 In Model 167

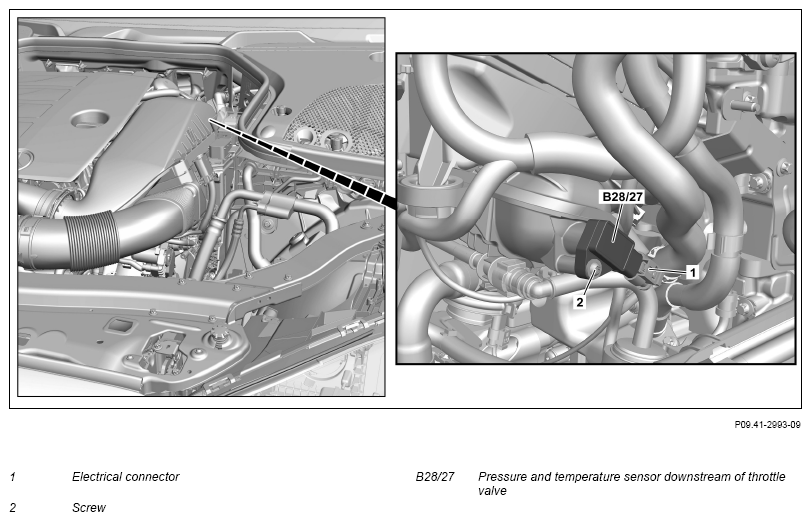

Fig 1: Charge Air Pressure And Temperature Sensor Downstream Of Throttle Valve Components Location - Engine 264 In Model 167
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove center and rear sections of lower engine compartment lining. | AR61.20-P-1105ME | |

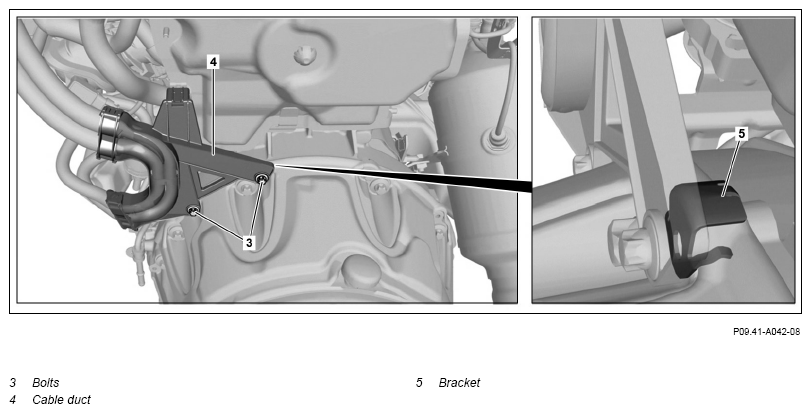

| 3 | Remove screws (3) at cable duct (4), unclip cable duct (4) and place to one side. | AH00.00-P-0007-01SF | |
| Topical note | Notes on bolted connections with self tapping screws | *BA27.10-P-1029-04H | |
| 4 | Release electrical connector (1) and disconnect. | ||
| 5 | Remove screw/bolt (2). | *BA09.20-P-1002-01H | |
| 6 | Remove pressure and temperature sensor downstream of throttle valve (B28/27) and sea opening with suitable stop plug. | Fig 2 | |
| 7 | Install in the reverse order | ||
| 8 | Connect vehicle diagnosis system, read out fault memory and clear if necessary. | ||
| AD00.00-P-2000-06ME |
INTAKE MANIFOLD
| Number | Designation | Engine 264 | |
|---|---|---|---|
| BA09.20-P-1002-01H | Bolt, pressure sensor to charge air distributor | Nm | 6 |
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.10-P-1029-04H | Screw, cable duct to transmission bell housing | Nm | 12 |
