Remove/Install Center Air Vent - AR83.10-P-4509ME

Model 167

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove cover (1).	Ensure that the clips (2) are seated correctly.
		Long wedge	Fig 1
2.1	Unclip trim strip (3) carefully until the electrical connector of the ambient lighting is accessible	Model 167 with code 876 (ambient lighting) Ensure that the clips are correctly seated on the trim strip (3).
2.2	Unclip and remove trim strip (3).	Model 167 except code 876 (ambient lighting) Ensure that the clips are correctly seated on the trim strip (3).
3	Release and disconnect the electrical connector.	Model 167 with code 876 (ambient lighting)
4	Place trim strip (3) down on a suitable base.
5	Remove screws (4) and remove center air vent (5).
6	Install in the reverse order.

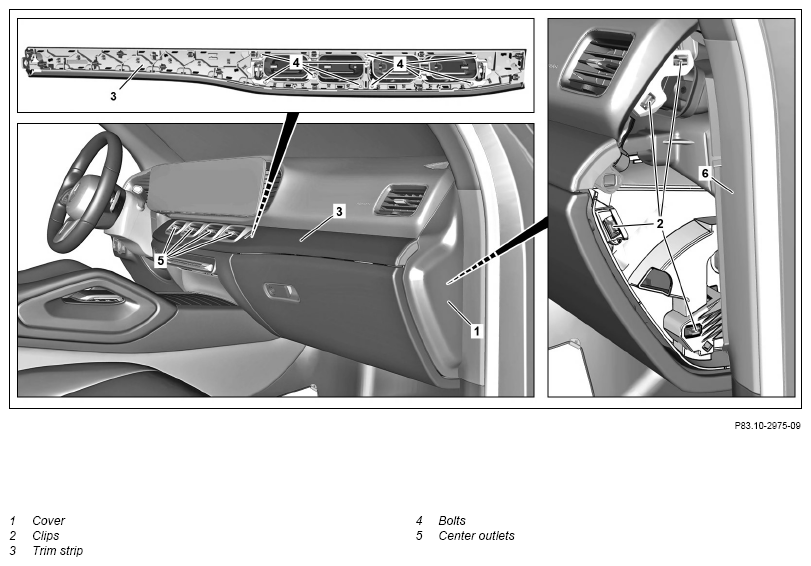

Fig 1: Identifying Long Wedge (115 589 03 59 00)
