Remove/Install Throttle Valve Actuator - AR07.70-P-0005MRK
Engine 264 In Model 167
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove charge air cooler bracket from timing case cover. | AR09.41-P-6817MRK | |

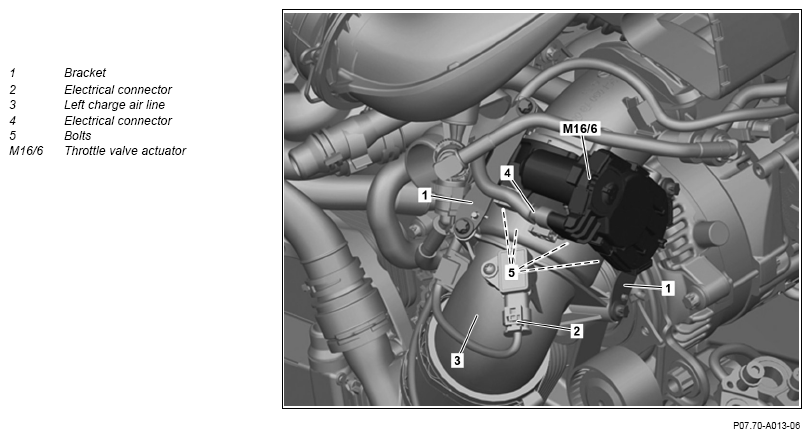

| 2 | Remove brackets (1). | *BA09.41-P-1003-01ZA | |
| 3 | Release, disconnect electrical connector (2) and unclip electrical wiring harness at left charge air line (3). | ||
| 4 | Remove left charge air line (3). | ||
| 5 | Release, disconnect electrical connector (4) and unclip electric line from throttle valve actuator (M16/6). | ||
| 6 | Unscrew screws (5) and remove throttle valve actuator (M16/6). | *BA30.20-P-1001-01E | |
| 7 | Install in the reverse order | ||
| 8 | Connect vehicle diagnosis system, read out fault memory and clear if necessary. | ||
| AD00.00-P-2000-06ME | |||
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Conduct engine test run while checking for proper operation of the engine. |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 264 | |
|---|---|---|---|
| BA09.41-P-1003-01ZA | Bolt, bracket for charge air line to charge-air distributor | Nm | 9 |
ELECTRONIC ACCELERATOR ACTUATOR
| Number | Designation | Engine 264 | |
|---|---|---|---|
| BA30.20-P-1001-01E | Bolt, throttle valve actuator to charge air distributor | Nm | 6 |
