Remove/Install Right Throttle Valve Actuator - AR07.51-P-1403MNO
Engine 176 In Model 167
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||

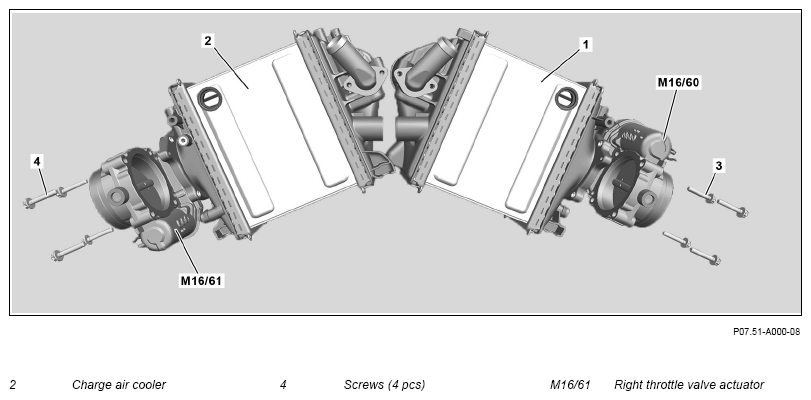

| 1 | Remove right charge air cooler (2). | AR09.41-P-6828MNO | |
| 2 | Remove screws/bolts (4). | *BA09.41-P-1008-01X | |
| 3 | Remove right throttle valve actuator (M16/61) from right charge air cooler (2). | ||
| 4 | Install in the reverse order. |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA09.41-P-1008-01X | Bolt, throttle valve actuator to charge air cooler | Nm | 9 |
