Tightening Procedure For Charge Air Distributor - AR09.41-P-8683-01MSA

Engine 254.9, 256.9

Topical note  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
MODIFICATION NOTES

17.03.2020 New operation steps added. Operation steps 3 and 4.
CHARGE AIR PIPE/CHARGE AIR COOLING

Number Designation Engine 254
BA09.41-P-1001-01GA Screw, charge-air distributor to cylinder head/crankcase support/oil filter holder Stage 1 Nm 8
Stage 2 ∠° 30
CHARGE AIR PIPE/CHARGE AIR COOLING

Number Designation Engine 256.9
BA09.41-P-1001-01MRT Screw/bolt, charge air distributor to cylinder head Nm 8

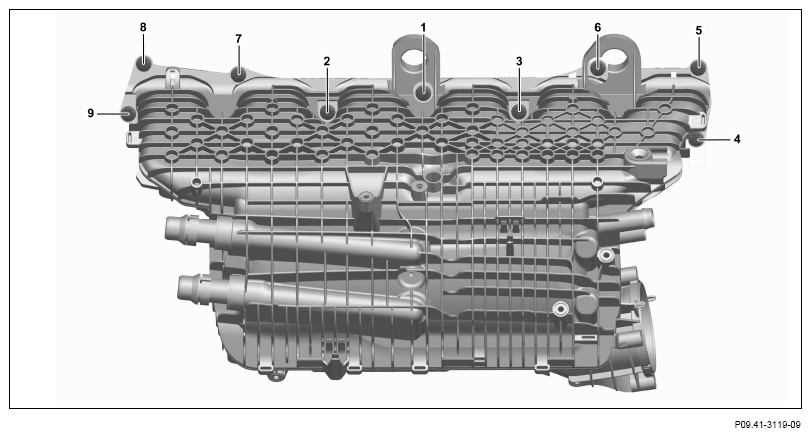

G14548238Courtesy of MERCEDES-BENZ USA

Shown On engine 256.9

  1. Tighten screws (1. to 9) in ascending numerical order Engine 256.9 TORQUE SPECIFICATION .
  2. Retighten screws (1 to 9) in ascending numerical order Engine 256.9 TORQUE SPECIFICATION .

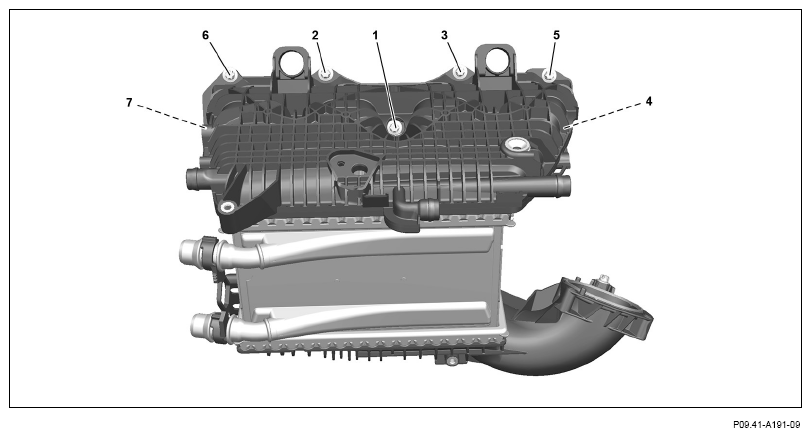

    G14548239Courtesy of MERCEDES-BENZ USA

    Shown On engine 254.9

  3. Tighten screws (1 to 7) in ascending numerical order Engine 254 TORQUE SPECIFICATION .
  4. Retighten screws (1 to 7) in ascending numerical order Engine 254 TORQUE SPECIFICATION .
