Tightening Procedure For Charge Air Distributor - AR09.41-P-8683-01MNE
Engine 177 In Model 167
Engine 177 in model 213, 217, 222
Engine 177 in model 463
as of model year 2019
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.41-P-1004-01X | Bolt, charge air distributor to cylinder head | Nm | 13 |

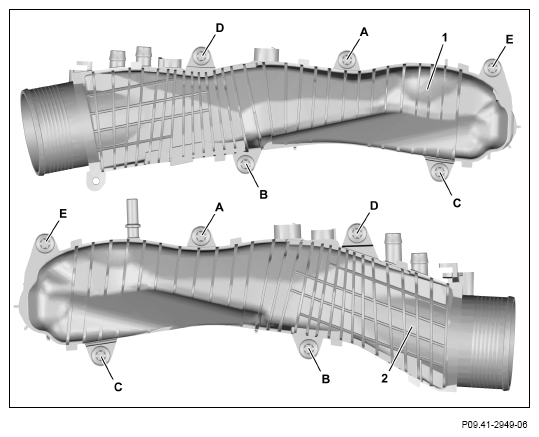

- Lightly tighten screws (A to E) of the left and right charge air distributor (1, 2) by hand in the alphabetic sequence.
- Tighten screw/bolts (A to E) of the left and right charge air distributor (1, 2) in the alphabetic sequence
.
