Wiper Blade Heater, Basic Function - GF82.30-P-2005A

Model All (CAR)

With Code 874 (MAGIC VISION CONTROL incl. heated windshield washer system)

Courtesy of MERCEDES-BENZ USA

Overview

This document contains the following information:

• General
• Function requirement
• Function

General

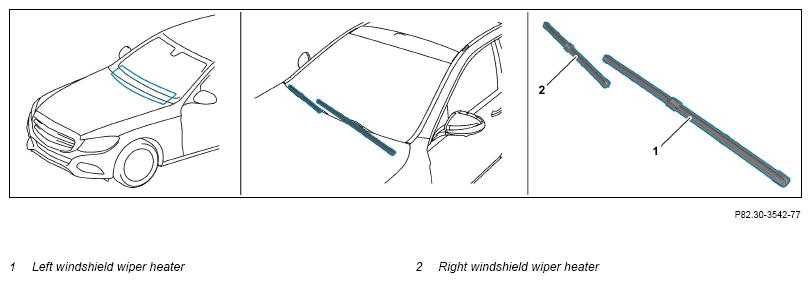

The wiper blade heater is integrated as foil into the wiper blades.

Function requirement

Engine running or drive train operational

Function

When a voltage is applied, the foil heats up because of the electrical resistance. The heat is used to prevent the washer fluid nozzles in the wiper blades from freezing and to prevent the wiper rubber sticking to the windshield.

Their flexibility is retained by heating up the wiper blades all over.

The wiper blade heater is actuated by the front signal acquisition and actuation module.

	Component description
	Wiper blade/wiper arm hose heater, component description	Model 223 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system)	GF82.30-P-9903A
		Model 232 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system)	GF82.30-P-9903F
