Wiring Diagram For Sound Generator Control Unit - PE54.21-P-2115-97NCA

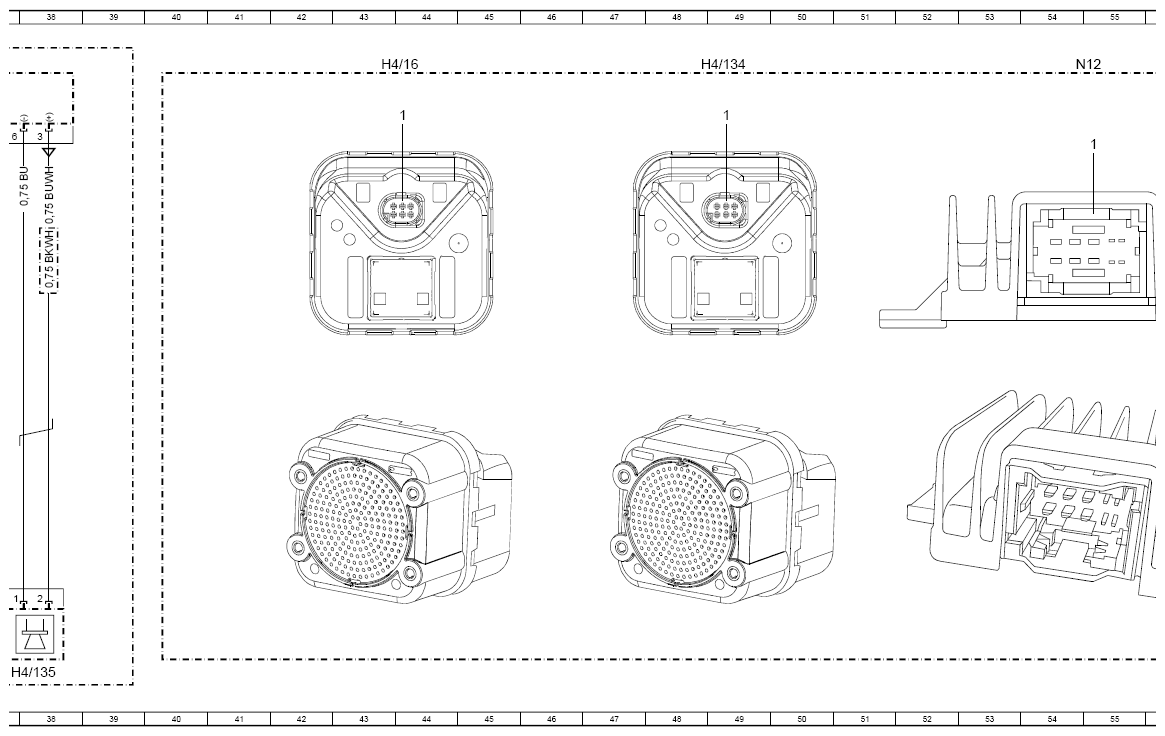

Model 167 with code B53 (External noise sound generator for hybrids and EV) Sound generator H4/16
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 72L |
| CAN L | Hybrid CAN | 11K |
| CAN L | Hybrid CAN | 21K |
| CAN L | Hybrid CAN | 33K |
| Code 801 | YoM 20/1 | 1A |
| Code 801 | YoM 20/1 | 23A |
| Code B53 | Acoustic ambient protection | 1A |
| Code B53 | Acoustic ambient protection | 23A |
| F152/3 | Engine compartment fuse and relay module | 8L |
| F152/3 | Engine compartment fuse and relay module | 17L |
| F152/3 | Engine compartment fuse and relay module | 30L |
| F152/3f109 | Fuse 109 | 7L |
| F152/3f109 | Fuse 109 | 28L |
| F152/3f128 | Fuse 128 | 16L |
| H4/11 | Front sound generator | 36L |
| H4/134 | Sound generator 2 | 49A |
| H4/134 | Sound generator 2 | 17A |
| H4/134 | Sound generator 2 | 67A |
| H4/135 | Rear end sound generator | 38L |
| H4/16 | Sound generator | 8A |
| H4/16 | Sound generator | 60A |
| H4/16 | Sound generator | 43A |
| N12 | Sound generator control unit | 29A |
| N12 | Sound generator control unit | 37A |
| N12 | Sound generator control unit | 54A |
| N12 | Sound generator control unit | 66A |
| W2 | Right front ground point at lamp unit | 9E |
| W29/9 | Right D-pillar ground point | 30E |
| W6 | Left wheel arch trunk ground point | 18E |
| X25/7x1 | Engine compartment/interior wiring harness electrical connector | 15F |
| X25/7x1 | Engine compartment/interior wiring harness electrical connector | 28F |
| X25/7x1 | Engine compartment/interior wiring harness electrical connector | 35F |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 11L |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 21L |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 33L |
| Z37/87z1 | Hybrid CAN (high) connector sleeve | 20F |
| Z37/88z1 | Hybrid CAN (low) connector sleeve | 21F |
