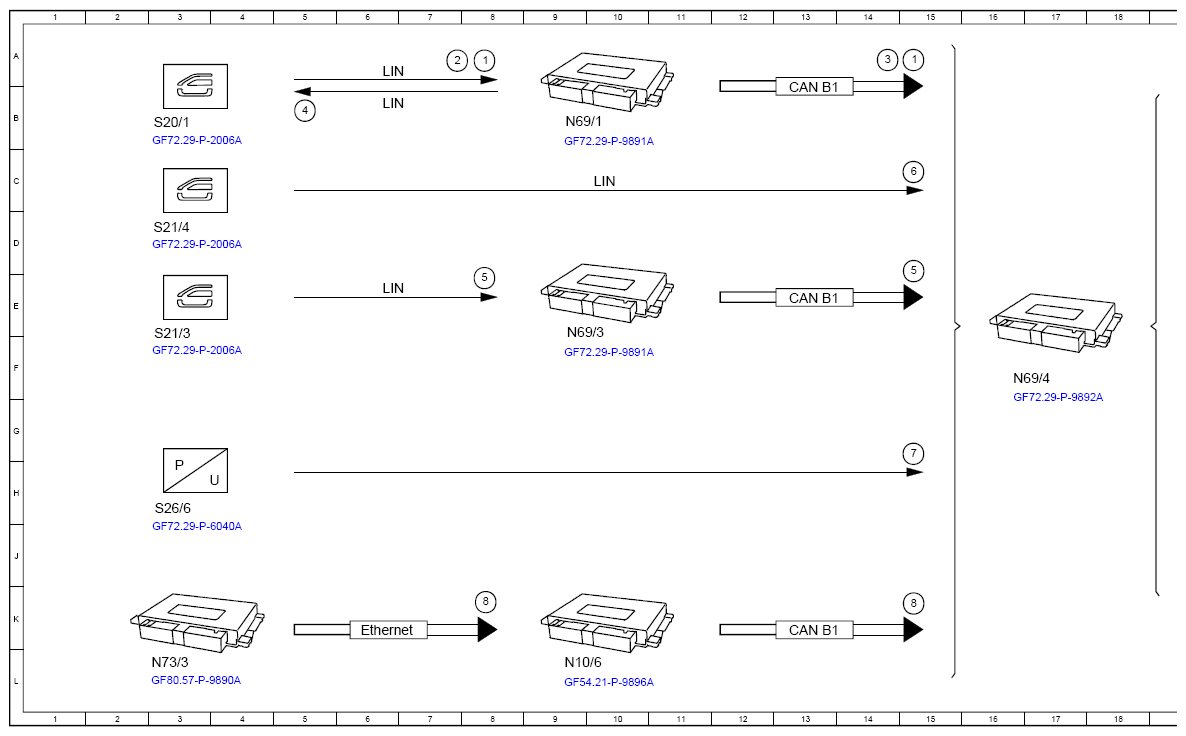

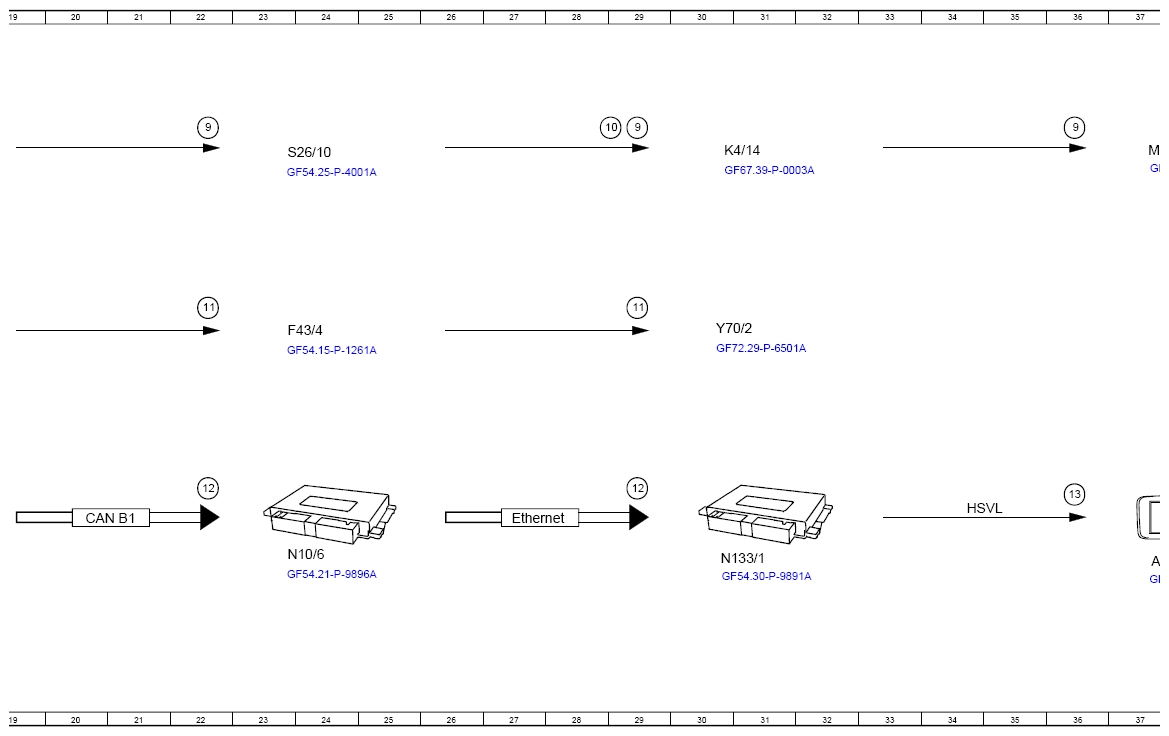

(Function Schematic For Actuation Of Hydraulic Power Window Assembly - PE67.39-P-2503-97D)
Model 223 with code Z14 (Right rear power window for special protection)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Left front power window assembly switch, status | 8A |
| 1 | Left front power window assembly switch, status | 15A |
| 10 | Power window hydraulic pump temperature switch, status | 29B |
| 11 | Solenoid valve, actuation | 22E |
| 11 | Solenoid valve, actuation | 29E |
| 12 | Instrument cluster message, request | 22H |
| 12 | Instrument cluster message, request | 29H |
| 13 | Image data, signal | 36H |
| 2 | Child safety lock switch, status | 7A |
| 3 | Rear side window child safety lock, status | 14A |
| 4 | Rear side window child safety lock readiness indicator, request | 5B |
| 5 | Right rear passenger compartment power window assembly switch, status | 8E |
| 5 | Right rear passenger compartment power window assembly switch, status | 18E |
| 6 | Left rear passenger compartment power window assembly switch, status | 15C |
| 7 | Hydraulic power window pressure switch, status | 15H |
| 8 | Circuit 15, status | 15K |
| 8 | Circuit 15, status | 8K |
| 9 | Power window hydraulic pump, actuation | 22B |
| 9 | Power window hydraulic pump, actuation | 29B |
| 9 | Power window hydraulic pump, actuation | 36B |
| A40/18 | Instrument cluster display | 37J |
| CAN B1 | CAN 1 for vehicle interior | 13K |
| CAN B1 | CAN 1 for vehicle interior | 20H |
| CAN B1 | CAN 1 for vehicle interior | 13B |
| CAN B1 | CAN 1 for vehicle interior | 13E |
| Ethernet | Ethernet | 6K |
| Ethernet | Ethernet | 27H |
| F43/4 | Right rear door hydraulic power window assembly fuse block | 23E |
| HSVL | High-speed video link | 34H |
| K4/14 | Right rear door power window hydraulic pump relay | 30C |
| LIN | Local Interconnect Network | 6A |
| LIN | Local Interconnect Network | 6B |
| LIN | Local Interconnect Network | 10C |
| LIN | Local Interconnect Network | 6E |
| M51/9 | Right rear door power window hydraulic pump | 37C |
| N10/6 | Front signal acquisition and actuation module control unit | 9L |
| N10/6 | Front signal acquisition and actuation module control unit | 23J |
| N133/1 | Instrument cluster control unit | 30J |
| N69/1 | Left front door control unit | 9B |
| N69/3 | Left rear door control unit | 9F |
| N69/4 | Right rear door control unit | 16F |
| N73/3 | Electronic ignition switch control unit | 3L |
| S20/1 | Button group for power window and outside mirror adjustment, driver-side door | 3B |
| S21/3 | Button group for left rear door power window | 3F |
| S21/4 | Button group for right rear door power window | 3D |
| S26/10 | Right rear door power window hydraulic pump temperature switch | 23C |
| S26/6 | Right rear door hydraulic window lifter pressure switch | 3H |
| Y70/2 | Right rear door hydraulic power window lifter valve unit | 30E |
