Remove/Install Paneling On A-Pillar - AR68.30-P-4050ME

Model 167

Courtesy of MERCEDES-BENZ USA

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install

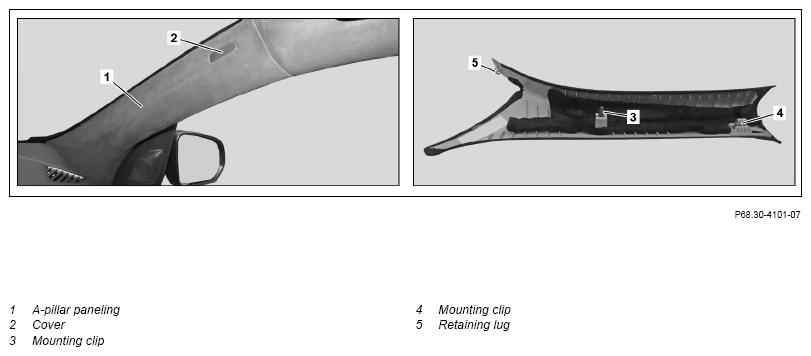

1	Unclip cover (2).	Long wedge	Fig 1
2	Unclip trim on the A-pillar (1) from the retaining clips (3, 4) and from the retaining clamp (5) and swivel slightly inward at the top.	Ensure that the edge guard on the trim on the A-pillar (1) is seated correctly.
		Long wedge	Fig 1
3	Release retaining lug (5) and pull trim on the A-pillar (1) toward the rear at the top out of the instrument panel and remove.	Long wedge	Fig 1
4	Install in the reverse order.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
