Front Roof Frame Prepare For Installation - Ar65.20-P-1006-04ME

Model 167.1

The higher-level service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

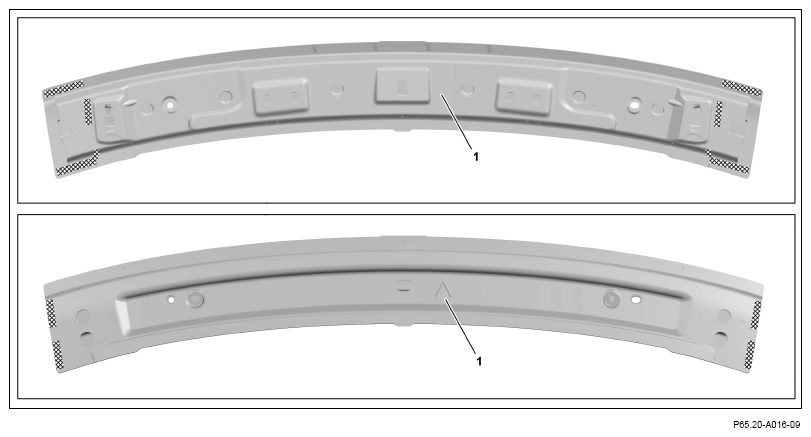

1. Grind mating surfaces on roof frame (1) down to bare metal in crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

2. Remove grinding dust.
3. Coat insides of spot weld flanges with zinc dust paint.
