Remove/Install Rear Door Armrest - AR72.12-P-1020ME
Model 167
| Remove/install | |||

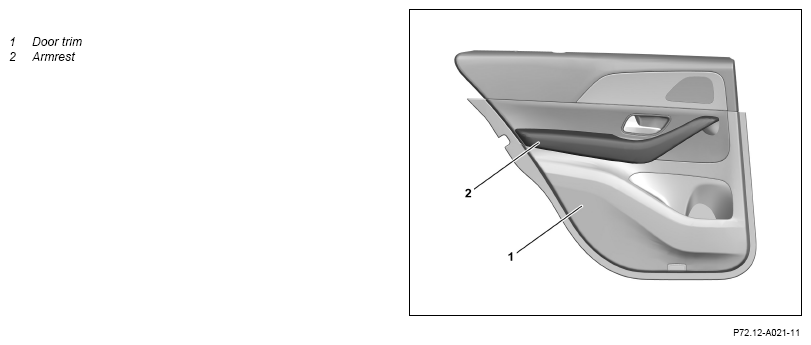

| 1 | Remove door trim (1). | AR72.12-P-1011ME | |
| 2 | Remove mat cover. | ||
| 3 | Unhook electric line from door trim (1). | Model 167 with code 907 (Rear armrest heater) |
|

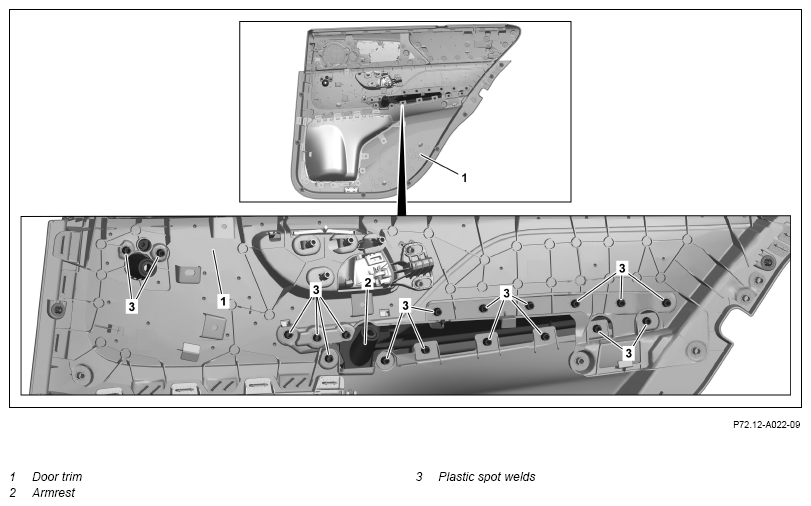

| 4.1 | Drill plastic spot welds (3) and remove armrest (2). | If the armrest (2) is fastened with plastic spot welds (3). | |
| AR72.00-P-0001-01LW | |||
| 4.2 | Unscrew screws and remove armrest (2). | If the armrest (2) is fastened with screws. | |
| 5 | Remove panel with electric power window switch at armrest (2). | When replacing armrest (2). | |
| AR72.29-P-0002ME | |||
| 6 | Install in the reverse order. |
