Remove/Install Front Door - AR72.10-P-0500ME
Model 167
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||

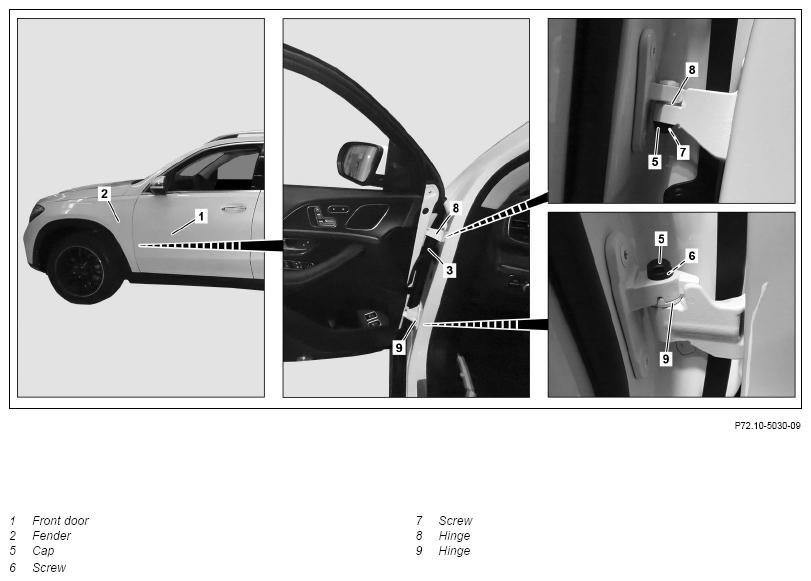

| 1 | Fully lower front door side window (1). | ||
| 2 | Clamp off ground line of on-board electrical system battery (G1). | AR54.10-P-0003ME | |
| 3 | Mask off fender (2) and front door (1) from the center to the top edge in the area of the A-pillar with fabric tape. | ||
| 4 | Release and disconnect front door electrical connector from the body. | ||
| 5 | Remove covers (5). | ||
| 6 | Remove screws (6, 7) of the hinges (8, 9). | Repair paint damage in the area of the screws (6, 7). |
|
| *BA72.10-P-1005-01O | |||
| 7 | Remove front door (1) from the hinge leaves and set down on a suitable base. | Carefully remove front door (1) and insert. Otherwise paint damage can occur. |
|
| 8 | Install in the reverse order. | ||
| Check | |||
| 9 | Check gap dimensions of the front door (1) and adjust if necessary. | AR72.10-P-0550ME | |
| 10 | Repair paint damage on the respective bolt heads (6, 7). | Overview of MB materials and how they are processed | AR98.00-P-0150CW |
| Risk of explosion and poisoning caused by solvent vapors and gasses. Risk of injury to skin and eyes when working with anticorrosion agents | Never spray corrosion protection on flames or hot, glowing objects and keep them well away from all potential sources of ignition. Use them only in well-ventilated rooms; wear respiratory protection. | AS97.00-Z-0001-01A | |
| 11 | Protect front door (1) in the area of the hinges (8, 9) against corrosion; remove excess wax. | Wax for engine compartment (400 ml spray can) | *BR00.45-Z-1018-05A |
| 12 | Normalize power window assembly. |
FRONT DOOR
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA72.10-P-1005-01O | Bolt at hinge leaf connection | Nm | 32 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1018-05A | Wax for engine compartment (400 ml spray can) | A 000 986 33 70 10 |
