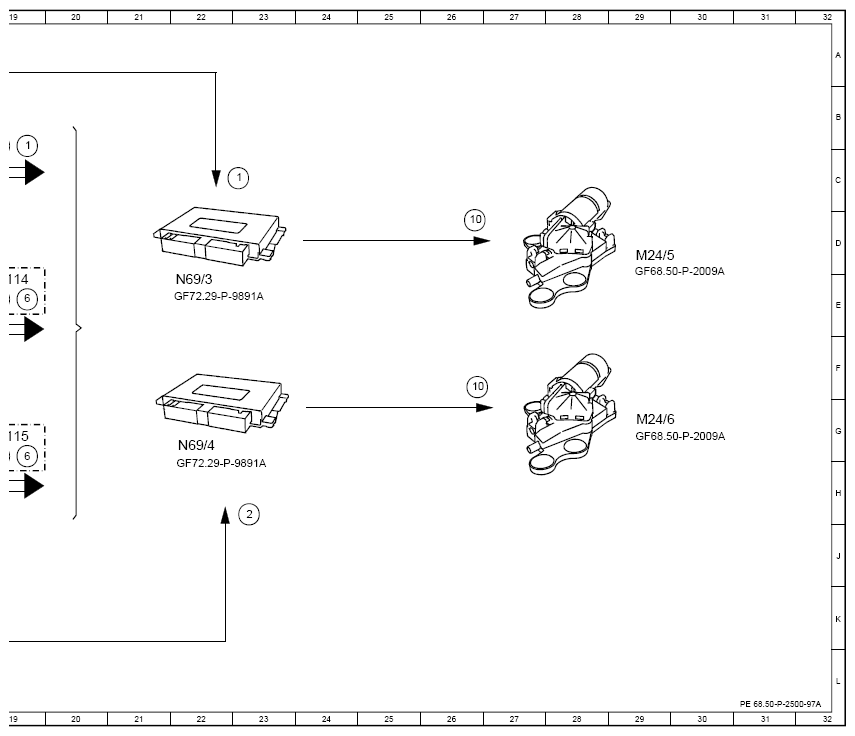

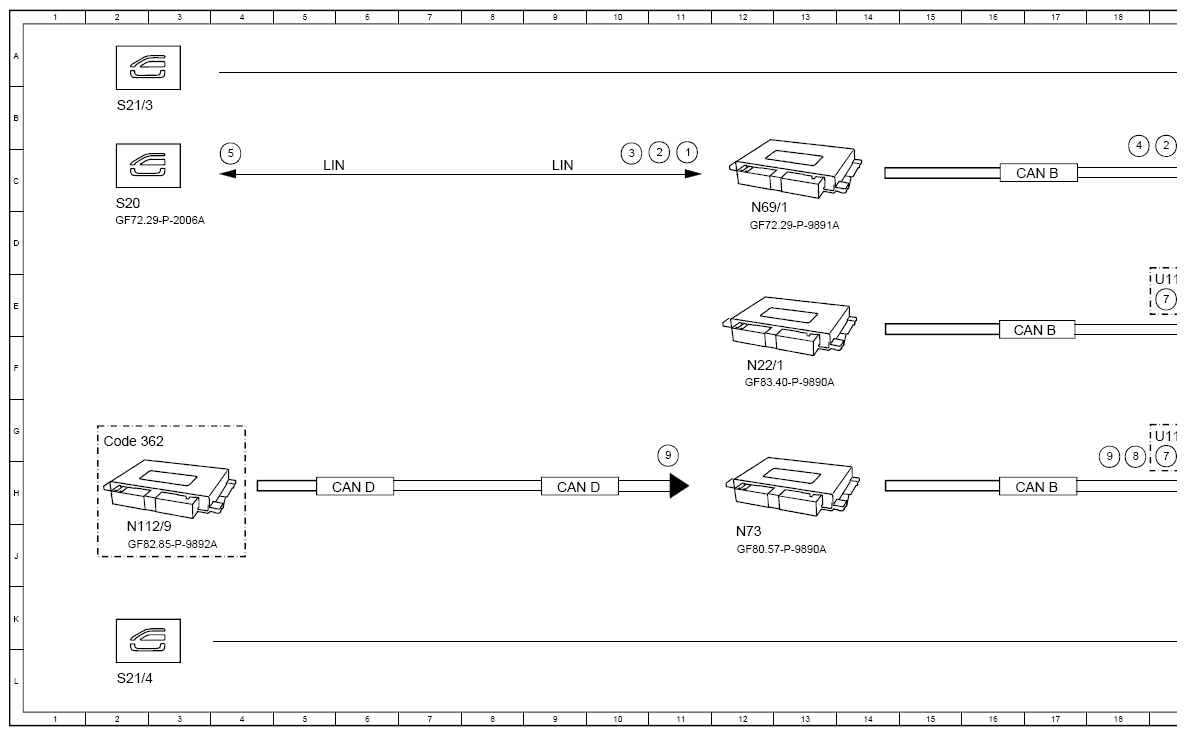

Extend/Retract Rear Passenger Compartment Side Window Roller Sunblind, Function Schematic - PE68.50-P-2500-97A
Model 167 (except 167.967/987)
with code 297 (Electric roller sun blind in left and right rear door)
except code M036 (Maybach version)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Left rear passenger compartment power window assembly switch, status | 11C |
| 1 | Left rear passenger compartment power window assembly switch, status | 19C |
| 1 | Left rear passenger compartment power window assembly switch, status | 23C |
| 10 | Rear door roller sun blind motor, actuation | 26D |
| 10 | Rear door roller sun blind motor, actuation | 26F |
| 2 | Right rear passenger compartment power window assembly switch, status | 23H |
| 2 | Right rear passenger compartment power window assembly switch, status | 11C |
| 2 | Right rear passenger compartment power window assembly switch, status | 19C |
| 3 | Child safety lock switch, status | 10C |
| 4 | Rear side window child safety lock, status | 18C |
| 5 | Rear side window child safety lock readiness indicator, request | 4C |
| 6 | Convenience feature, status | 19G |
| 6 | Convenience feature, status | 19E |
| 7 | Convenience feature direction, signal | 19G |
| 7 | Convenience feature direction, signal | 19E |
| 8 | Circuit 15, status | 18G |
| 9 | Window lifter remote control, request | 18G |
| 9 | Window lifter remote control, request | 11G |
| CAN B | Interior CAN | 17H |
| CAN B | Interior CAN | 17E |
| CAN B | Interior CAN | 17C |
| CAN D | Diagnostic CAN | 9H |
| CAN D | Diagnostic CAN | 6H |
| Code 362 | HERMES LTE | 2G |
| LIN | Local Interconnect Network | 9C |
| LIN | Local Interconnect Network | 5C |
| M24/5 | Left rear door roller sun blind motor | 29D |
| M24/6 | Right rear door roller sun blind motor | 29G |
| N112/9 | HERMES control unit | 2J |
| N22/1 | Climate control control unit | 12F |
| N69/1 | Driver door control unit | 12D |
| N69/3 | Left rear door control unit | 22E |
| N69/4 | Right rear door control unit | 22G |
| N73 | Electronic ignition switch control unit | 12J |
| S20 | Driver-side power window and outside mirror adjustment switch group | 2C |
| S21/3 | Left rear power window switch | 2B |
| S21/4 | Right rear power window switch | 2L |
| U1114 | Valid for convenience feature via air recirculation function | 19E |
| U1115 | Valid for convenience feature via central locking system | 19G |
