Remove/Install Rear Center Console - AR68.20-P-2021ME
Model 167.1 with code 847 (3rd seat row)
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Remove rear seats of the 3rd seat row. | AR91.12-P-0007ME | |

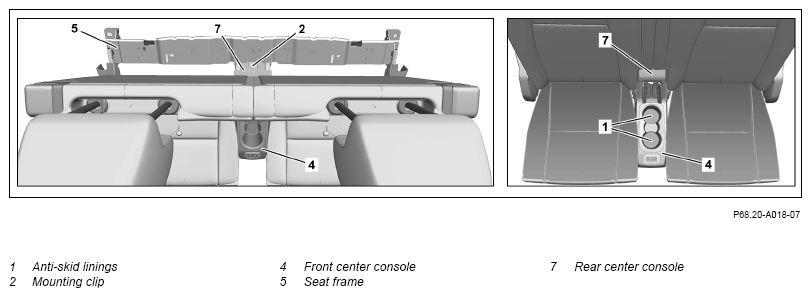

| 2 | Remove anti-skid linings (1). | ||

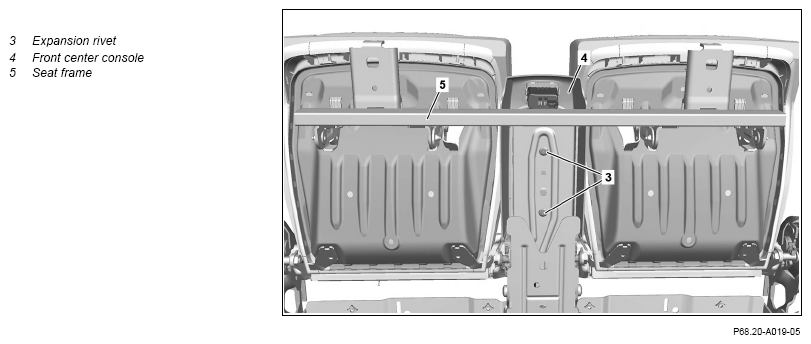

| 3 | Remove expansion rivets (3). | Fig 1 | |
| 4 | Remove retaining clip (2). | Fig 1 | |
| 5 | Remove front center console (4) from the seat frame base (5) and remove. | ||

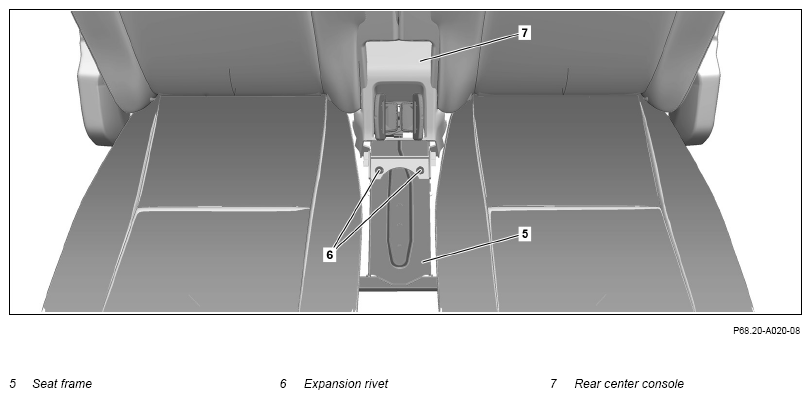

| 6 | Remove expansion rivets (6). | Fig 1 | |
| 7 | Remove rear center console (7). | ||
| 8 | Remove center USB port for 3rd seat row (X58/60). | Model 167.1 with code 72B (Additional USB ports) with code 847 (3rd seat row) If a new front center console (4) is installed. |
|
| 9 | Install in the reverse order. |
