(Remove/Install Rear Center Console - AR68.20-P-2020MEM)

Model 167.9

with code 224 (Individual rear seats)

with code M036 (Maybach version)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove seat backrests in the rear passenger compartment.		AR91.12-P-1713MEM
2	Remove stowage compartment in the rear passenger compartment.		AR68.20-P-2500MEM
3	Remove 115 V/230 V socket in rear stowage compartment.	Model 167.9 with code 224 (Individual rear seats) with code M036 (Maybach version) with code U67 (230 V socket in rear passenger compartment) Model 167.9 with code 224 (Individual rear seats) with code M036 (Maybach version) with code U80 (115 V socket)
			AR54.10-P-1002MEM
4	Remove rear cover from center console.		AR68.20-P-2358MEM

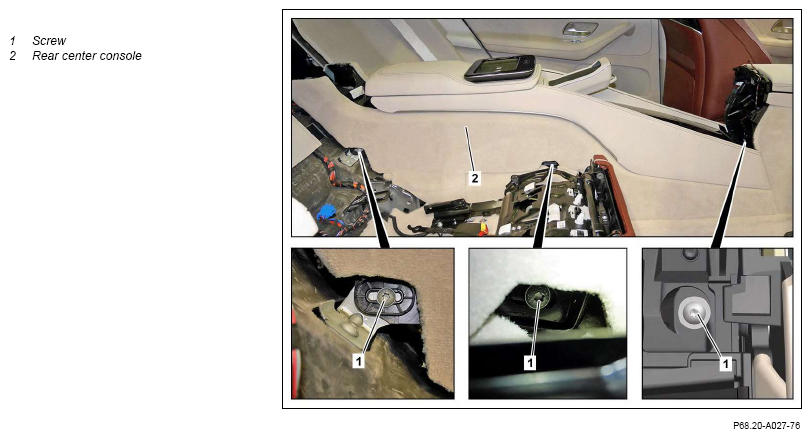

5	Unscrew screws (1) on left and right at rear center console (2).

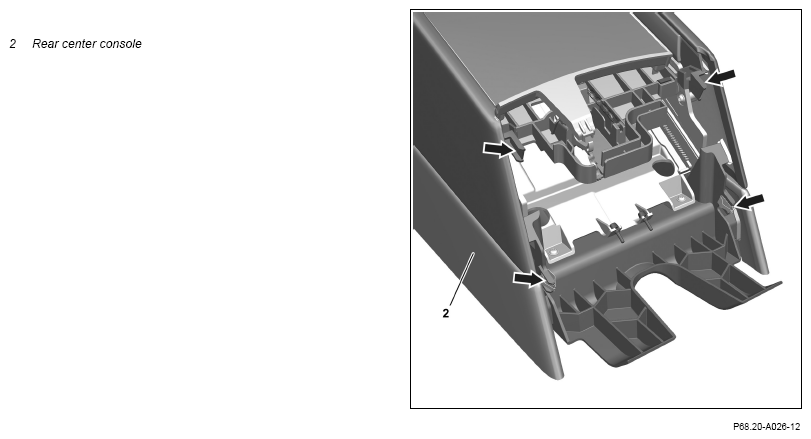

6	Slightly pull rear center console (2) towards rear and unclip from front center console and move out (arrows).	Ensure that rear center console (2) is correctly engaged in front center console.
7	Lift rear center console (2) in rear area and support with suitable means.	Aid of helper required. Electrical connectors in rear area of rear center console (2) must be accessible.
8	Release and disconnect electrical connectors in rear area of rear center console (2).	The number of electrical connectors varies according to vehicle equipment.
9	Remove rear center console (2) from vehicle.	Carefully remove and insert rear center console (2). Otherwise, parts in vehicle interior and/or rear center console (2) can be damaged. Aid of helper required.
10	Install in the reverse order.
