Rear Passenger Compartment Side Window Roller Sunblind Motor, Basic Function - GF68.50-P-2009A
Model All (CAR)
with code 297 (Electric roller sun blind in left and right rear door)
Model All (CAR)
with code M036 (Maybach version)
Location

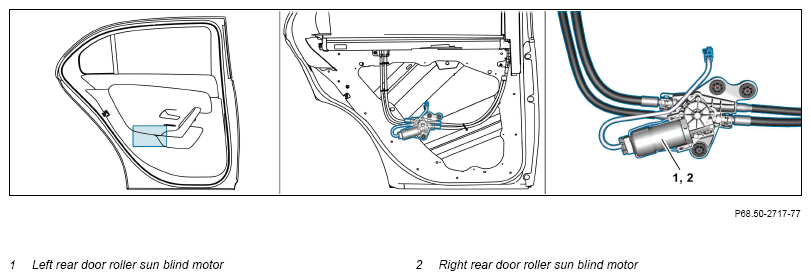

The rear door roller sunblind motors are located in the respective rear door.
The rear passenger compartment side window roller sunblind motors are on either side in the area of the D-pillar.
Task
The roller sunblind motors drive the roller sunblind linkage and thus facilitate opening and closing of the roller sunblinds of the rear doors and side windows. Triggered by the control elements in the rear passenger compartment, they are actuated respectively, depending on the side, by the left rear door control unit or by the right rear door control unit. If the driver operates the roller sunblinds, the roller sunblind motors are actuated directly by the driver's door control unit. The position of the roller sunblind is defined by the evaluation of the signals of the Hall sensor in the roller sunblind motor.
