Foam-Protected Insulation In Body Notes - Ah60.00-P-0041-01A
Model 167, 205, 253, 257, 290
Model 463
as of model year 2019

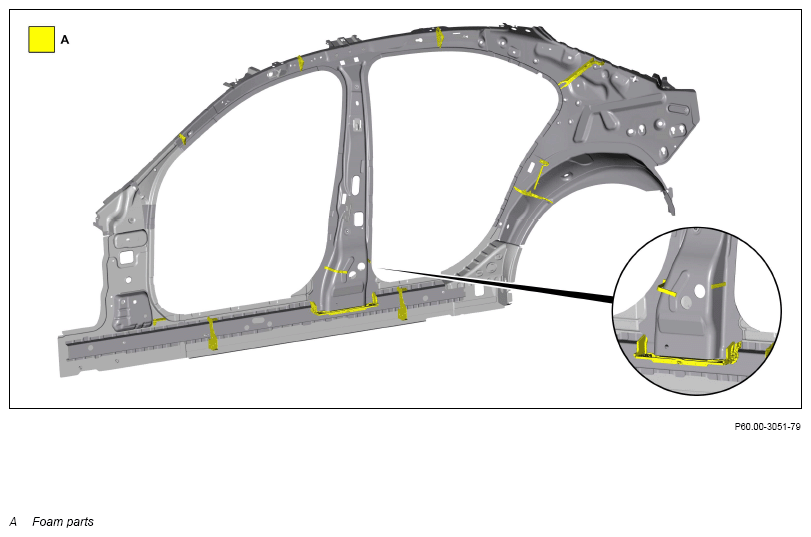

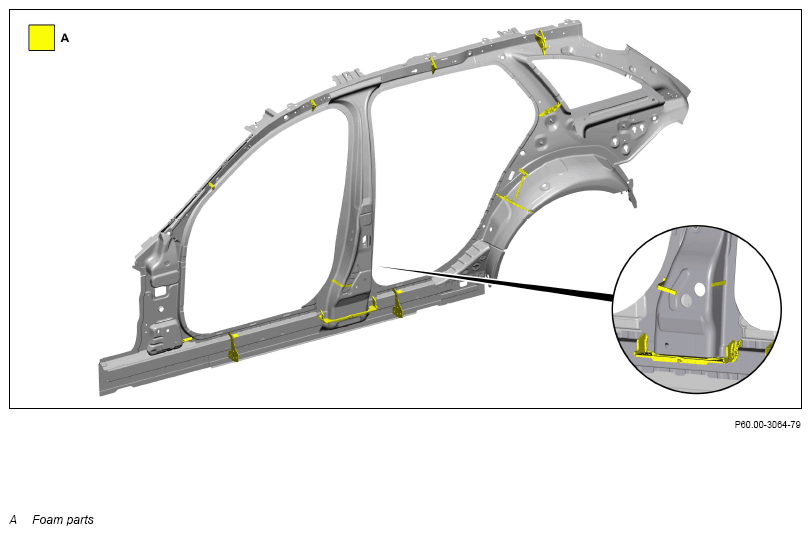

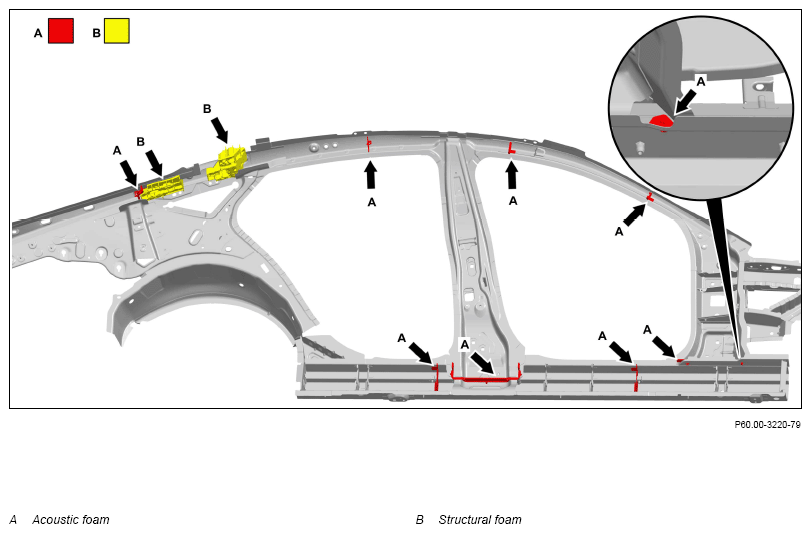

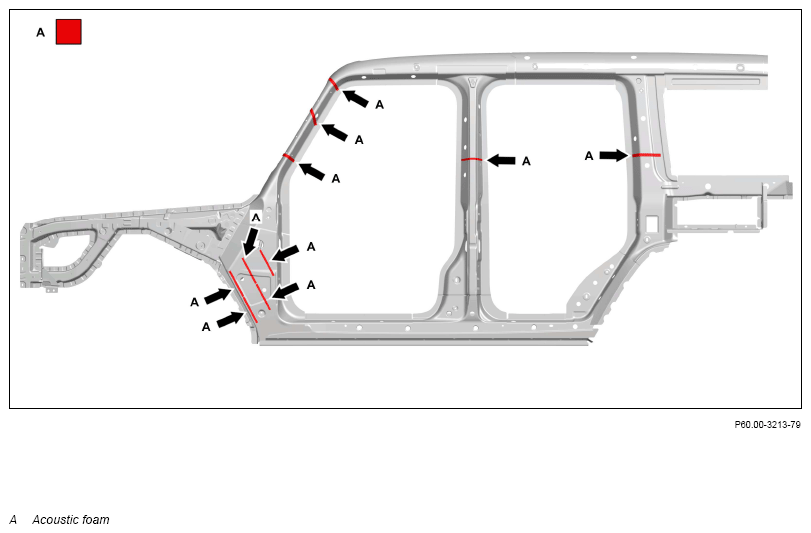

Foam items in area of sidewall (shown on left side of vehicle)
Model 167, 290
Structural foam pieces must be replaced if they cannot be left in the vehicle undamaged. 2-component structural foam adhesive is used as filling foam and to fit the carrier parts.
Model 167, 205, 253, 257, 290
Model 463
as of model year 2019
Acoustic foam part replacements are inserted using sealant at all the cleaned body contact surfaces.

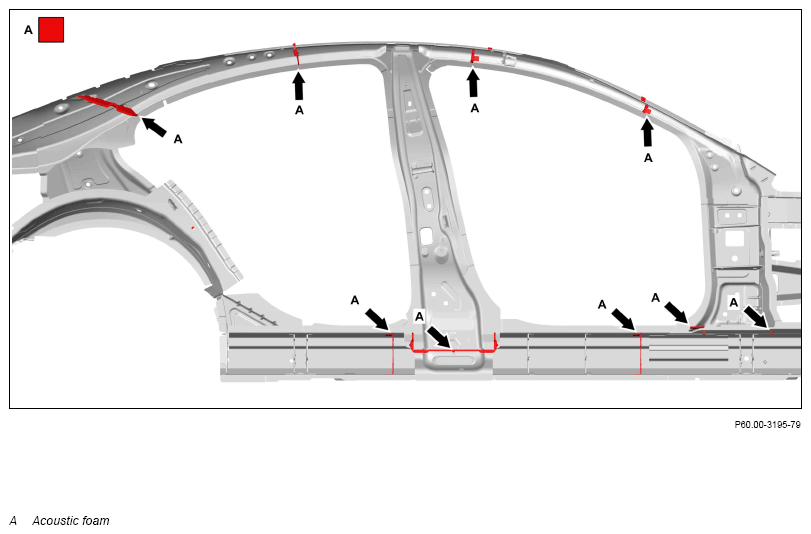

Shown on model 167
Shown on model 167

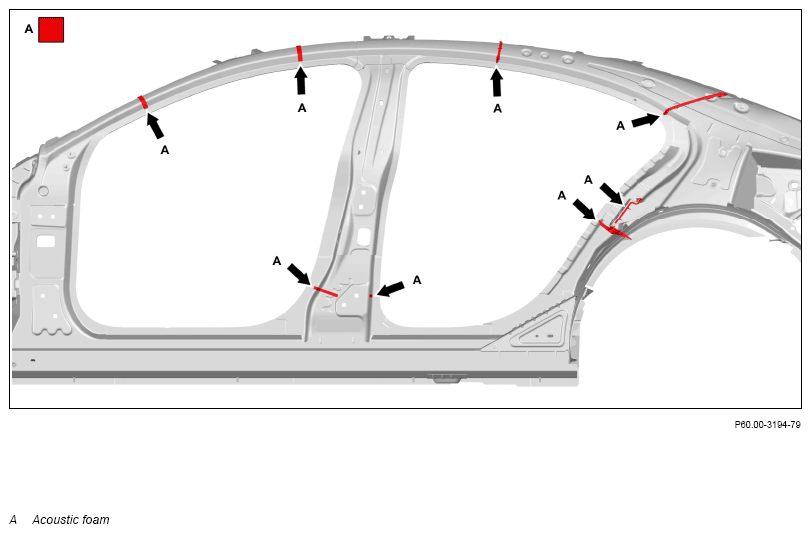

Shown on model 205.0

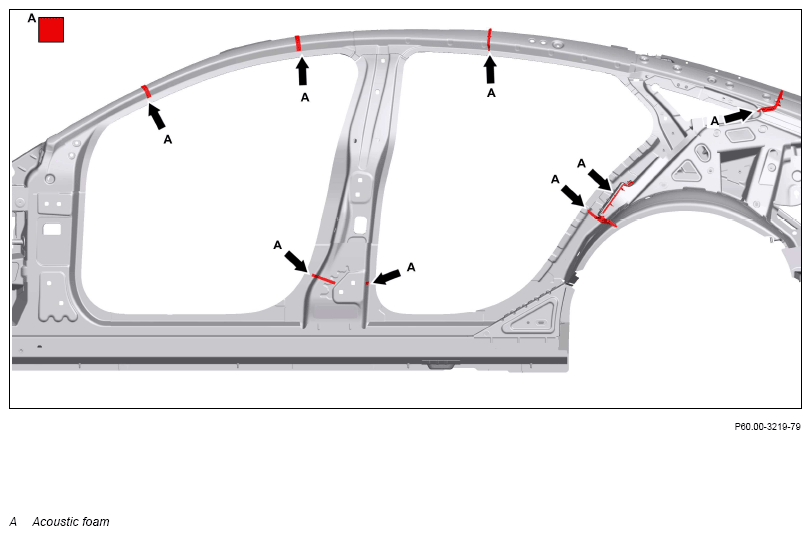

Shown on MODEL 205.2

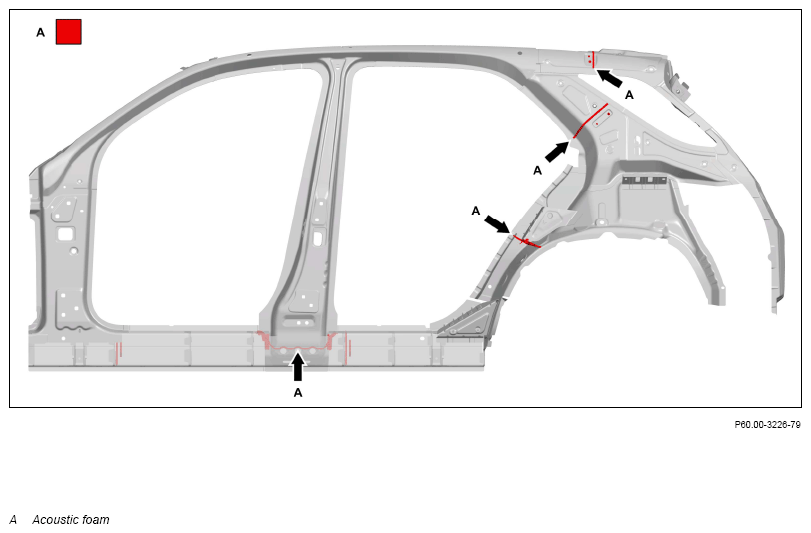

Shown on model 257
Shown on model 257

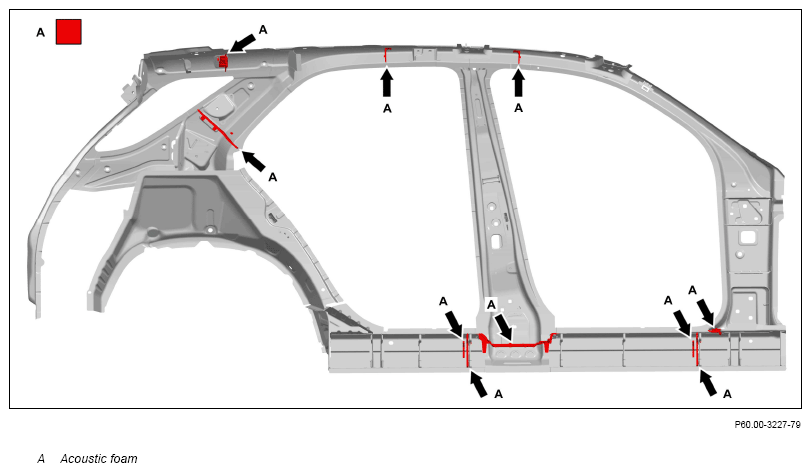

Shown on model 290
Shown on model 290

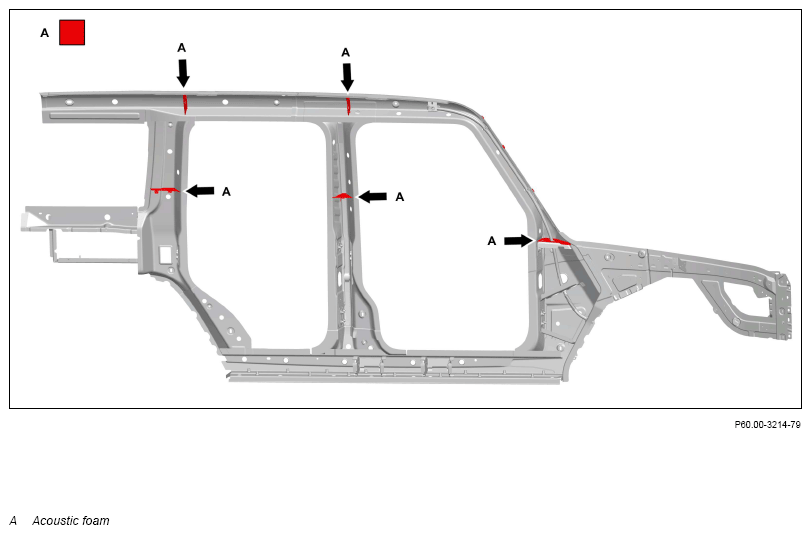

Shown on model 463
Shown on model 463
