Roof Sealing Seam After Repairing - Ar97.10-P-4000-05ME
Model 167
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | White sealing compound, 310 ml, DBL 6069.20 | A 001 989 63 20 |
When sealing seams we differentiate between:
- Smoothing/wiping (A).
- Sealing/spreading (B).

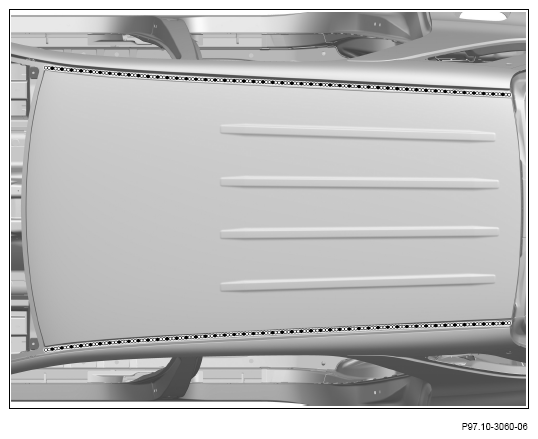

Top center roof paneling area except code 413 (panoramic sliding sunroof)

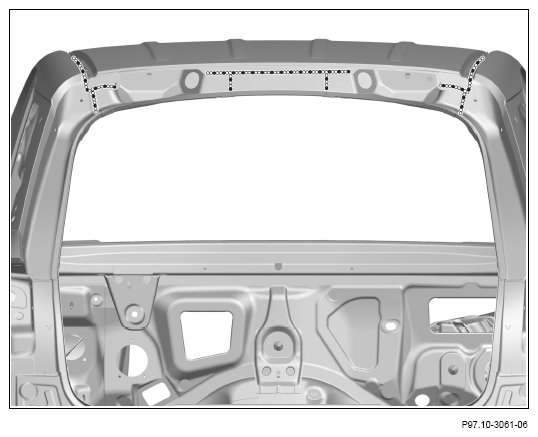

Rear roof paneling area
- Seal connecting flange, spot welds and riveted joints of repaired area with seam sealing material.
Observe standard sealing.
Seal only primed body parts.
Keep seam sealant material away from windows or detachable parts.
It is necessary to seal accessible spot weld flanges on both sides.
