Front End Damage Seam Sealing Following Repair - Ar97.10-P-4000-01ME
Model 167
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | White sealing compound, 310 ml, DBL 6069.20 | A 001 989 63 20 |
When sealing seams we differentiate between:
- Removing/wiping off (A).
- Sealing/spreading (B).

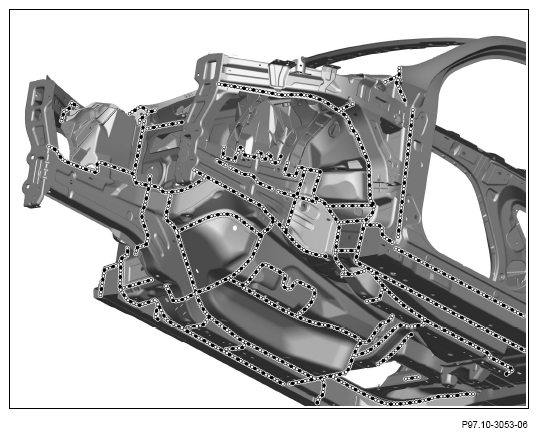

Wheel well area and longitudinal member shown on left side of vehicle

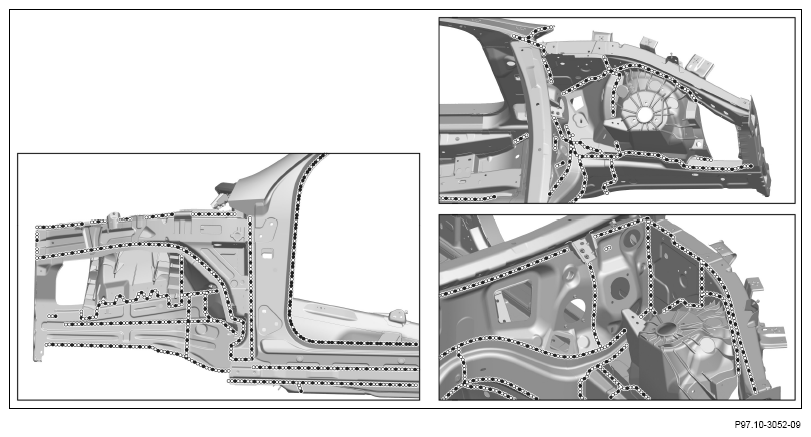

Engine compartment area
- Seal connecting flange, spot welds and riveted joints of repaired area with seam sealing material.
Observe standard sealing.
Seal only primed body parts.
Ensure that the threads on the weld nuts and threaded bolts as well as the drain openings in the contact surfaces for the axle attachments, pulleys or detachable parts are kept free of seam sealing material.
It is necessary to seal accessible spot weld flanges on both sides.
- Insert stop plugs and grommets with seam sealant material.
