TAILLAMP Reinforcement Preparation - Ar63.20-P-2011-02ME (Model 167.1)

Model 167.1

The following operation steps are shown on the left side of the vehicle. In case of damage on the right side of the vehicle, these steps must be performed analogously.

The higher-level service document as well as the safety information in the service document must be observed.

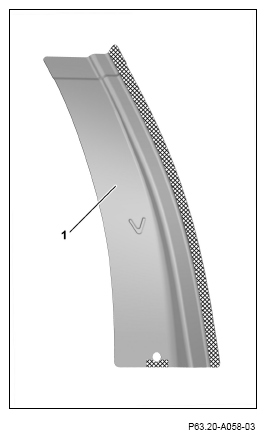

1. Grind mating surfaces on water drain plate (1) down to bare metal in cross-hatched areas.

   Grind spot weld flange down to bare metal.

2. Remove grinding dust.
3. Apply zinc dust paint to the insides of the spot weld flange.

   Courtesy of MERCEDES-BENZ USA

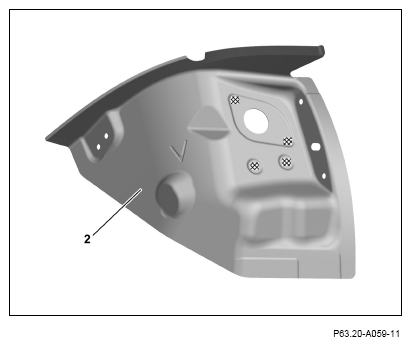

4. Grind mating surfaces on rear lamp reinforcement (2) down to bare metal on both sides in cross-hatched areas.
5. Remove grinding dust.
6. Coat insides of spot weld flanges with zinc dust paint.

   Courtesy of MERCEDES-BENZ USA
