Rear Inner Wheel Well Prepare For Installation - Ar63.10-P-0670-03ME (Model 167.1)

Model 167.1

The following operation steps are shown on the left side of the vehicle. In case of damage on the right side of the vehicle, these steps must be performed analogously.

The higher-level service document as well as the safety information in the service document must be observed.

1. Mark separating point on the striker plate (2) and disconnect (area A).

   Transfer separating point from vehicle.

   Courtesy of MERCEDES-BENZ USA

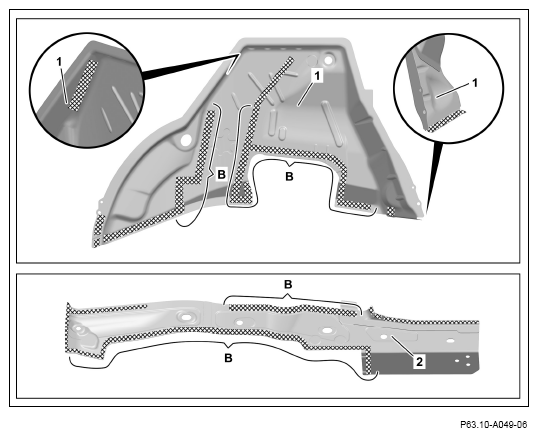

2. Grind mating surfaces on wheel well (1) down to bare metal in crosshatched areas.

   Grind spot weld flanges and plug weld points down to bare metal on both sides.

3. Grind mating surfaces on striker plate (2) down to bare metal in cross-hatched areas.

   Grind spot weld flanges and plug weld points down to bare metal on both sides.

   Grind bonding surfaces on the insides down to bare metal (areas B).

   Observe pretreatment of bonding surfaces.

4. Remove grinding dust.
5. Coat insides of spot weld flanges with zinc dust paint.

   Do not coat bonding surfaces with zinc dust paint (areas B).

   Otherwise adhesion problems may occur.
