TAILLAMP Reinforcement Remove And Installation - Ar63.20-P-2011MEC (Model 167.3)

Model 167.3

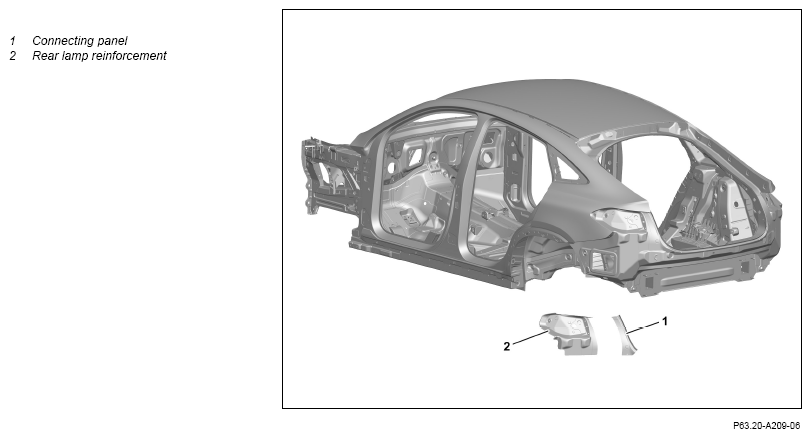

Fig 1: Rear Lamp Reinforcement And Lamp Connecting Panel Component Locations (Model 167.3)
G15038493DANGERWARNINGCAUTIONREMOVINGINSTALLINGDANGERIMPORTANTIMPORTANTCourtesy of MERCEDES-BENZ USA
DANGER Risk of death caused  by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
WARNING Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
Notice Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Notice General information on body repair   AH60.00-P-0001-01KOA
  General information on MB materials   AH98.00-P-9409-03A
REMOVING Remove
1 Remove detachable parts in area of repair point.
2 Cover all detachable parts remaining in vehicle with spark protection blankets.
3 Remove connecting panel (1) and rear lamp reinforcement (2).   AR63.20-P-2011-01MEC
    1K-zinc dust paint *BR00.45-Z-1056-07A
INSTALLING Install
DANGER The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning from inhaling welding gases Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. AS00.00-Z-0007-01A
Notice Measures for preventing damage to components when performing electric welding and soldering work   AH60.00-P-0001-02A
  General information on riveting   AH60.00-P-0003-01N
4 Prepare connecting panel (1) and rear lamp reinforcement (2) for installation.   AR63.20-P-2011-02MEC
    1K-zinc dust paint *BR00.45-Z-1056-07A
5 Install connecting panel (1) and rear lamp reinforcement (2).   AR63.20-P-2011-03MEC
    1K-zinc dust paint *BR00.45-Z-1056-07A
    Blind rivet Y2 6.5X12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) *BR00.45-Z-1012-13A
    Blind rivet Y1 6.4X12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) *BR00.45-Z-1035-13A
    Countersunk-head blind rivet Z1 6.4X14.0 (clamping range 1.5 mm to 3 mm, draw-off strength min. 15.5 kN) *BR00.45-Z-1043-13A
    Countersunk-head blind rivet Z2 6.4X15.5 (clamping range 3 mm to 5 mm, draw-off strength min. 15.5 kN) *BR00.45-Z-1044-13A
6 Clean weld joints and sheet metal flange.
7 Remove spark protection blankets.
8 Clean repair area.
9 Prime repair areas using a primer filler
Notice Notes on paintwork repairs   AH98.00-P-9408-02A
  General information on operation items and work procedures for painting   AH98.00-P-0003-01A
    IMPORTANT Use only primer fillers approved by manufacturer. See guidelines for paint technology in the workshop portal.
10 Seal seam after repair.   AR97.10-P-4000ME
11 Paint repair areas and adjacent surfaces.
Notice Notes on paintwork repairs   AH98.00-P-9408-02A
  General information on operation items and work procedures for painting   AH98.00-P-0003-01A
    IMPORTANT Only use paints approved by the manufacturer. See guidelines for paint technology in the workshop portal.
12 Supplement cavity preservation.   AR97.20-P-1500ME
13 Reinstall detachable parts in area of repair point.
REPAIR MATERIAL

Number Designation Order number
BR00.45-Z-1012-13A Blind rivet Y2 6.5X12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) A 004 990 16 97
BR00.45-Z-1035-13A Blind rivet Y1 6.4X12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) A 000 991 76 32
BR00.45-Z-1043-13A Countersunk-head blind rivet Z1 6.4X14.0 (clamping range 1.5 mm to 3 mm, draw-off strength min. 15.5 kN) A 000 991 82 32
BR00.45-Z-1044-13A Countersunk-head blind rivet Z2 6.4X15.5 (clamping range 3 mm to 5 mm, draw-off strength min. 15.5 kN) A 000 991 83 32
BR00.45-Z-1056-07A 1K-zinc dust paint A 000 986 28 00
