C-Pillar Prepare For Installation - Ar63.20-P-0500-02MEX (Model 167.9)

Model 167.9

The following operation steps are shown on the left side of the vehicle. In case of damage on the right side of the vehicle, these steps must be performed analogously.

The higher-level service document as well as the safety information in the service document must be observed.

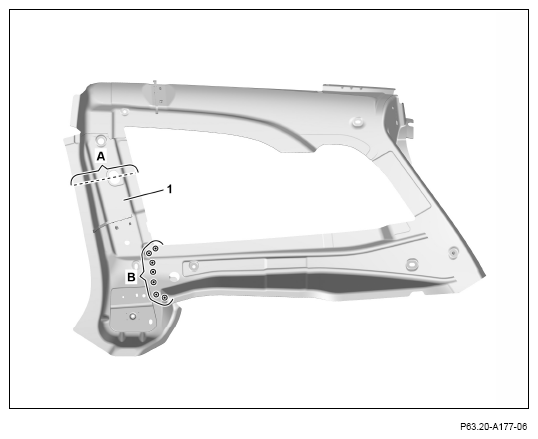

1. Mark separating point on C-pillar (1) and cut (area A).

   Transfer separating point from vehicle.

2. Cut off spot welds on C-pillar (1) (area B).

   Courtesy of MERCEDES-BENZ USA

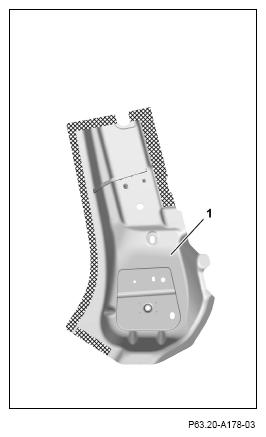

3. Sand mating surfaces on C-pillar (1) down to bare metal in cross-hatched areas.

   Grind spot weld flanges down to bare metal on both sides.

4. Remove grinding dust.
5. Coat insides of spot weld flanges with zinc dust paint.
