Remove/Install Wi-Fi Antenna In Right Of Instrument Panel - AR82.85-P-0014ME
Model 167
MODIFICATION NOTES
| 05.07.2019 | Special tool inserted. | Operation step 3 |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |

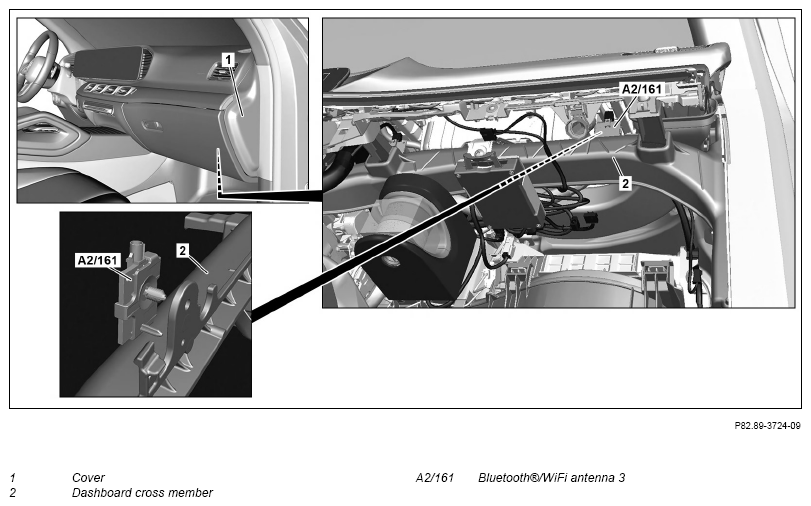

| Fig 1 | |||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove glove box. | AR68.10-P-1400ME | |
| 3 | Unclip Bluetooth®/Wi-Fi antenna 3 (A2/161) from instrument panel crossmember (2). | Fig 1 | |
| 4 | Release and disconnect electrical connector from Bluetooth®/Wi-Fi antenna 3 (A2/161). | ||
| 5 | Install in the reverse order. |
