Remove/Install Washer Fluid Reservoir Heat Exchanger - AR82.35-P-6006ME

Model 167

With Code 874 (MAGIC VISION CONTROL incl. heated windshield washer system)

Model 167

With Code 875 (Heated windshield washer system)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of fire and explosion  caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning  caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury  or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin.	Wear protective clothing and tight-fitting safety glasses. No open flames, fire or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of the reach of children.	AS82.35-Z-0001-01A
	Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
Notice	Notes on coolant		AH20.00-P-2080-01KOA
Notice	Notes on coolant	Model 167 with engine 176, 177, 256, 274, 654 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system) Model 167 with engine 176, 177, 256, 274, 654 with code 875 (Heated windshield washer system)	AH20.00-P-2080-01KOA
	Remove/install
1	Open cap of coolant expansion reservoir slowly, release pressure and remove.	Correct coolant level.

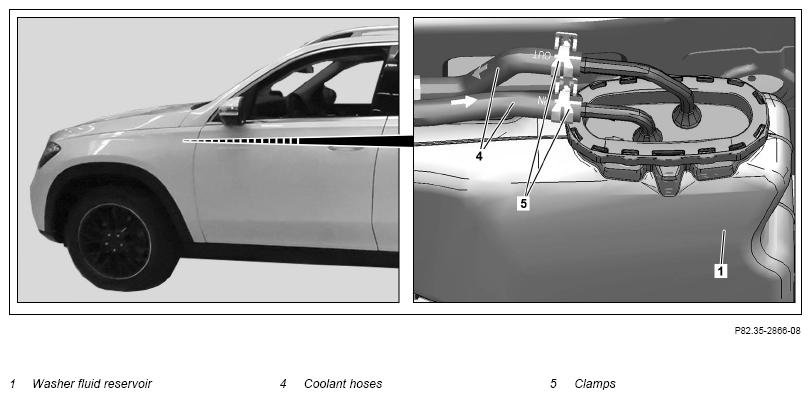

2	Remove washer fluid reservoir (1).		AR82.35-P-6000ME
3	Unclip cap (2).

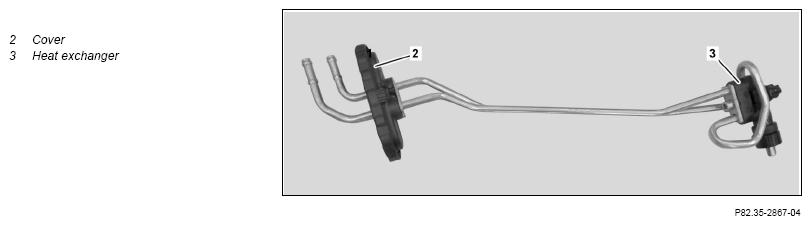

4	Guide heat exchanger (3) out of washer fluid reservoir (1).
5	Disconnect coolant hoses (4).	Clamp	Fig 2
6	Loosen clamps (5) and detach coolant hoses (4).	Observe markings on hose and cap (2). The feed line and return line must not be swapped. Collect escaping coolant in suitable container.
		Hose clamp pliers	Fig 1
7	Detach cap (2).	When replacing the heat exchanger (3).
8	Install in the reverse order.

Fig 1: Identifying Hose Clamp Pliers (454 589 00 37 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Clamp (000 589 40 37 00)

Courtesy of MERCEDES-BENZ USA
