Remove/Install Telephone Antenna Splitter - AR82.70-P-8956ME

Model 167

With Code 380 (Car telephony package)

With Code B24 (Remote control for Auxiliary heating)

Model 167

With Code 899 (Multifunction telephony)

With Code B24 (Remote control for Auxiliary heating)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove front seats.		AR91.10-P-1000ME
2	Remove center console.		AR68.20-P-2000ME

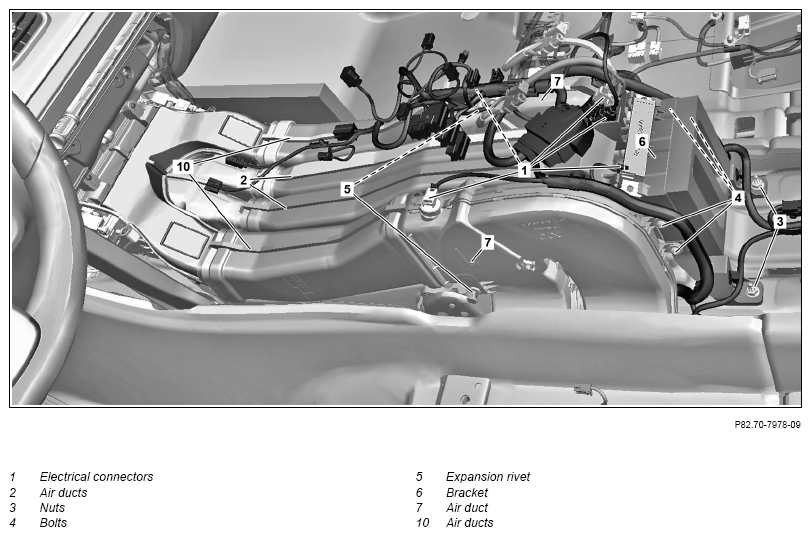

3	Release and disconnect electrical connections (1).	The number of electrical connectors (1) varies depending on the vehicle equipment.
4	Unscrew nuts (3).
5	Unscrew bolts (4).
6	Unclip expansion rivets (5).	Dismantling tool	Fig 1
7	Remove bracket (6) together with air ducts (2)
8	Raise respective floor covering and remover ducts (7, 10).	Ensure correct positioning of the air ducts (7) under the floor coverings.
9	Raise damping (8).

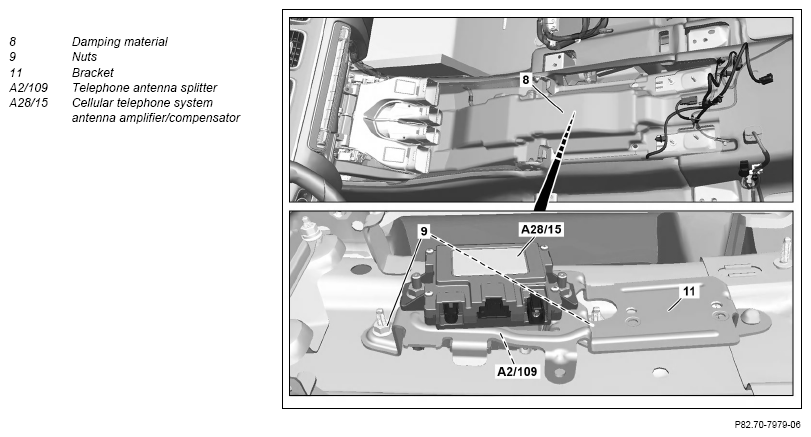

10	Release and disconnect electrical connectors at antenna amplifier/compensator of cellule telephone system (A28/15).	The number of electrical connectors varies according to vehicle equipment.
11	Unscrew nuts (9).
12	Remove holder (11) and release and disconnect electrical connector at telephone antenna splitter (A2/109).	Do not crush or kink or subject electric lines to tension. This will result in damage to the electric lines and can impair their function.
13	Unclip telephone antenna splitter (A2/109) from holder (11).
14	Install in the reverse order.

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)
