Remove/Install Telephone Antenna - AR82.62-P-0011ME
Model 167
With Code 274 (Telephone antenna)
Shown on left outside mirror (M21/1)
Shown on left outside mirror (M21/1)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove left outside mirror (M21/1) or right outside mirror (M21/2). | AR88.70-P-9000ME | |
| 2 | Remove outside mirror trim. | AR88.70-P-9040ME | |

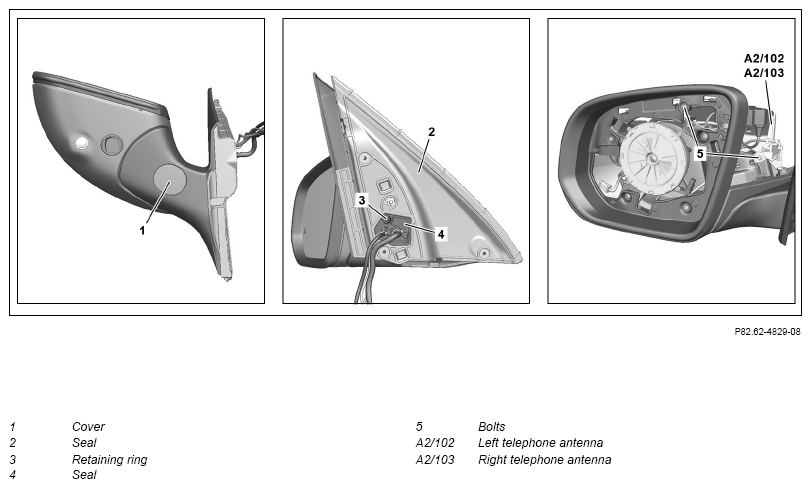

| 3 | Unclip cover (1) with a suitable tool. | ||
| 4 | Remove seal (2). | ||
| 5 | Remove circlip (3). | ||
| 6 | Remove seal (4) far enough that the electric lines are accessible. | Do not crush or kink or subject electric lines to tension. This will result in damage to the electric lines and can impair their function. |
|
| 7 | Remove bolts (5). | ||
| 8 | Locate and expose electric line of telephone antenna (A2/102 or A2/103). | ||

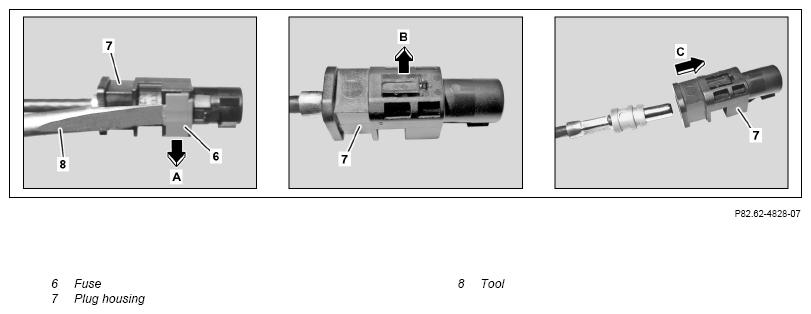

| 9 | Remove retainer (6) at plug housing (7) of electric line of telephone antenna (A2/102 or A2/103) with a suitable tool (8) (arrow A). | ||
| 10 | Release plug housing (7) (arrow B) and disconnect (arrow C). | ||

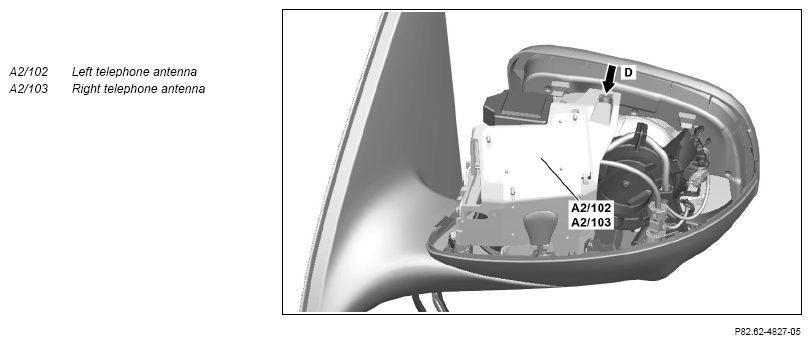

| 11 | Unclip telephone antenna (A2/102 or A2/103) (arrow D) and remove upward with electric line. | Do not crush or kink electric line or subject it to tension. This will result in damage to the electric line and can impair its functional capability. |
|
| 12 | Install in the reverse order. |
