Remove/Install TV Antenna Amplifier Under Left A-Pillar Trim - AR82.62-P-8308ME
Model 167
With Code 865 (digital TV)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove trim from A-pillar at left. | AR68.30-P-4050ME | |

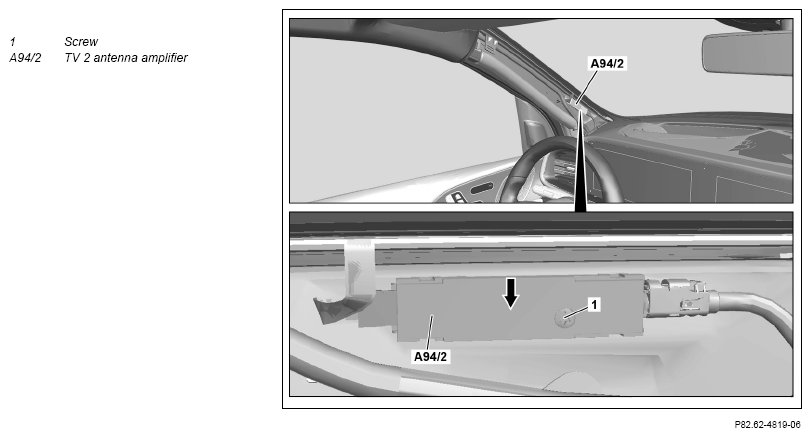

| 3 | Unscrew bolt (1). | ||
| 4 | Unclip TV 2 antenna amplifier (A94/2). | Fig 1 | |
| 5 | Release and disconnect electrical connectors on TV 2 antenna amplifier (A94/2). | ||
| 6 | Install in the reverse order. |
