Remove/Install Speaker In Front Door - AR82.62-P-7846ME
Model 167
MODIFICATION NOTES
| 21.01.2019 | Operation steps added. | Operation step 4.1, 4.2, 5. |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove door trim. | AR72.10-P-6575ME | |
| 2 | Release and disconnect electrical connectors (3). | ||
| 3 | Remove bolts (1). | ||
| 4.1 | Remove trim strip (2) with switch modules. | Model 167 except code 876 (Interior Light package) |
|
| 4.2 | Remove trim strip (2) with switch modules until fiber-optic cable with electrical connection is accessible. | Model 167 with code 876 (Interior Light package) Do not crush or kink or subject electric lines to tension. This will result in damage to the electric lines and can impair their function. |
|
| 5 | Detach fiber-optic cable from trim strip (2) and remove trim strip (2). | Model 167 with code 876 (Interior Light package) |
|

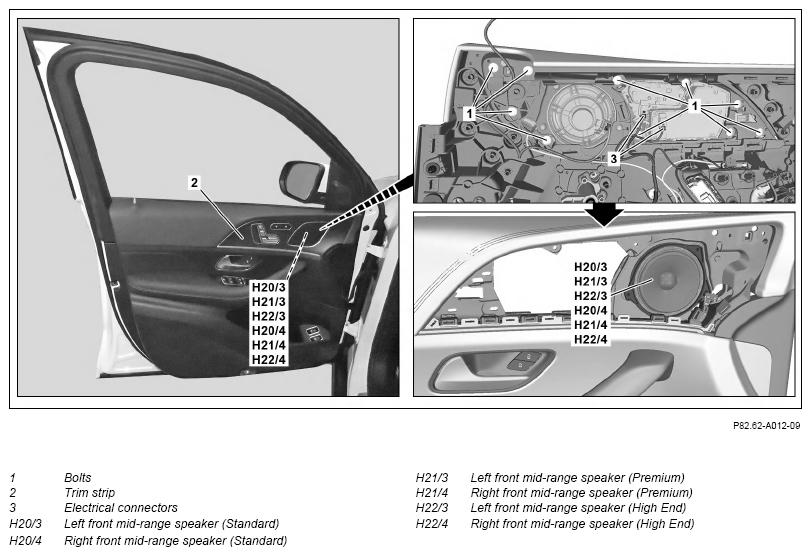

| 6 | Remove front mid-range speaker (H20/3, H20/4, H21/3, H21/4, H22/3 or H22/4). | Fig 1 | |
| 7 | Install in the reverse order |
