Remove/Install SDARS Antenna - AR82.62-P-0015ME
Model 167.1/9
With Code 536 (Sirius satellite radio complete system)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove upper liftgate trim. | AR72.20-P-6631ME | |

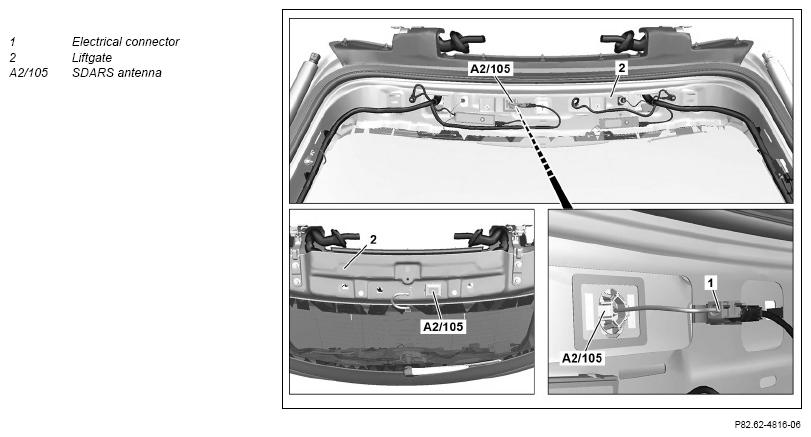

| 3 | Release and disconnect electrical connector (1) of SDARS antenna (A2/105). | ||
| 4 | Remove upper rear spoiler. | AR72.20-P-4000ME | |
| 5 | Unclip SDARS antenna (A2/105) from liftgate (2). | ||
| 6 | Install in the reverse order. |
