Remove/Install Passenger Side Footwell Woofer - AR82.62-P-7823ME
Model 167
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||

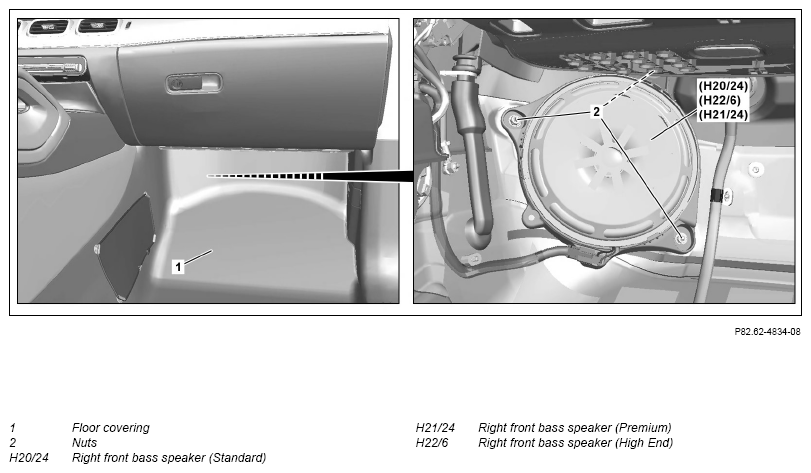

| 2 | Loosen floor covering (1) in front passenger footwell at front until front right bass speaker (High-end) (H22/6) or front right bass speaker (Premium) (H21/24) or front right bass speaker (basic) (H20/24) is accessible. | AR68.80-P-0008ME | |
| 3 | Release and disconnect electrical connector from front right bass speaker (H22/6 or H21/24 or H20/24). | ||
| 4 | Unscrew nut (2) at front right bass speaker (H22/6 or H21/24 or H20/24). | ||
| 5 | Remove front right bass speaker (H22/6 or H21/24 or H20/24). | ||
| 6 | Install in the reverse order. |
