Remove/Install Outer Mirror Ambient Lamp - AR82.10-P-0001ME
Model 167
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

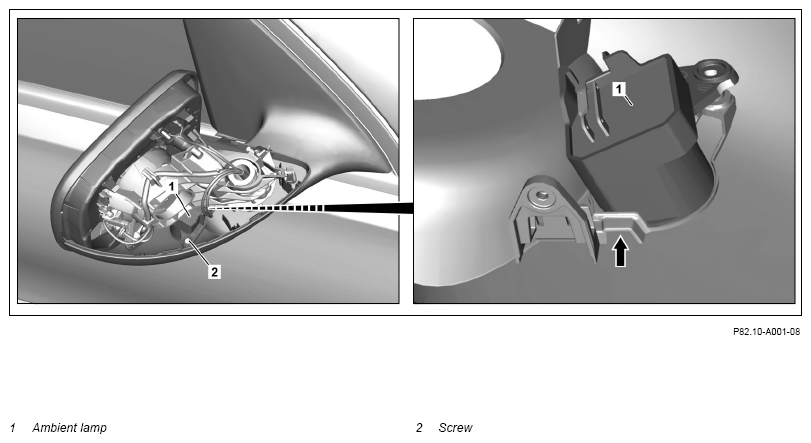

| 1 | Remove left or right outside mirror trim. | AR88.70-P-9040ME | |
| 2 | Remove screw/bolt (2). | ||
| 3 | Remove telephone antenna (A2/102 or A2/103). | Model 167 with code 274 (Telephone antenna) |
AR82.62-P-0011ME |
| 4 | Remove ambient lamp (1) until the electrical connector is accessible. | ||
| 5 | Release and disconnect electrical connector from ambient lamp (1). | ||
| 6 | Install in the reverse order. |
